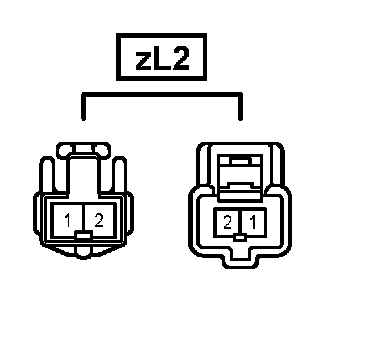

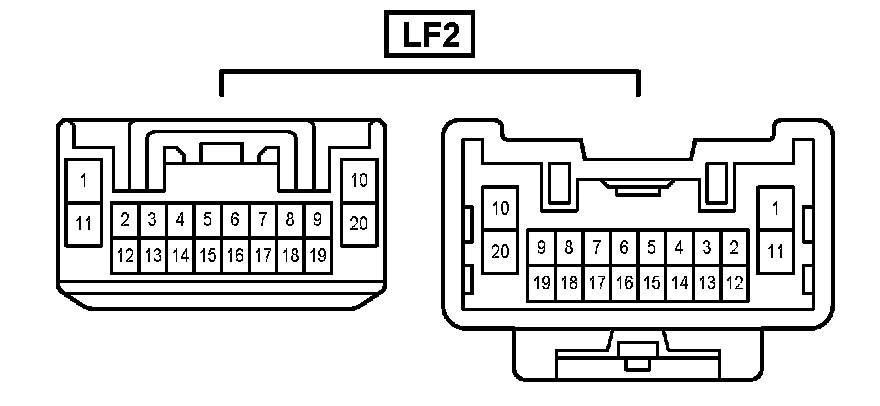

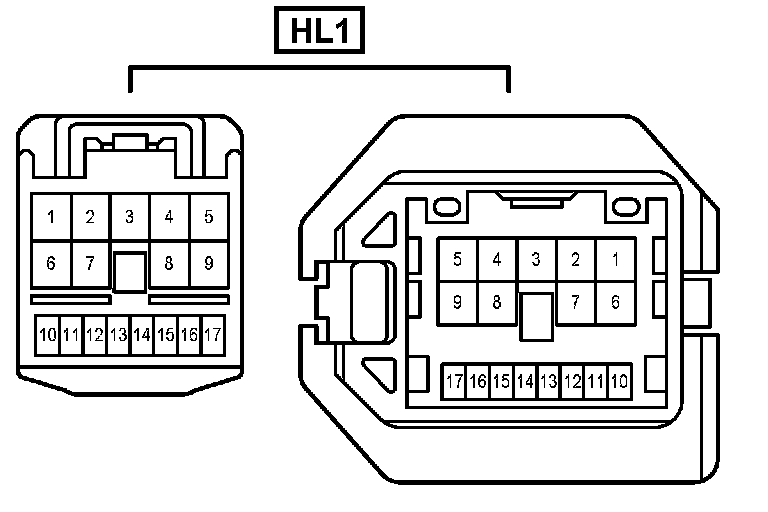

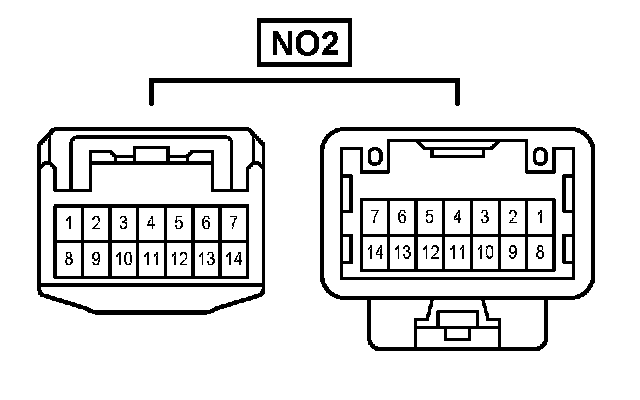

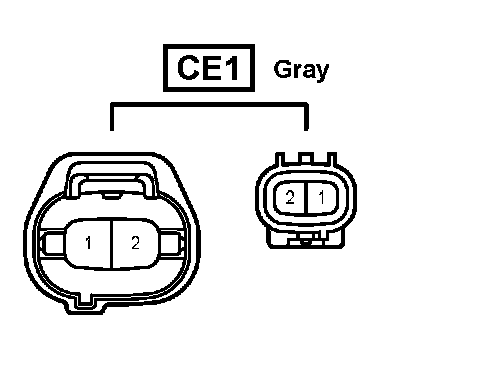

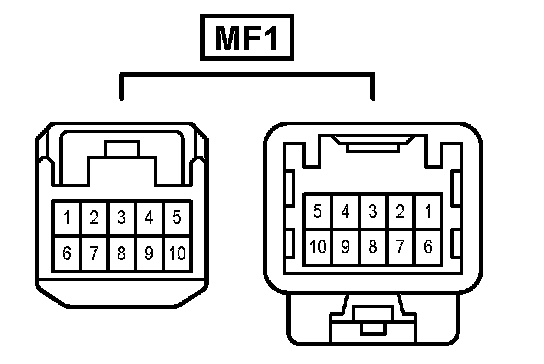

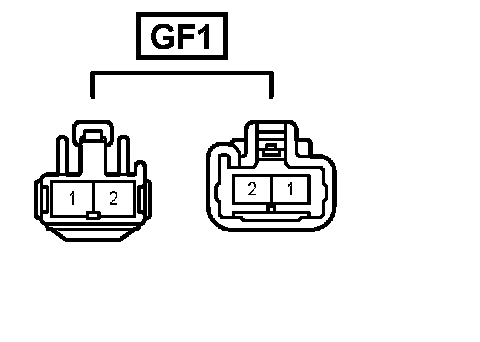

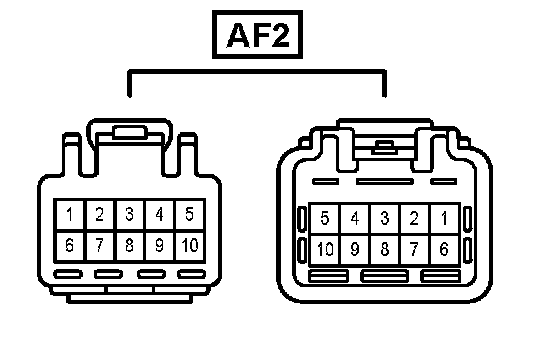

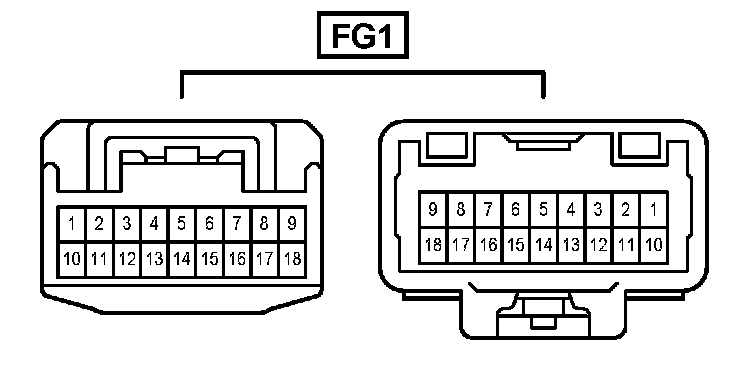

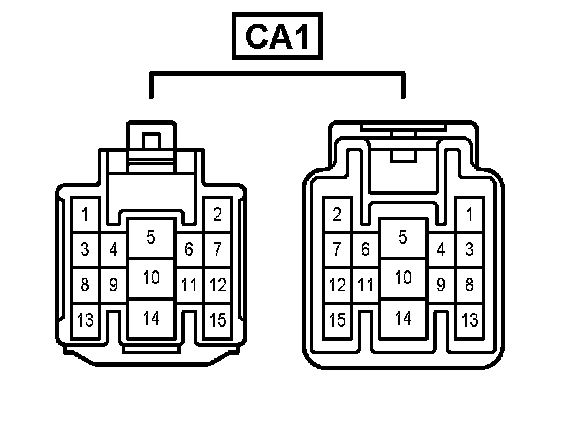

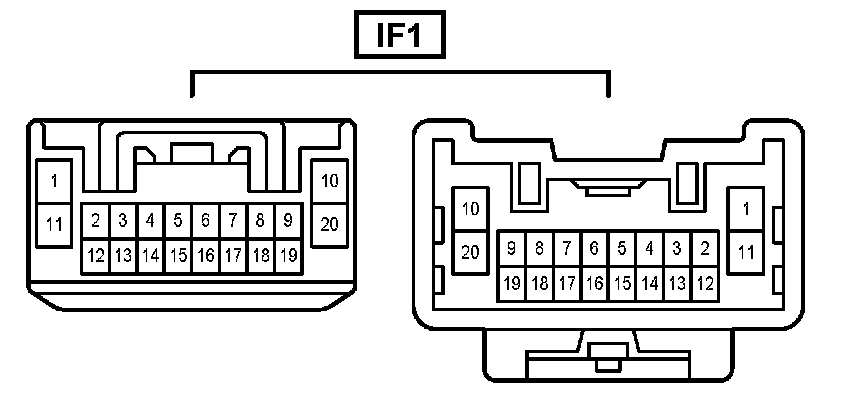

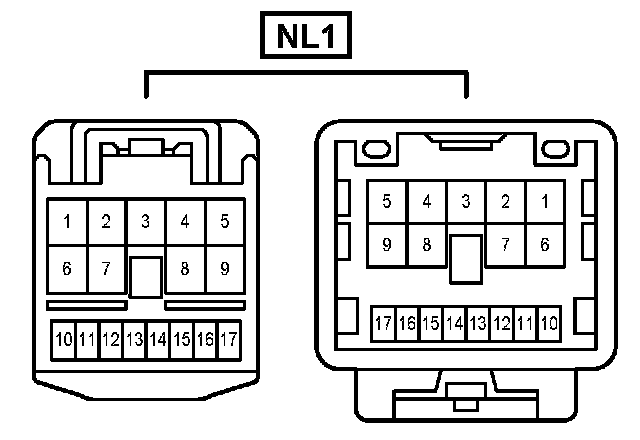

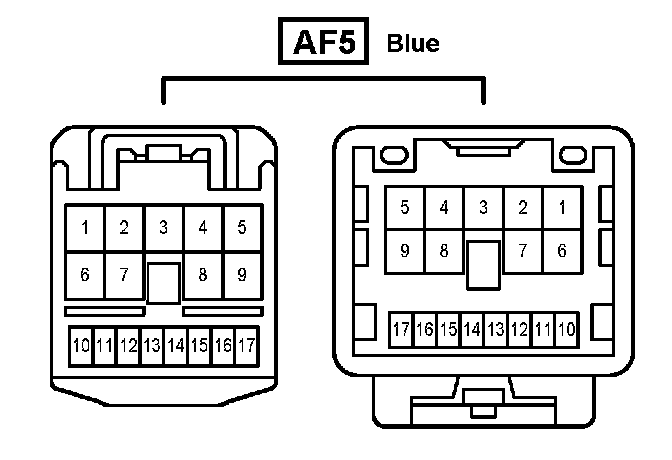

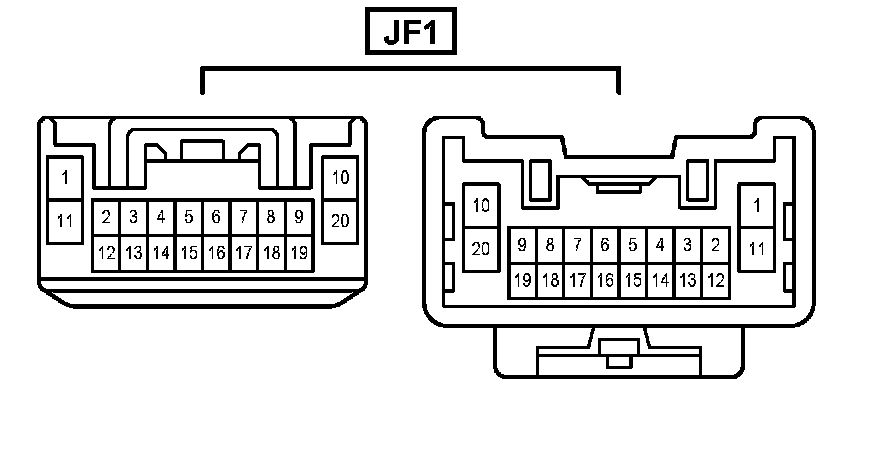

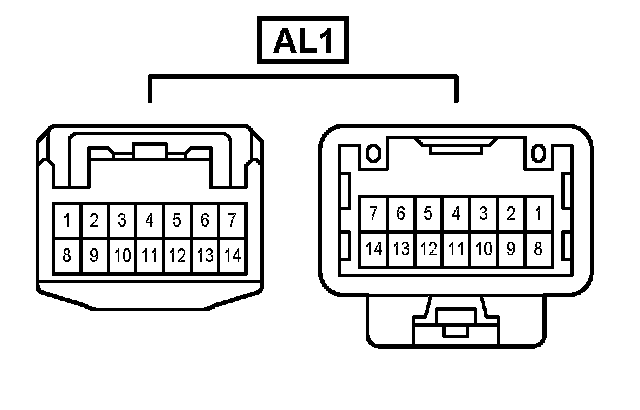

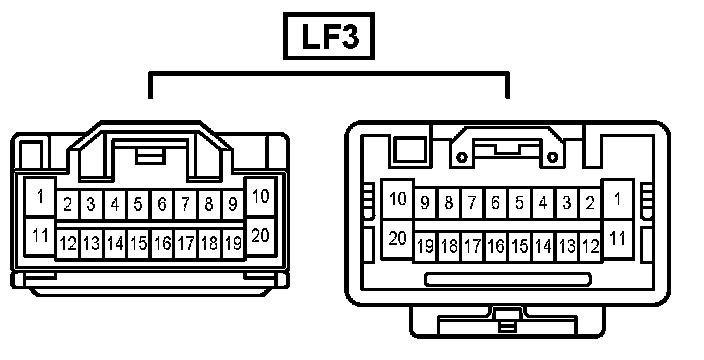

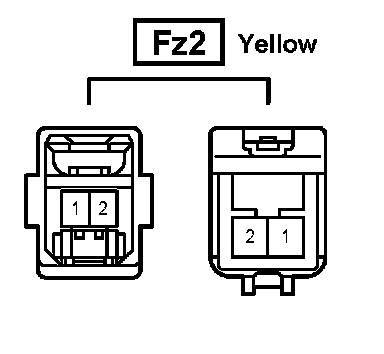

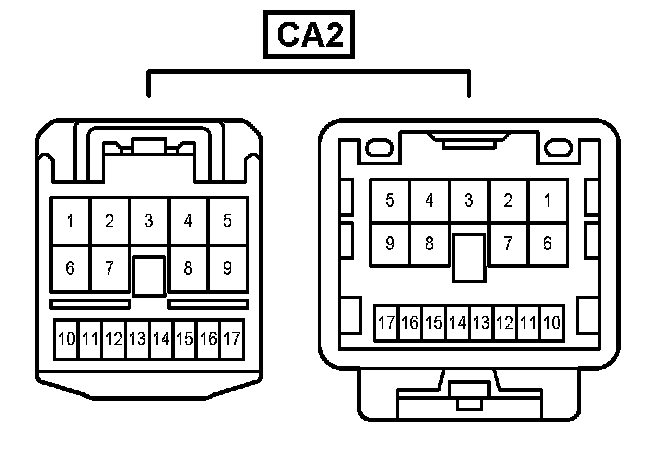

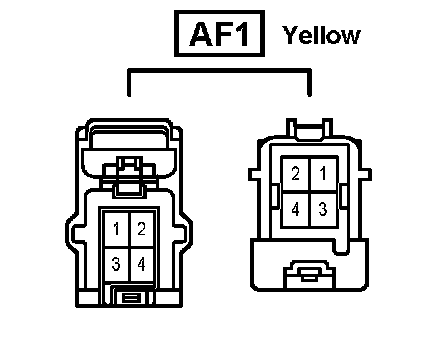

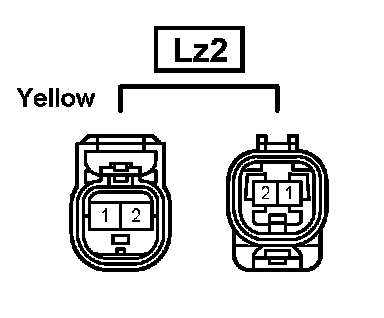

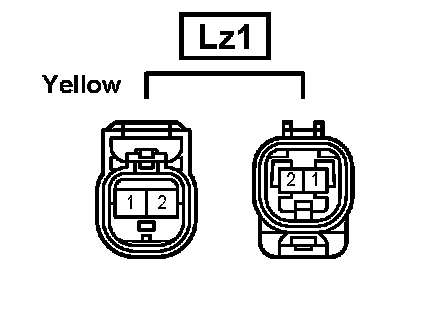

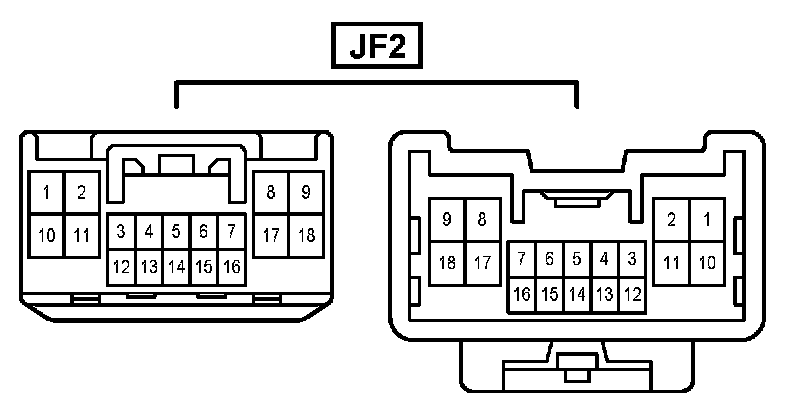

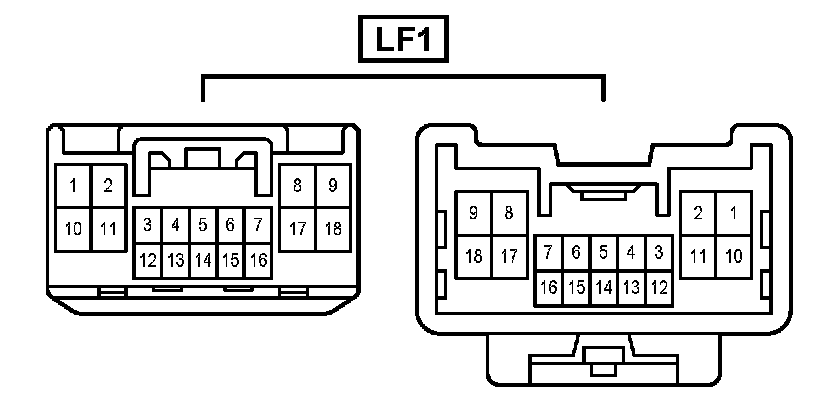

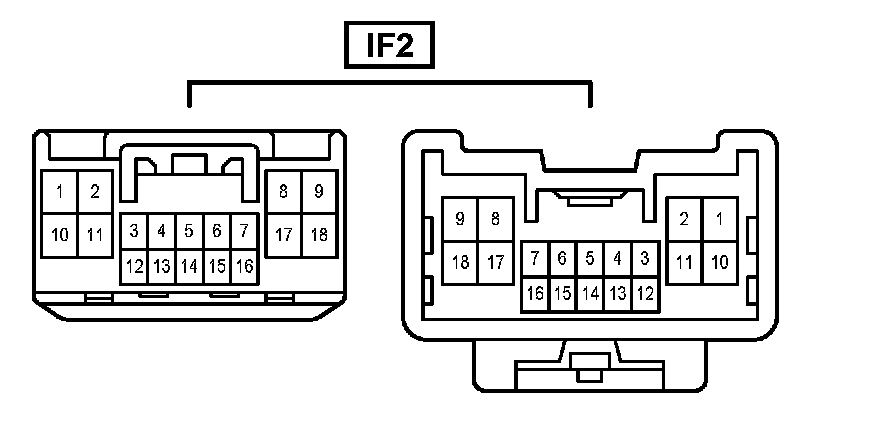

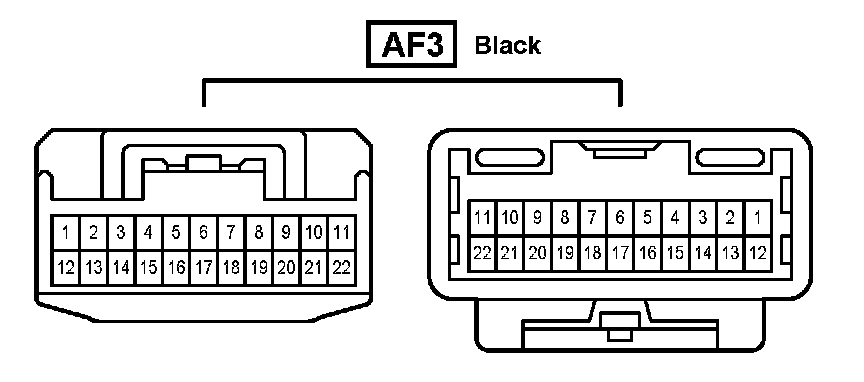

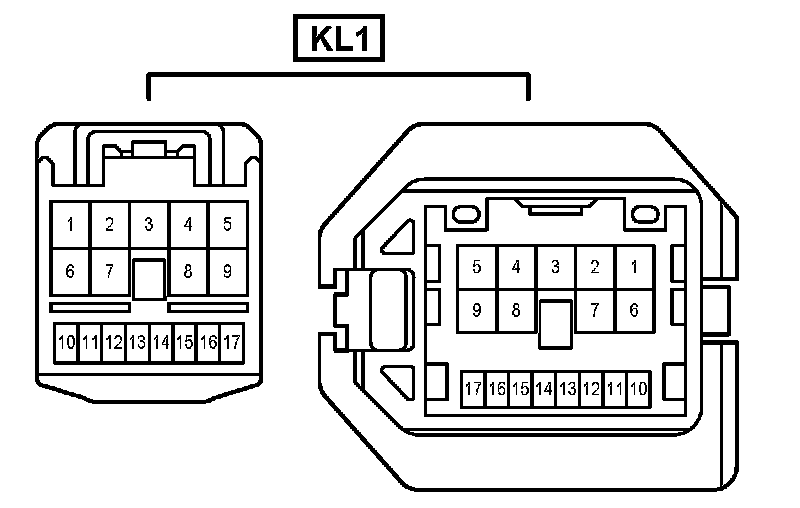

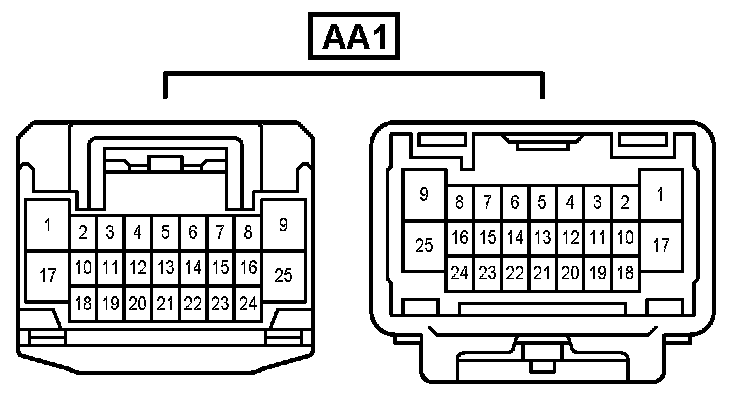

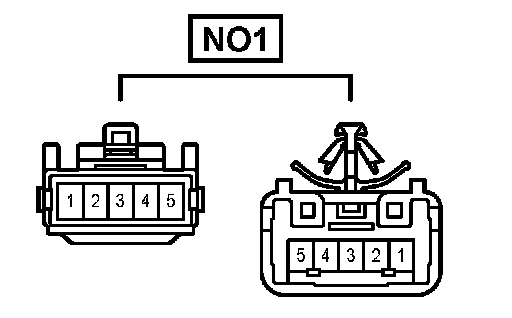

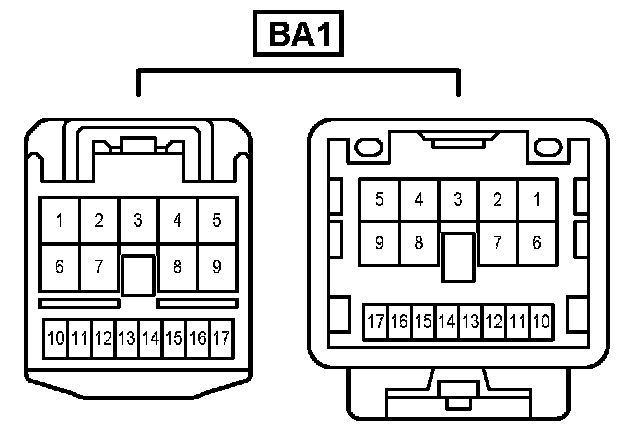

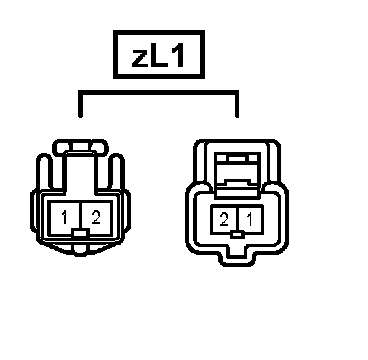

Junction Connectors (Wire Harness)

On Left: Female Connector Shapes
On Right: Male Connector Shapes

Connector colors:

Black





Gray








Blue





Yellow

















Connectors with no indicated colors are white in color
