28 - 29 - Instrument Panel J/B Assembly - Lower Finish Panel
28 - 29 - Instrument Panel J/B Assembly - Lower Finish Panel

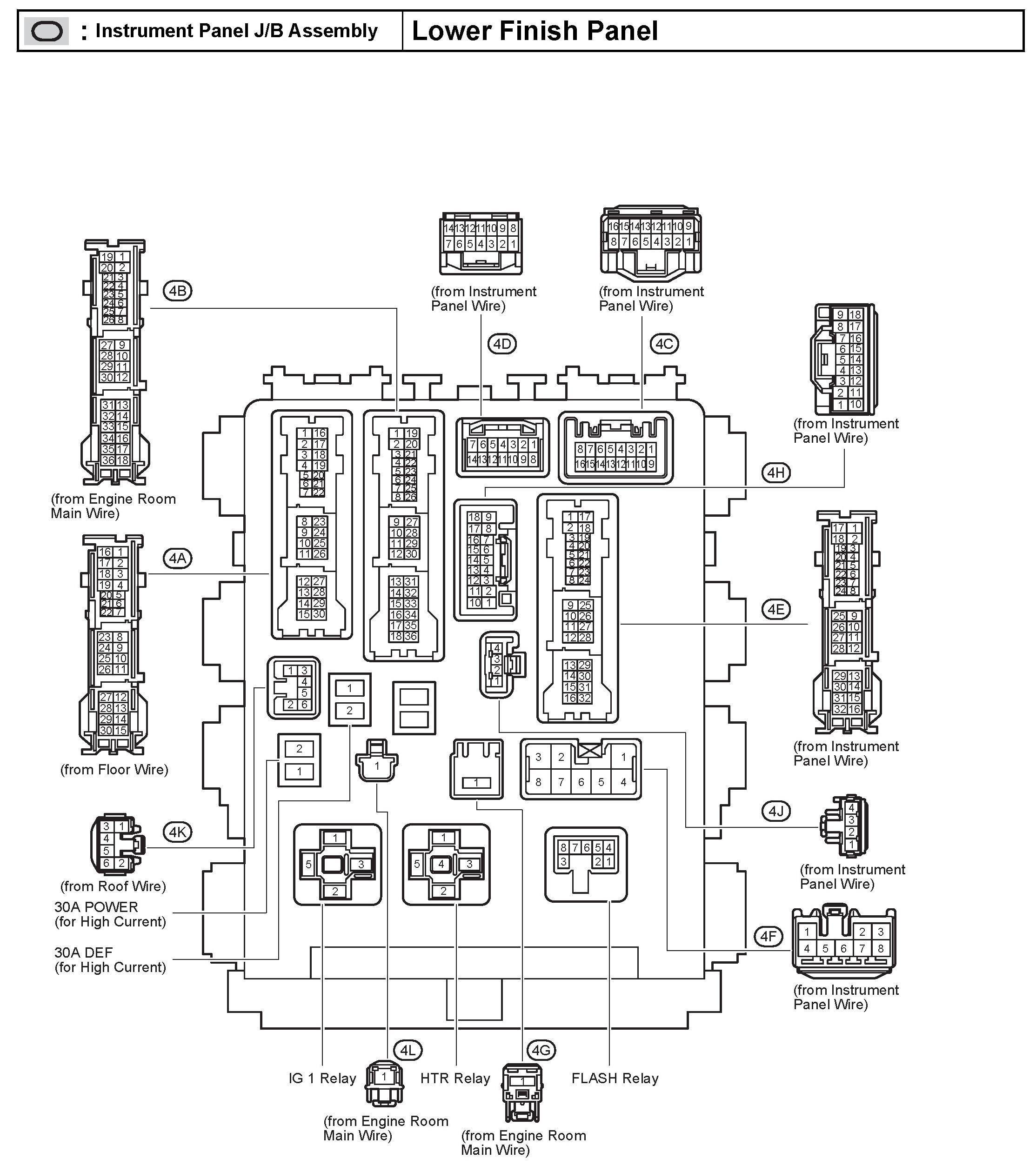

Instrument Panel J/B Assembly - Lower Finish Panel:

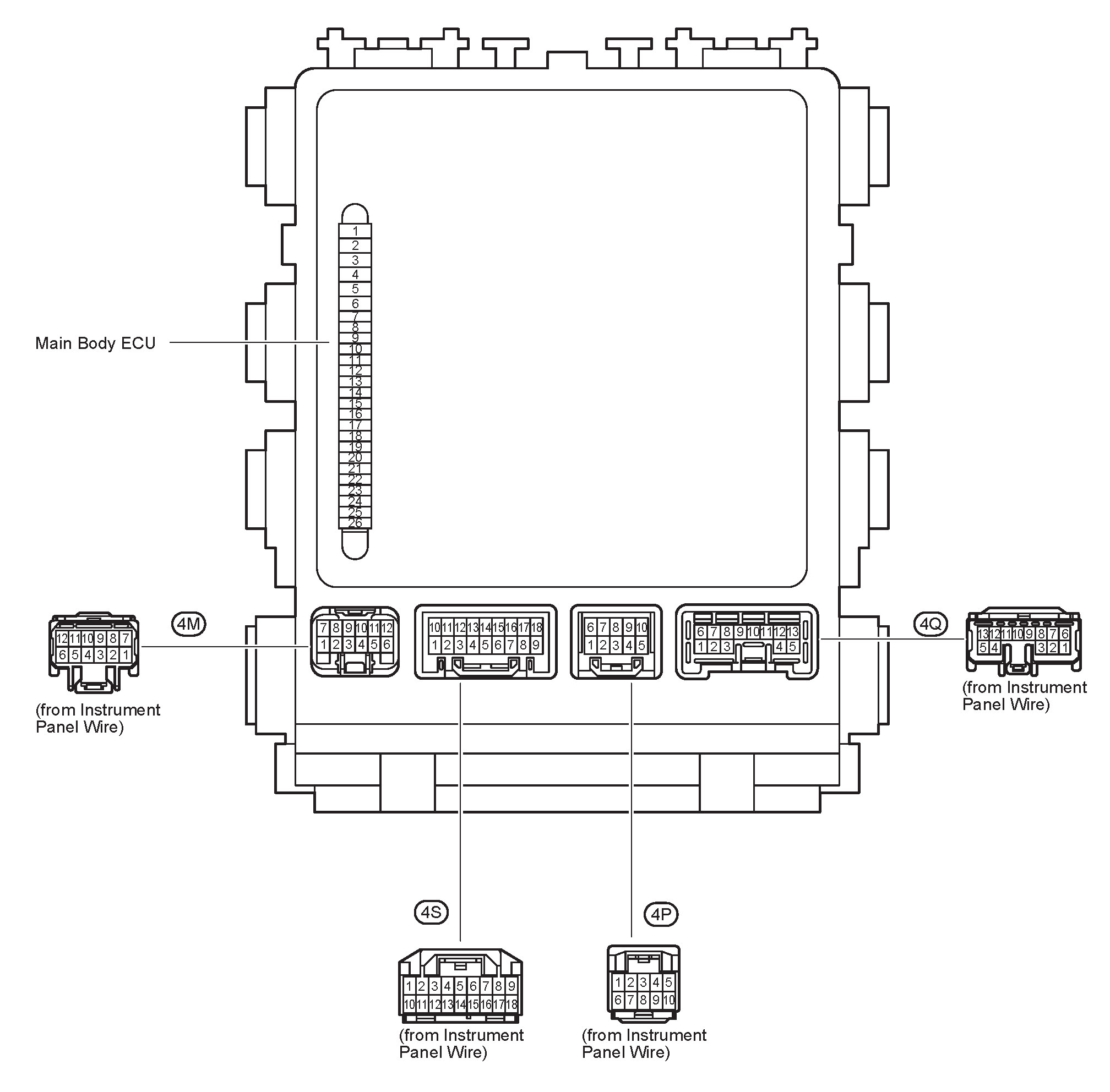

Instrument Panel J/B Assembly - Lower Finish Panel:
