46 - 47 - Position of Parts In Instrument Panel
46 - 47 - Position of Parts In Instrument Panel

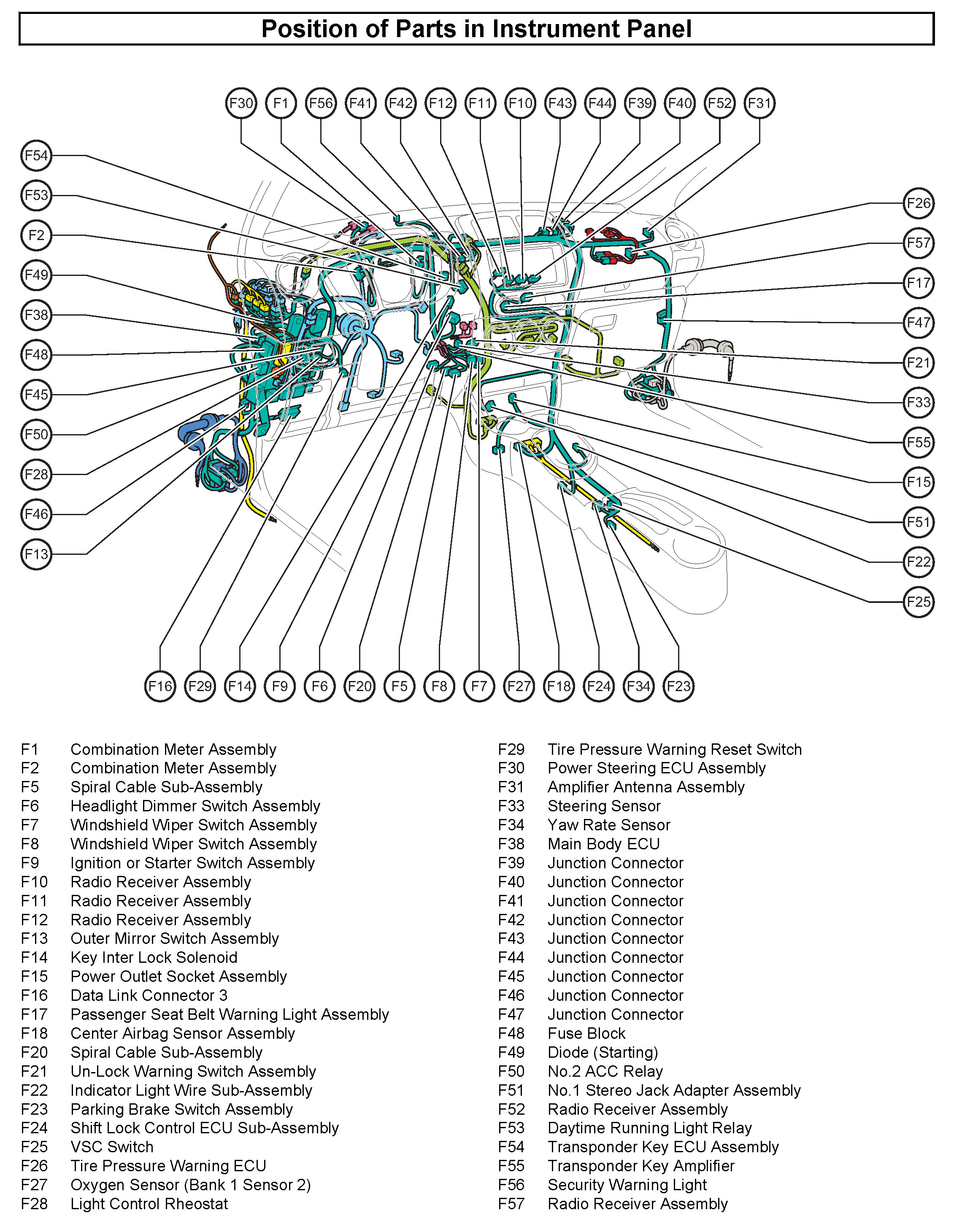

Position of Parts in Instrument Panel:

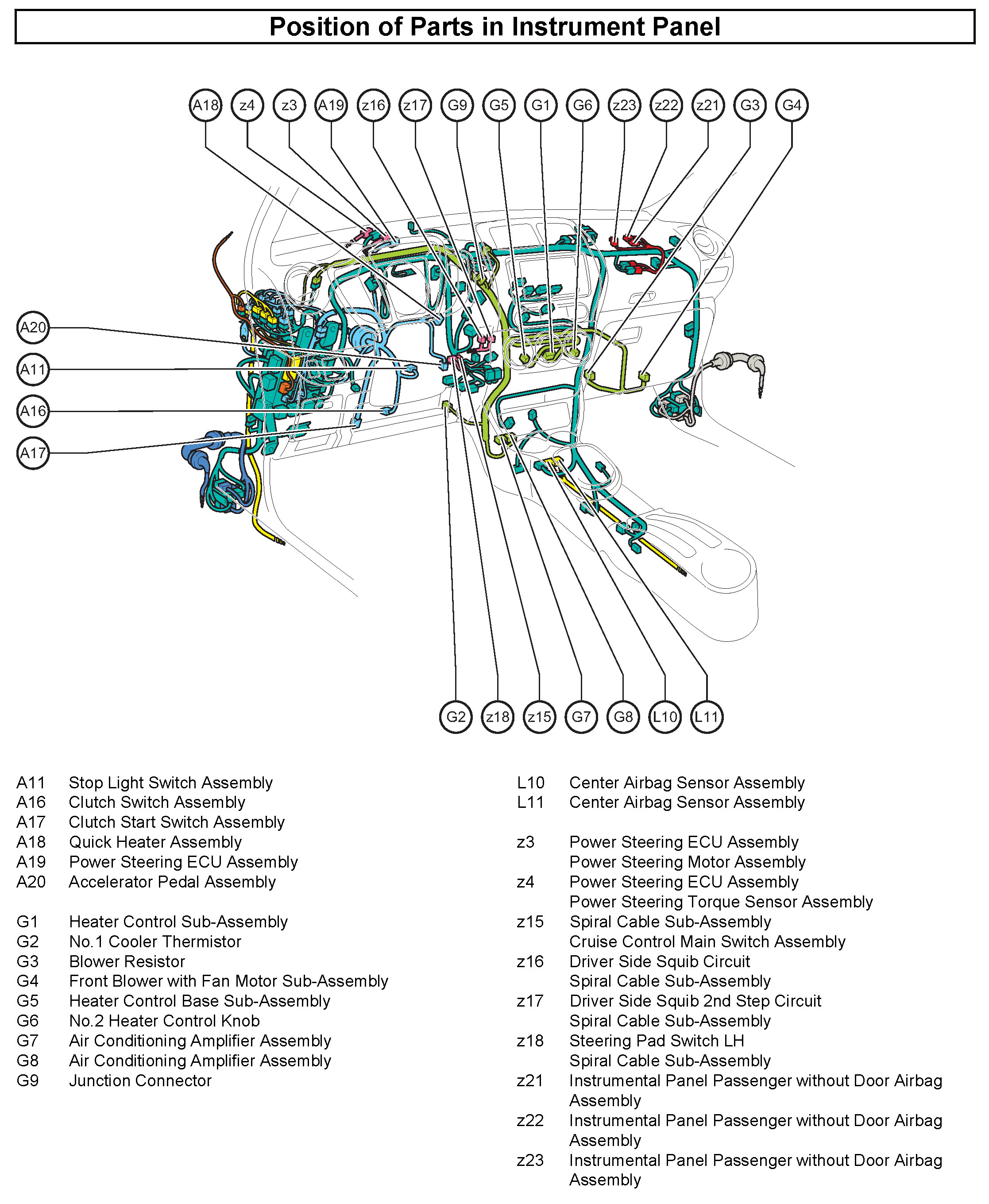

Position of Parts in Instrument Panel:
