44 - 45 - Position of Parts in Engine Compartment
44 - 45 - Position of Parts in Engine Compartment

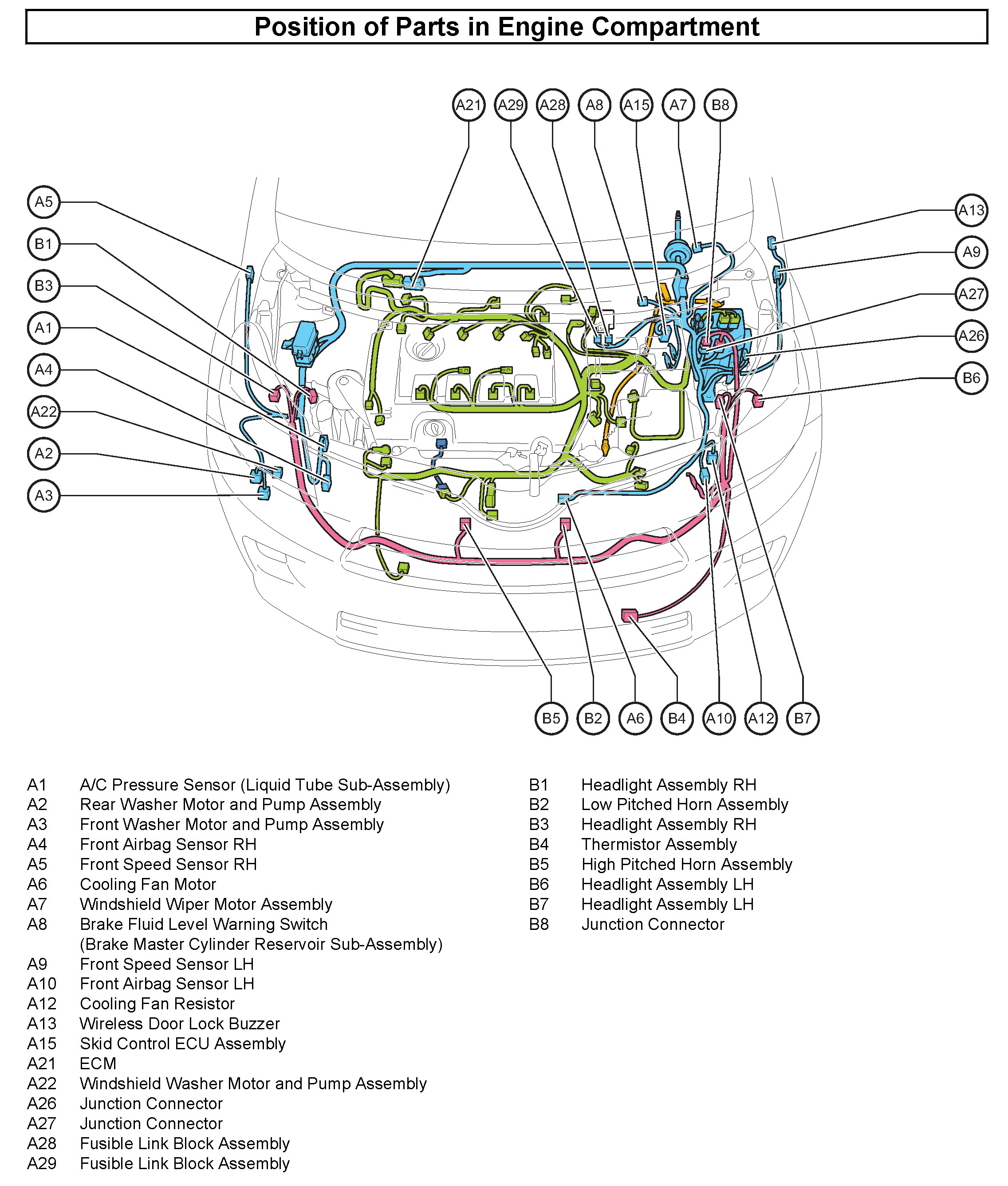

Position of Parts in Engine Compartment:

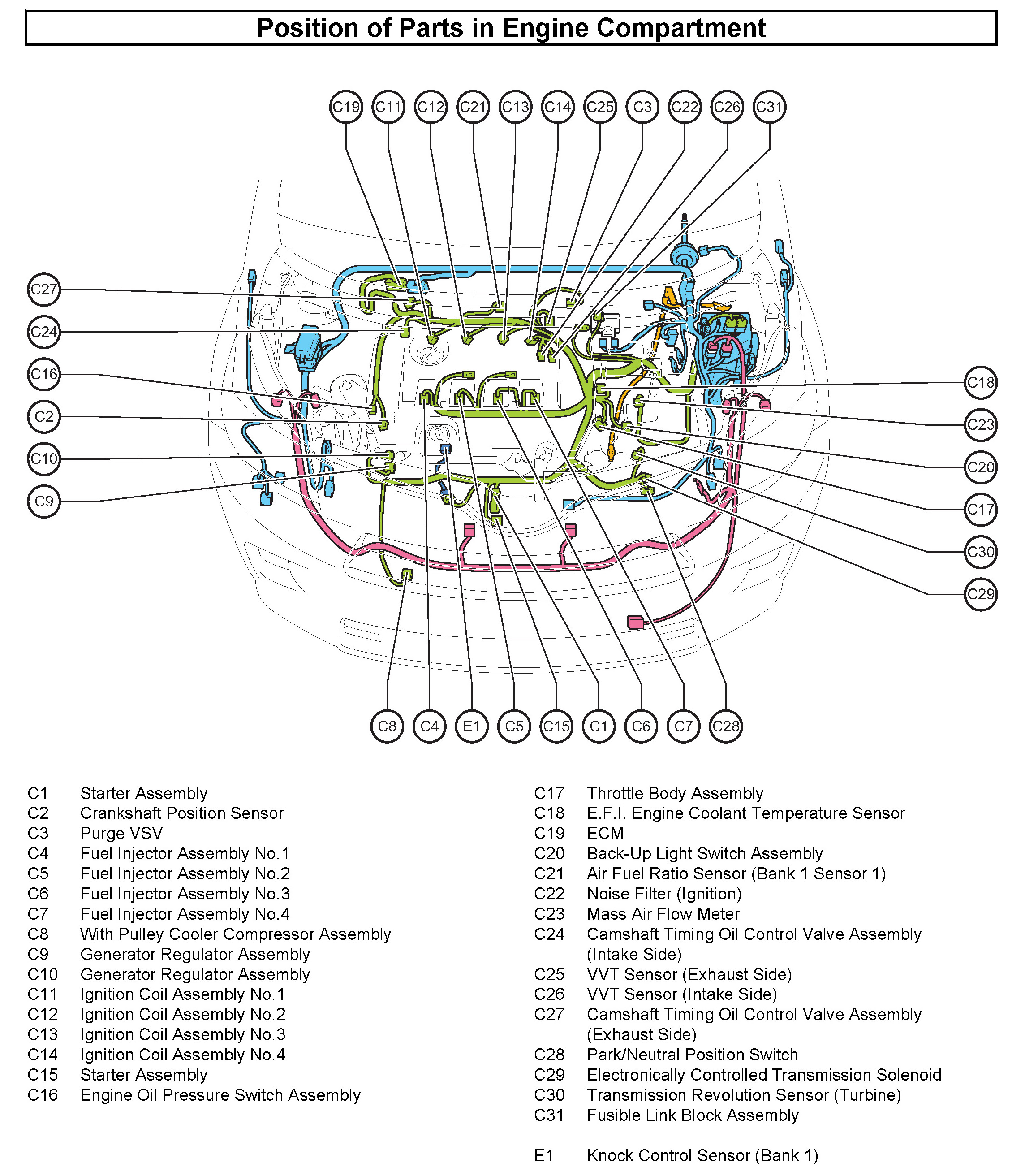

Position of Parts in Engine Compartment:
