Alignment

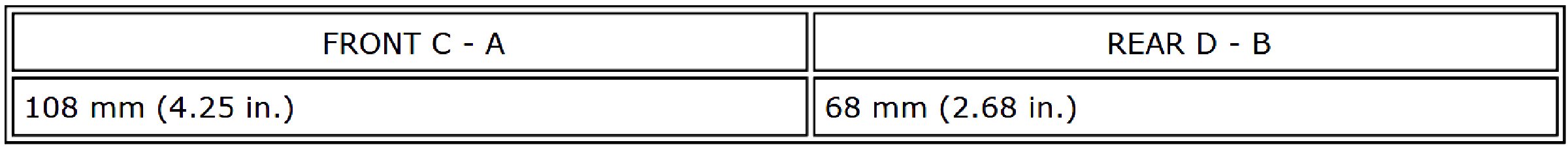

Standard Vehicle Height (Unloaded Vehicle):

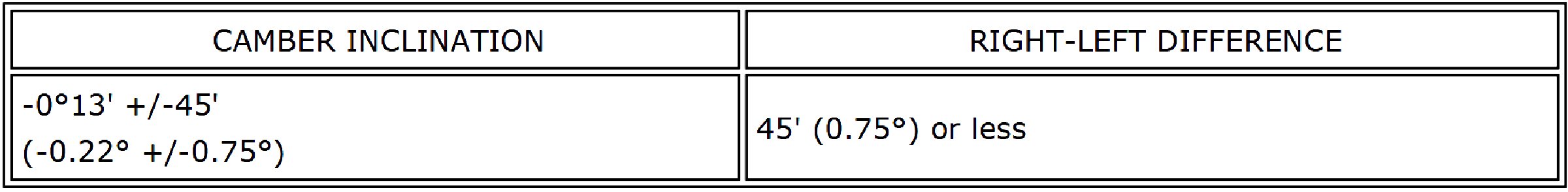

Standard Camber Inclination (Unloaded Vehicle):

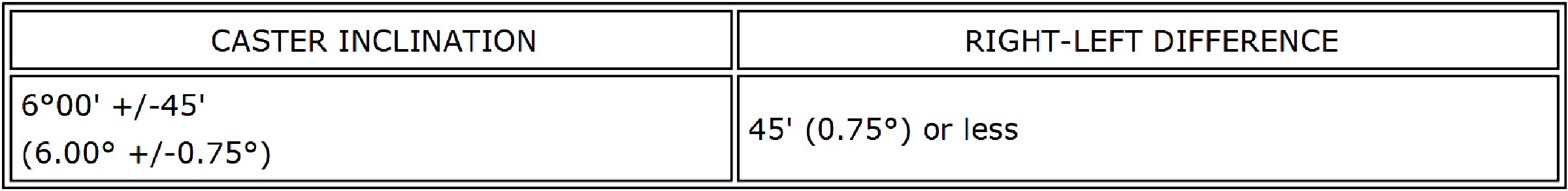

Standard Caster Inclination (Unloaded Vehicle):

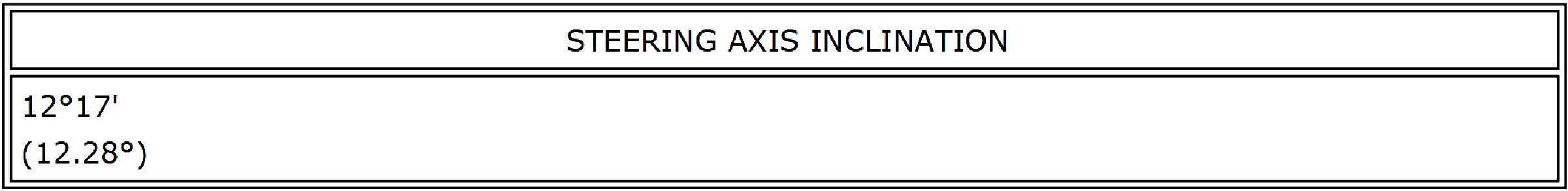

Standard Steering Axis Inclination (Unloaded Vehicle):

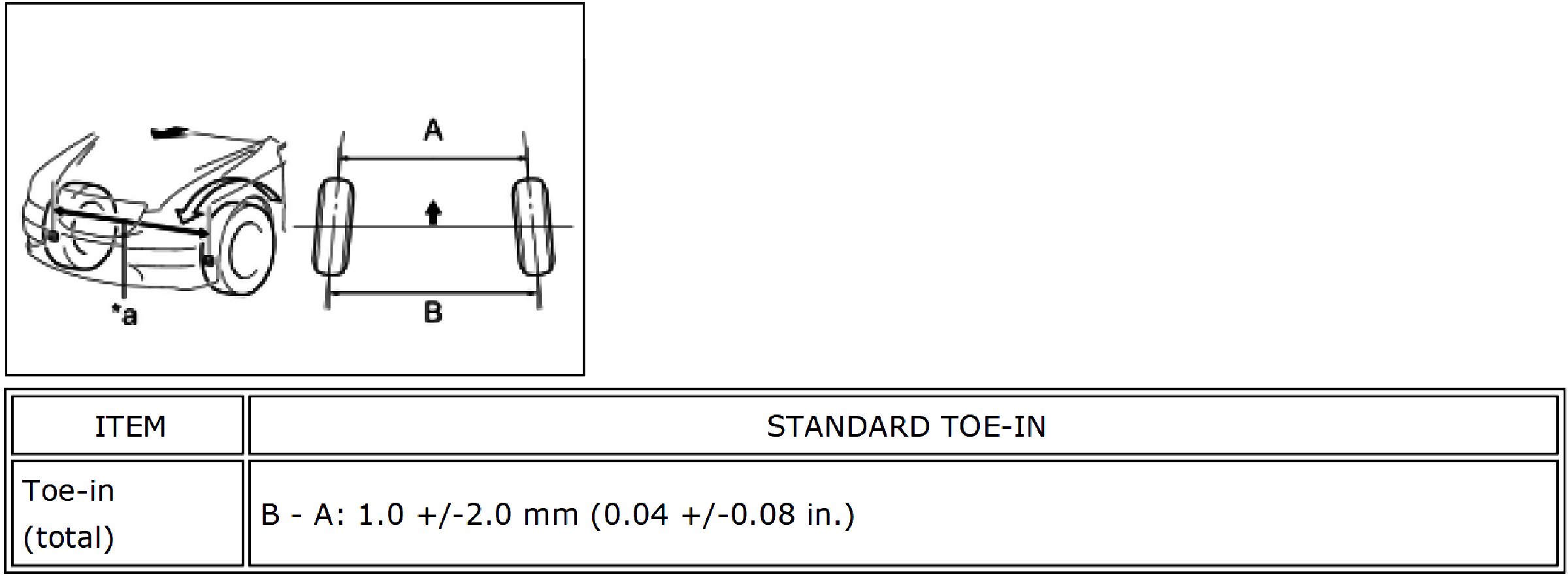

Standard Toe-in (Unloaded Vehicle):

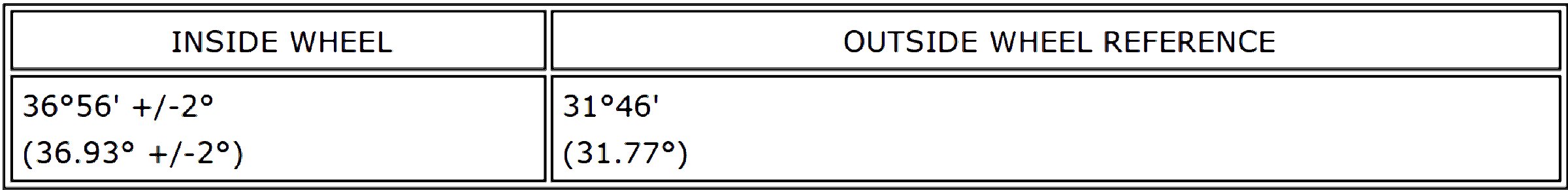

Standard Turning Angle (Unloaded Vehicle):

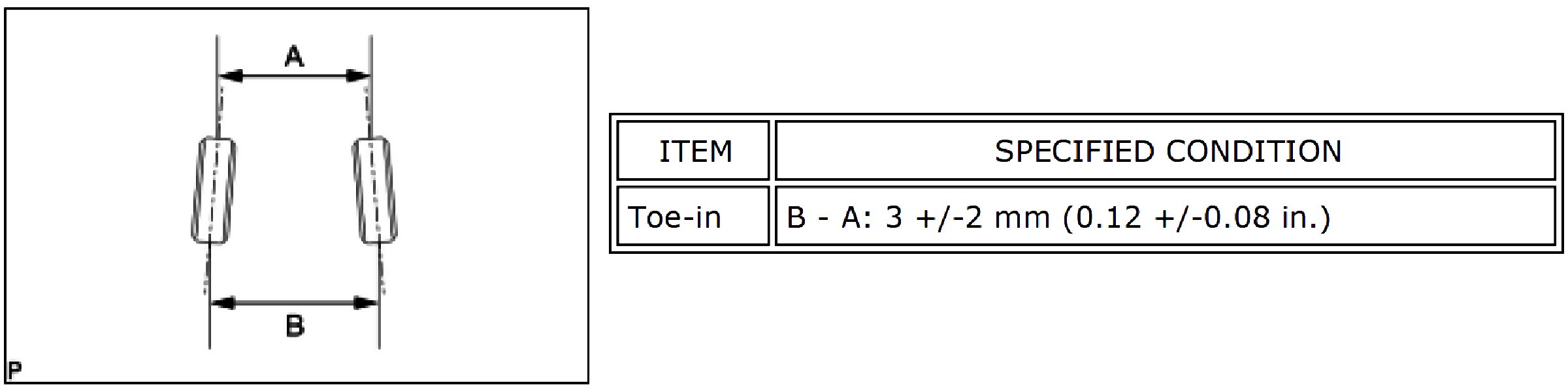

Rear Standard Toe-in (Unloaded Vehicle):

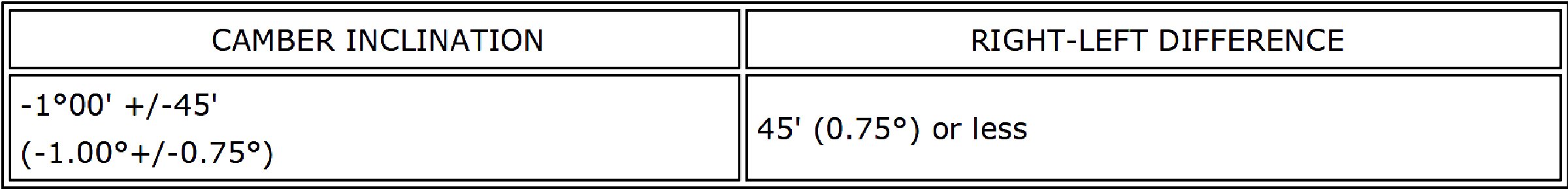

Rear Standard Camber Inclination (Unloaded Vehicle):
