36 - 39 - Instrument Panel J/B Assembly Inner Circuit

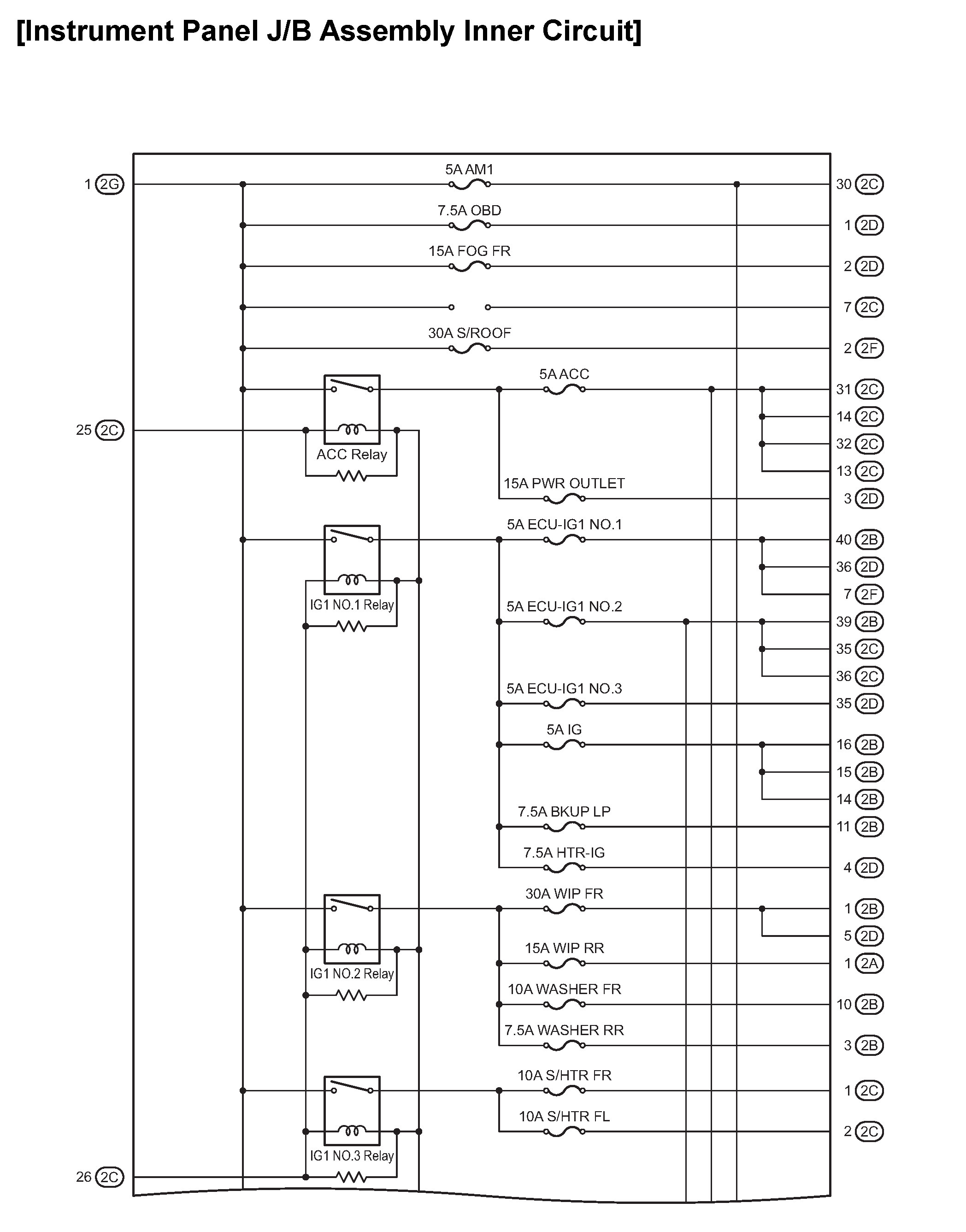

Instrument Panel J/B Assembly Inner Circuit:

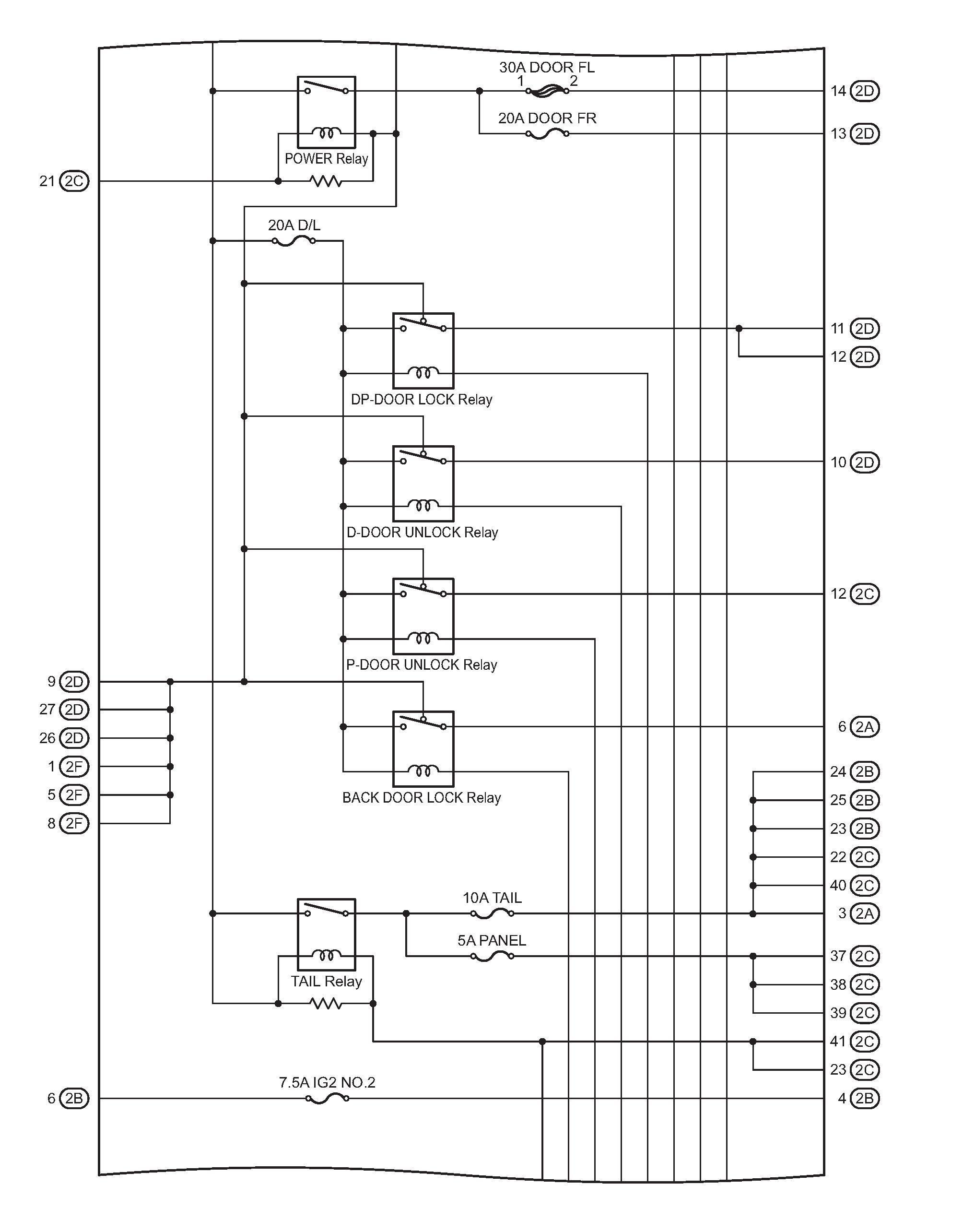

Instrument Panel J/B Assembly Inner Circuit:

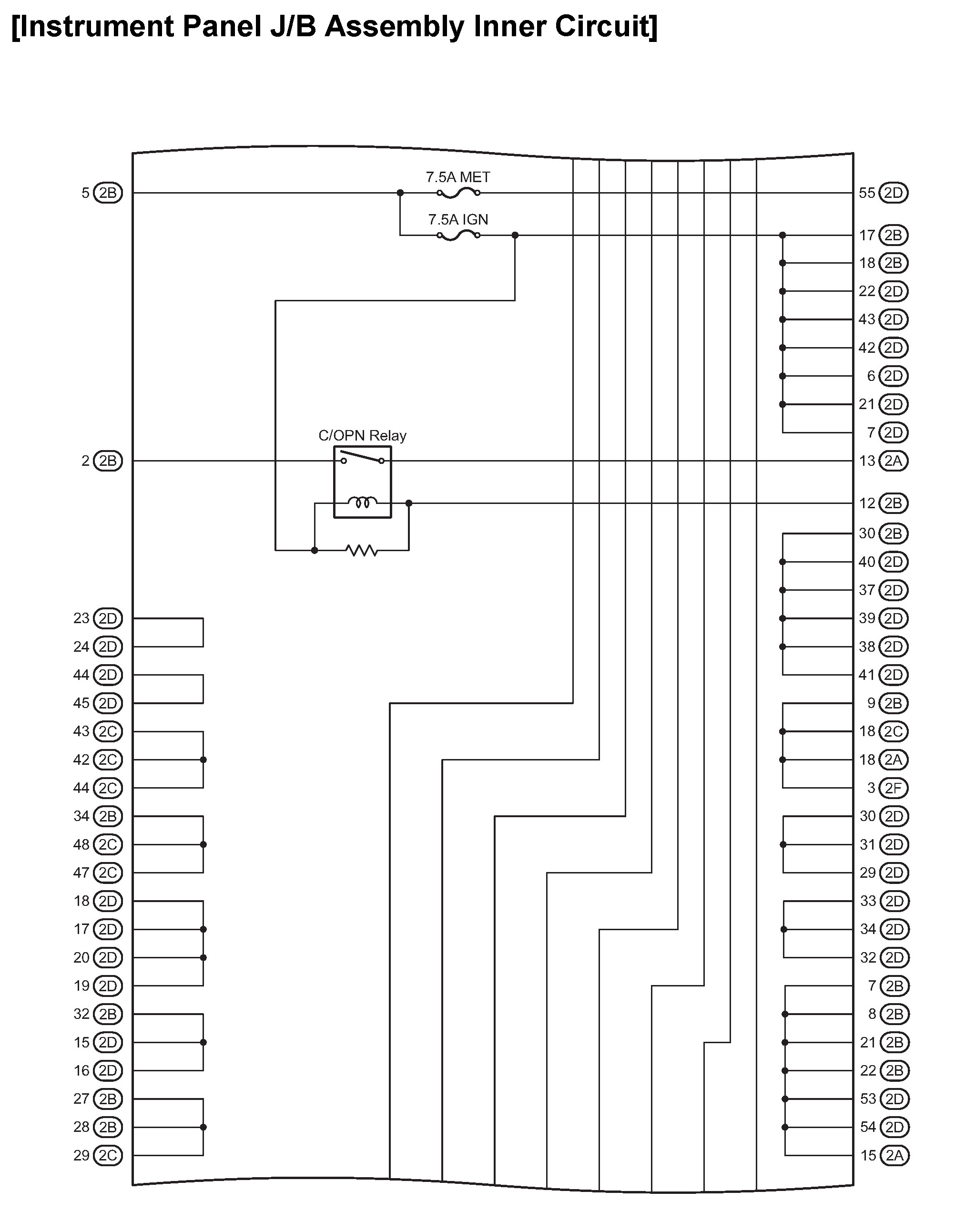

Instrument Panel J/B Assembly Inner Circuit:

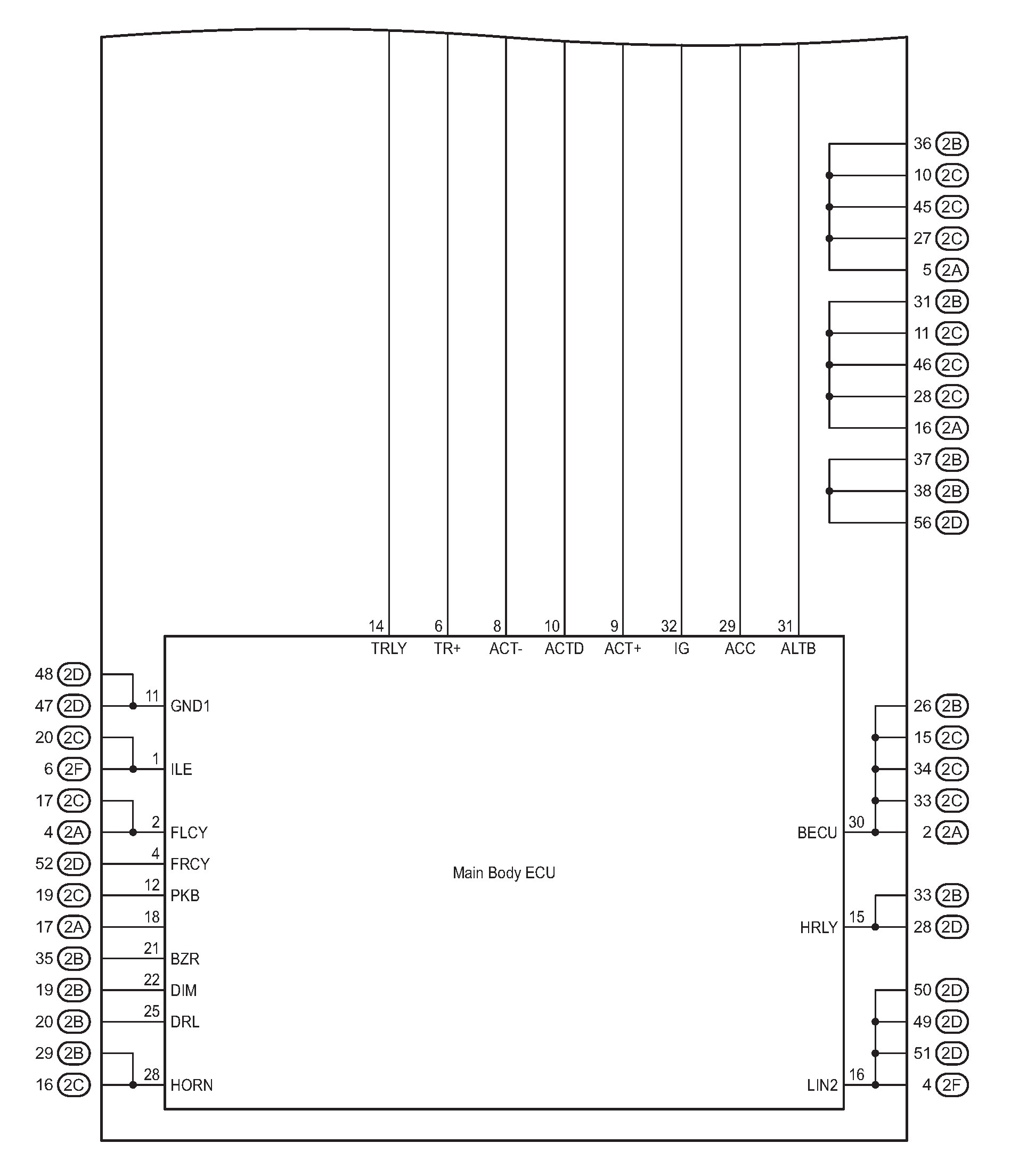

Instrument Panel J/B Assembly Inner Circuit:
