28 - 29 - Engine Room R/B Assembly and Engine Room J/B Assembly Inner Circuit

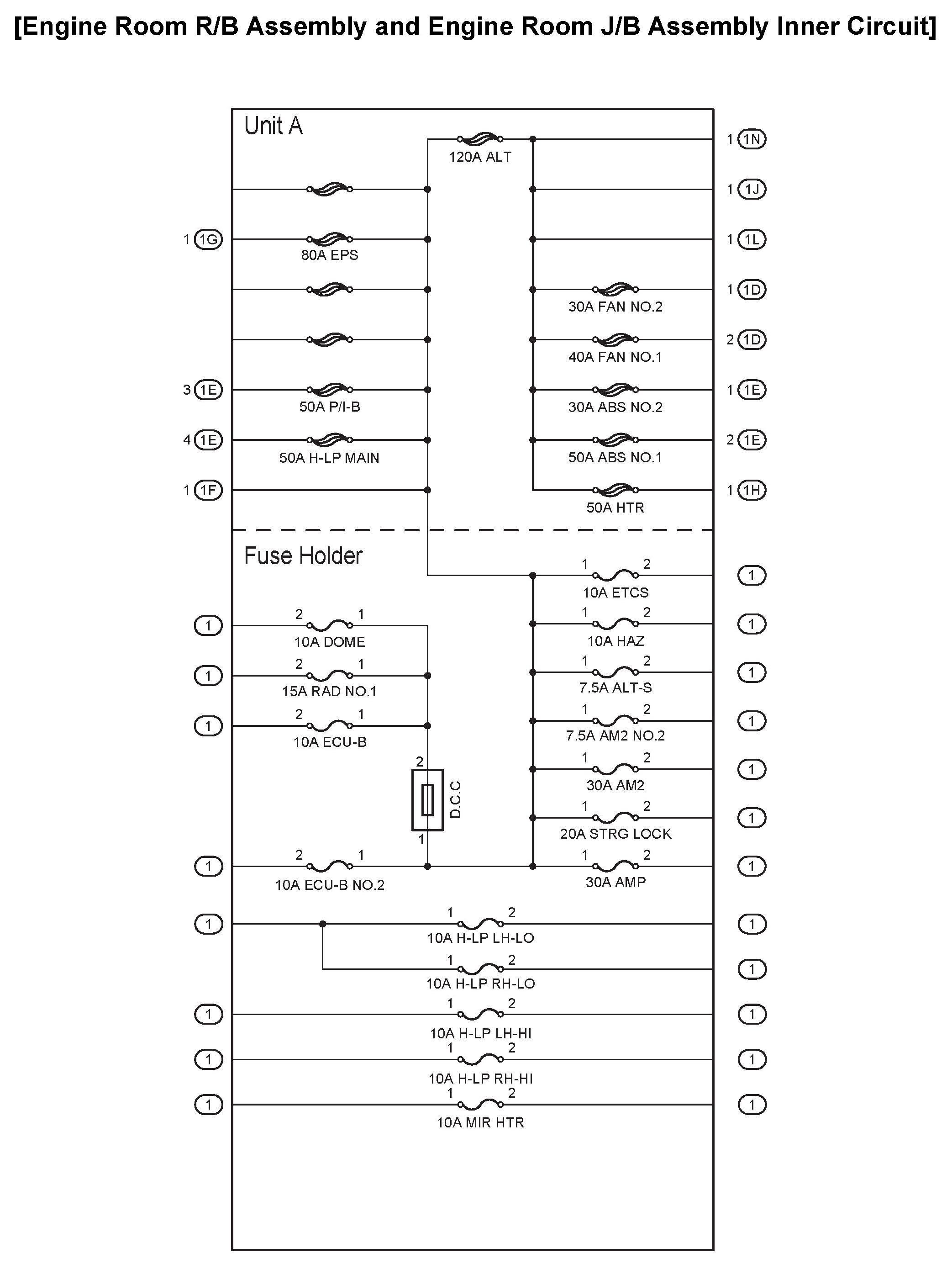

Engine Room R/B Assembly And Engine Room J/B Assembly Inner Circuit:

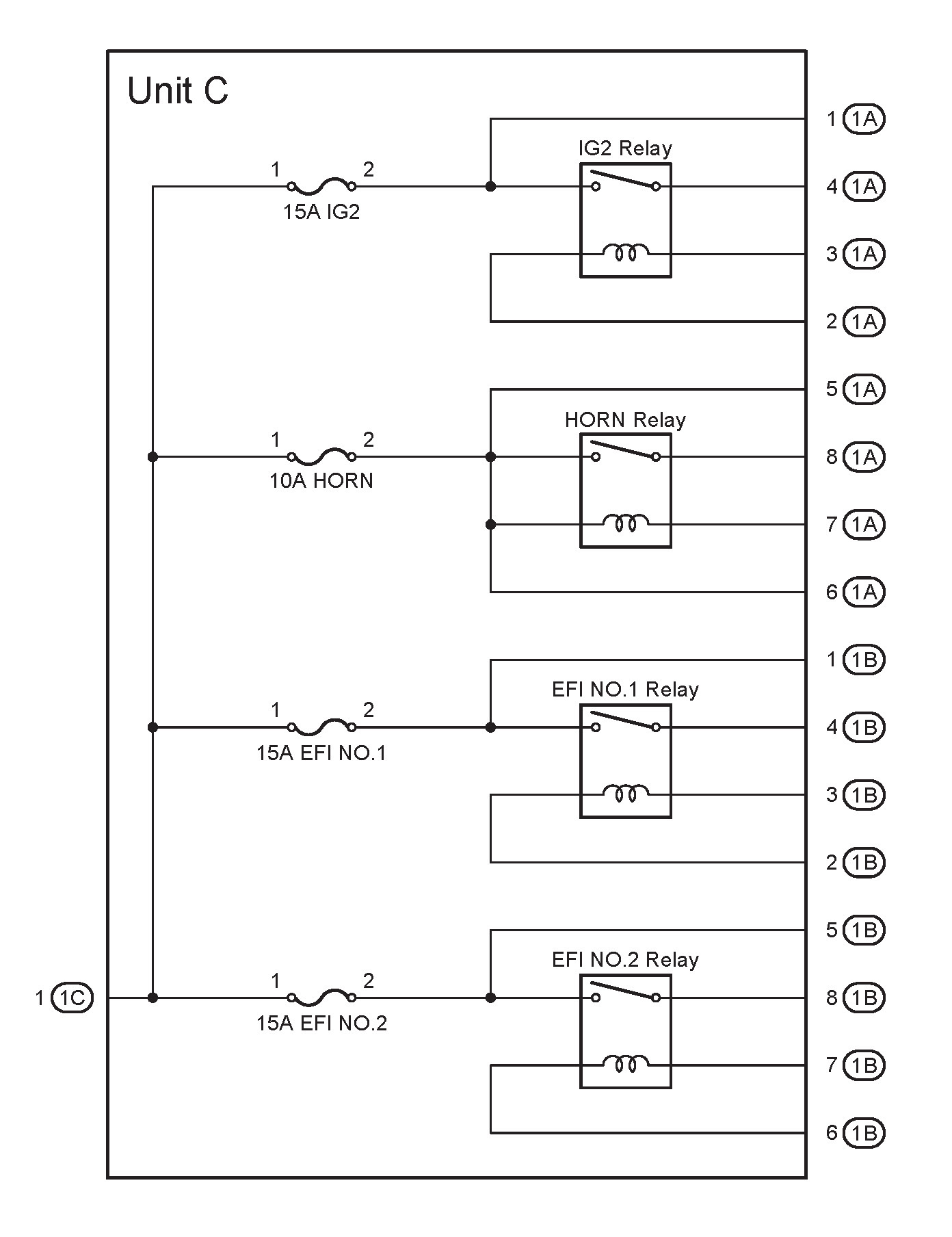

Engine Room R/B Assembly And Engine Room J/B Assembly Inner Circuit:
