Home >> Scion >> 2013 >> tC L4-2.5L (2AR-FE) >> Repair and Diagnosis >> Diagrams >> Connectors

Connectors

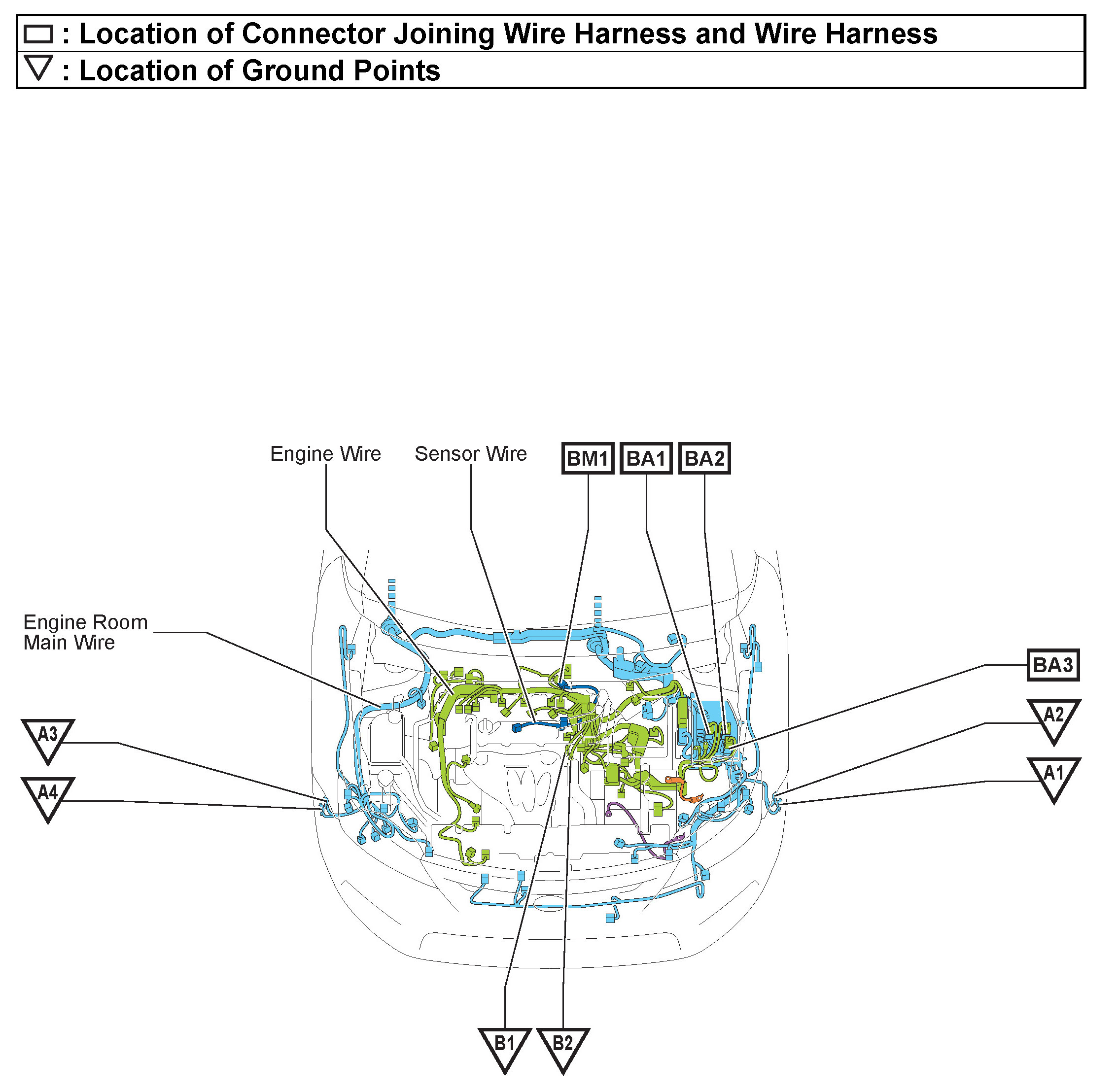

A1-B2 / BA1-BM1:

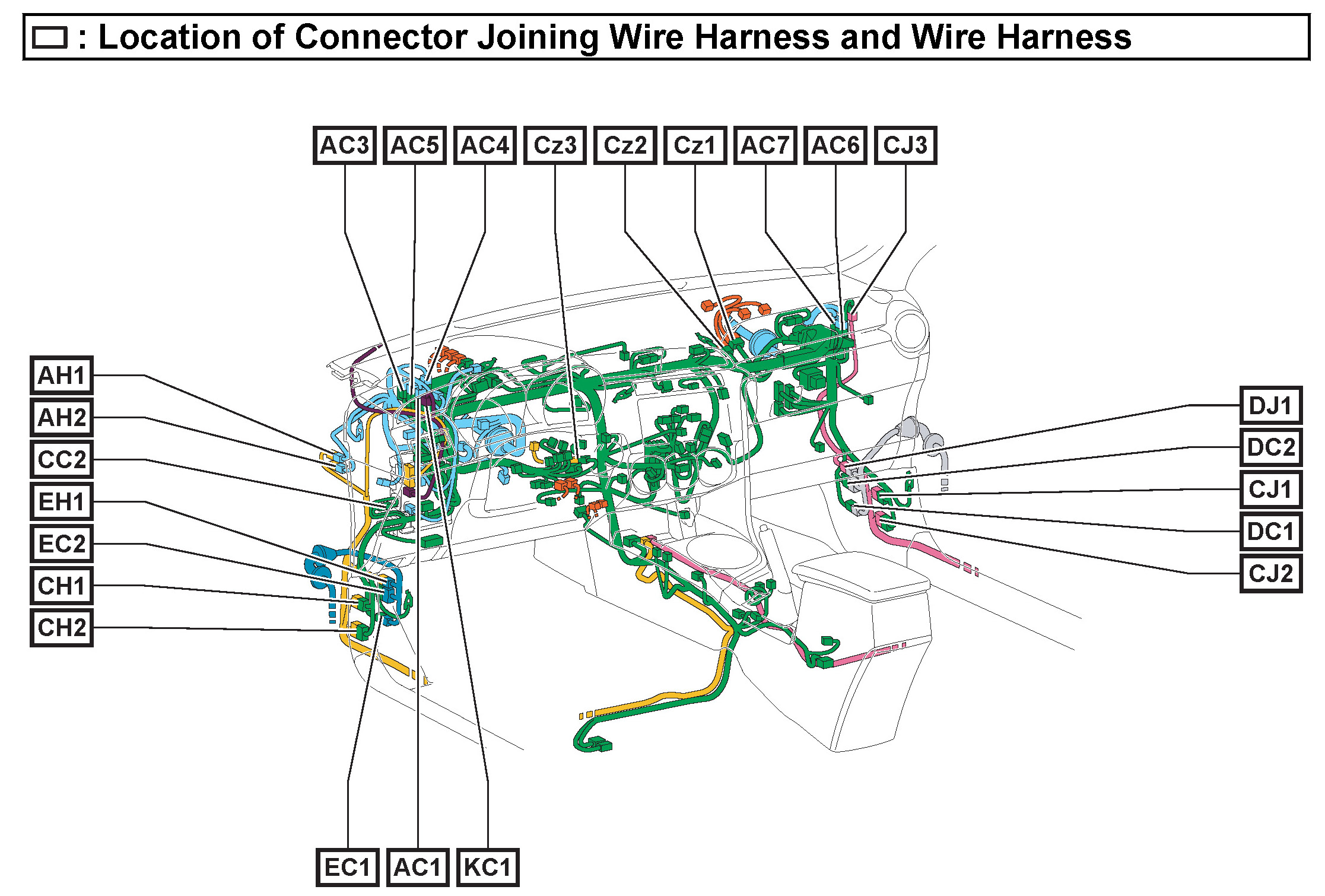

AC1-KC1:

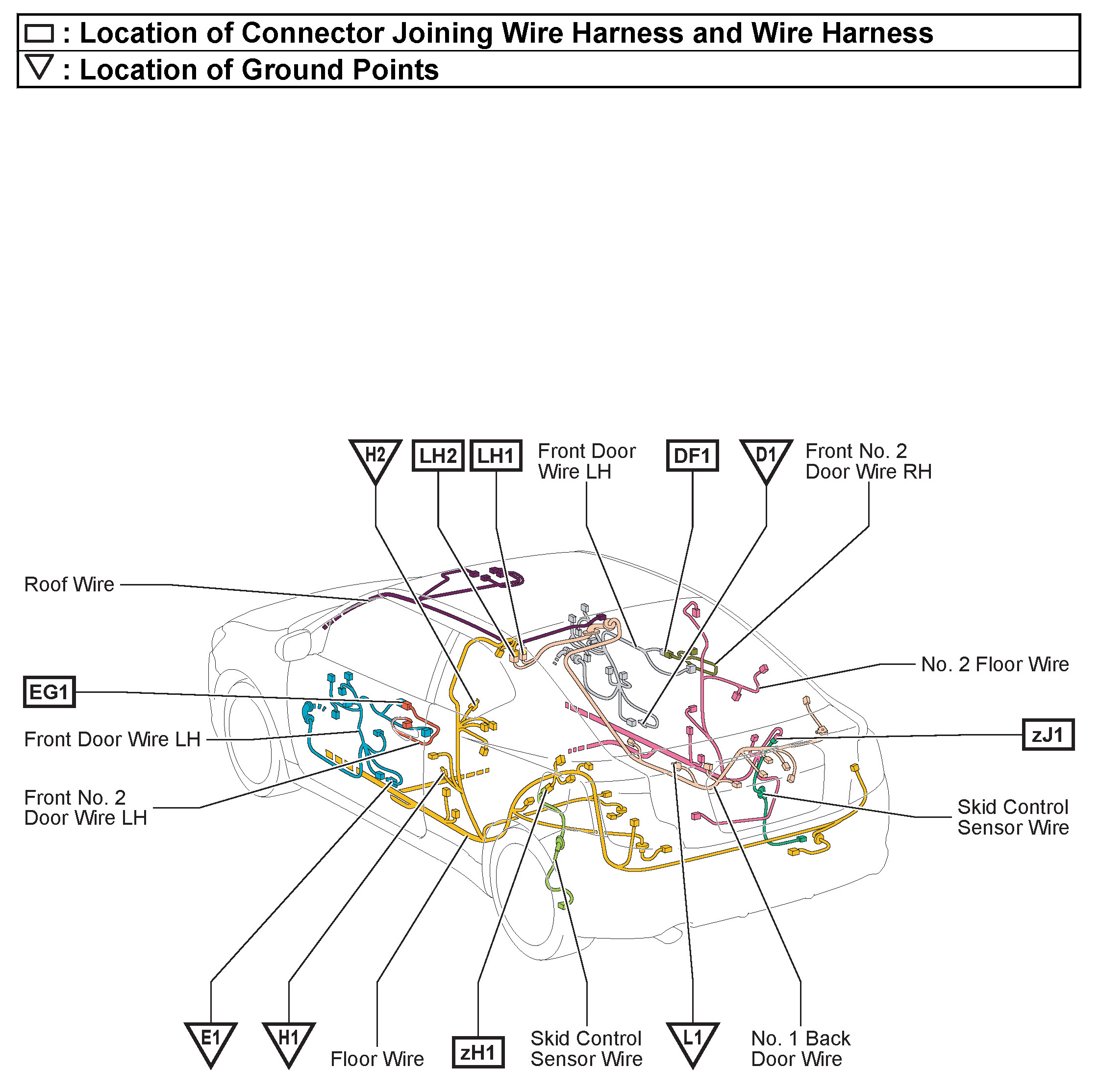

D1-L1 / DF1-zJ1:

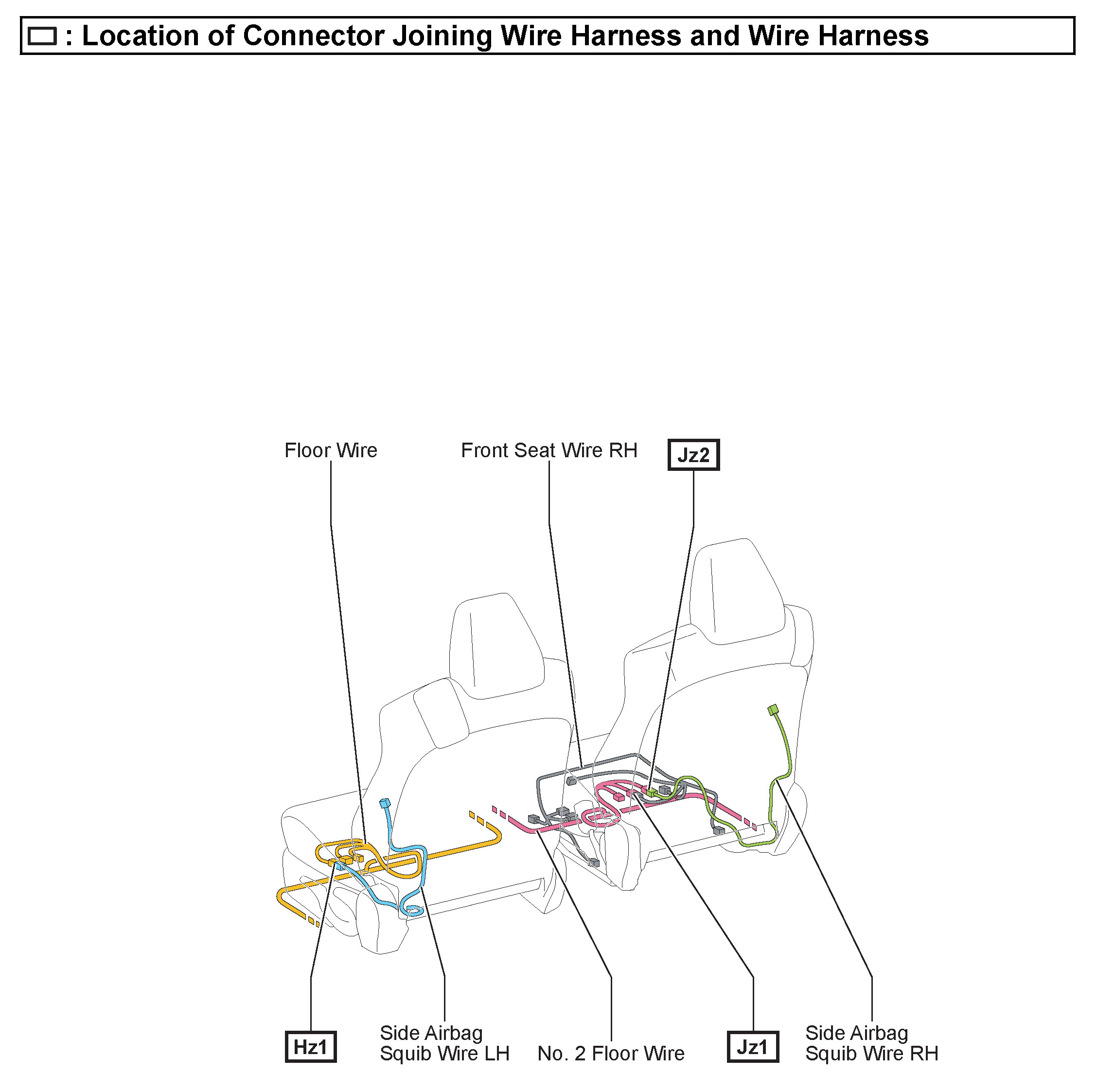

Hz1-Jz2:
