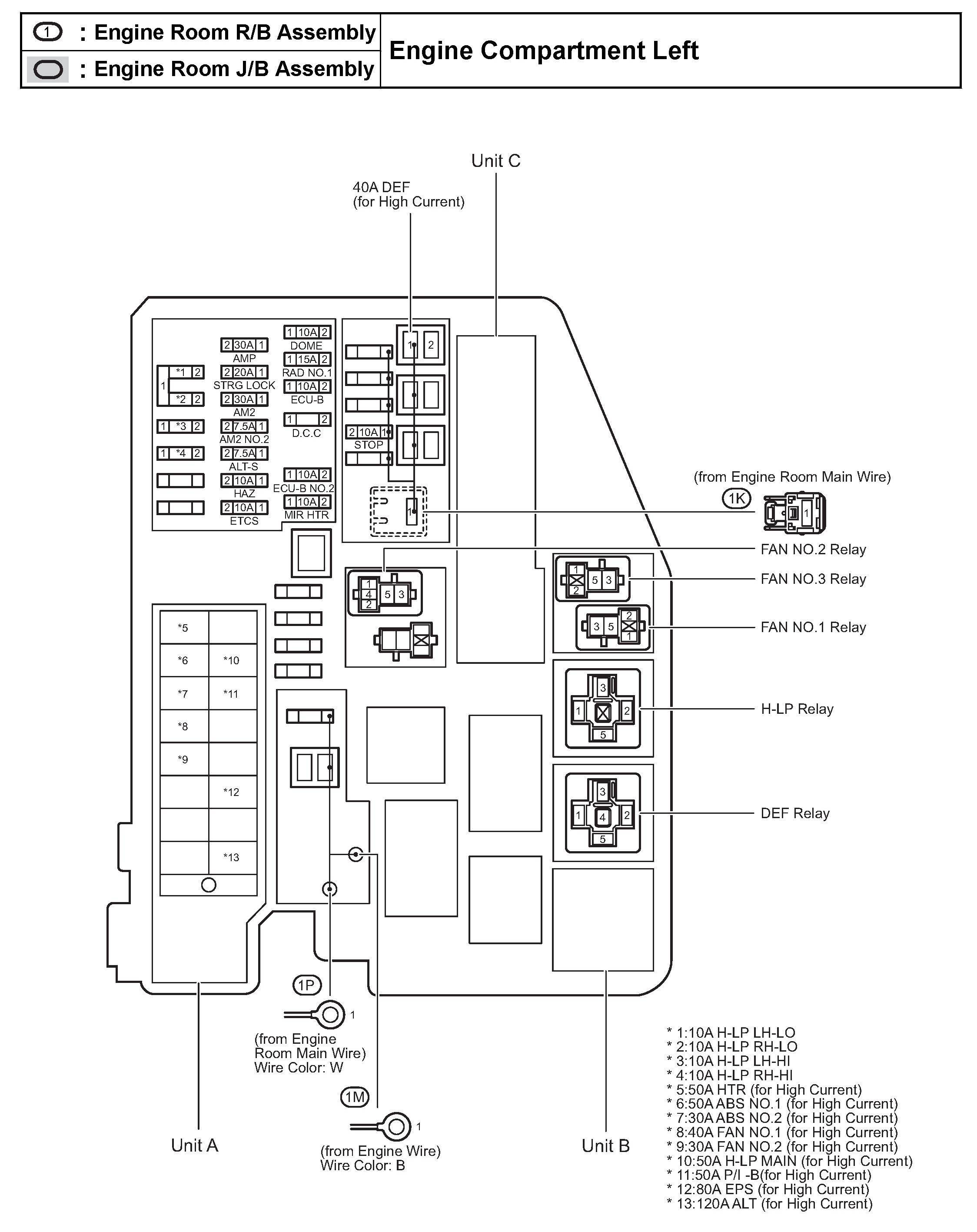

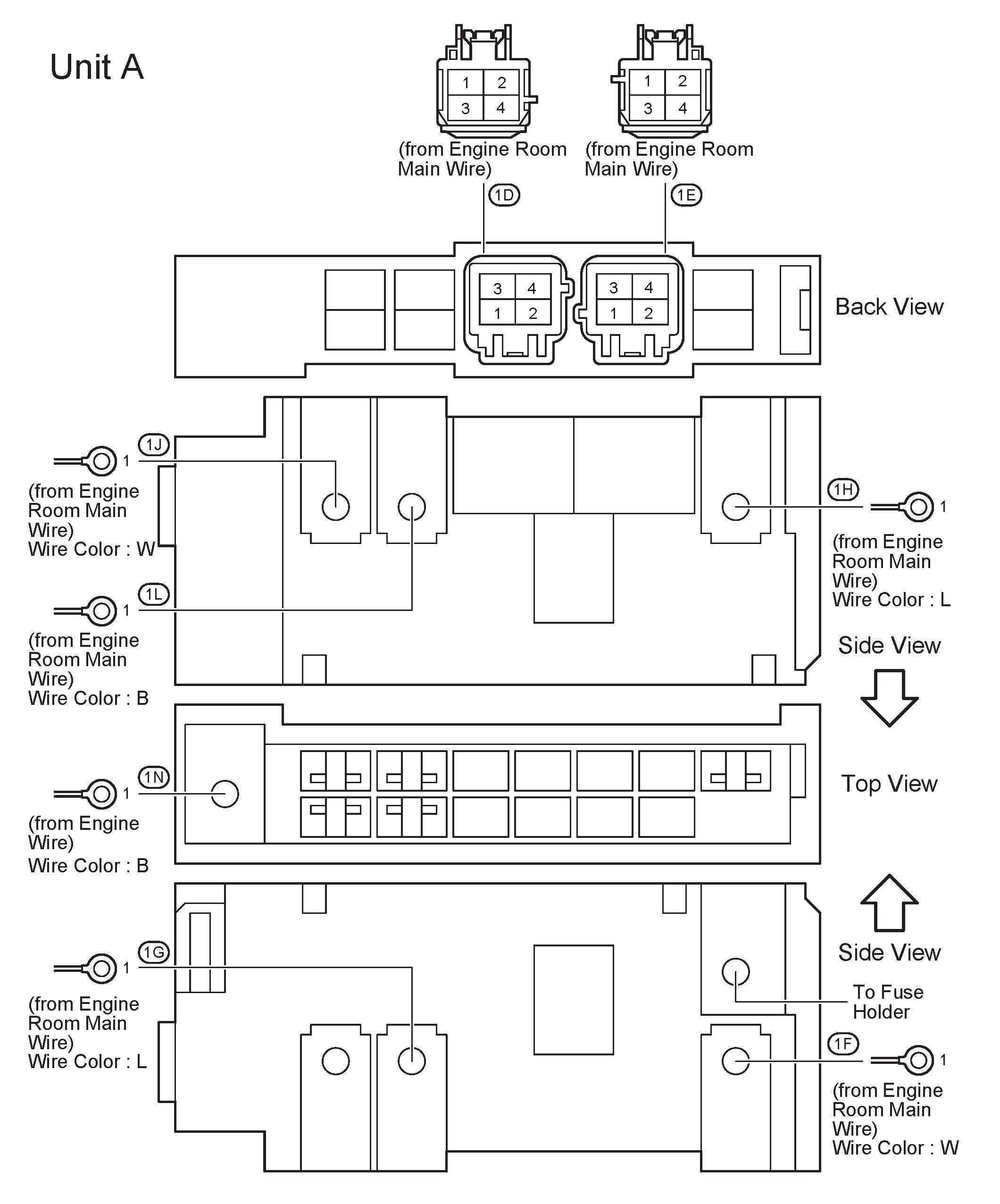

24 - 25 - Engine Room R/B Assembly, Engine Room J/B Assembly - Engine Compartment Left
24 - 25 - Engine Room R/B Assembly, Engine Room J/B Assembly - Engine Compartment Left
Engine Room R/B Assembly, Engine Room J/B Assembly - Engine Compartment Left:
Engine Room R/B Assembly, Engine Room J/B Assembly - Engine Compartment Left:
