42 - 45 - Position of Parts In Instrument Panel
42 - 45 - Position of Parts In Instrument Panel

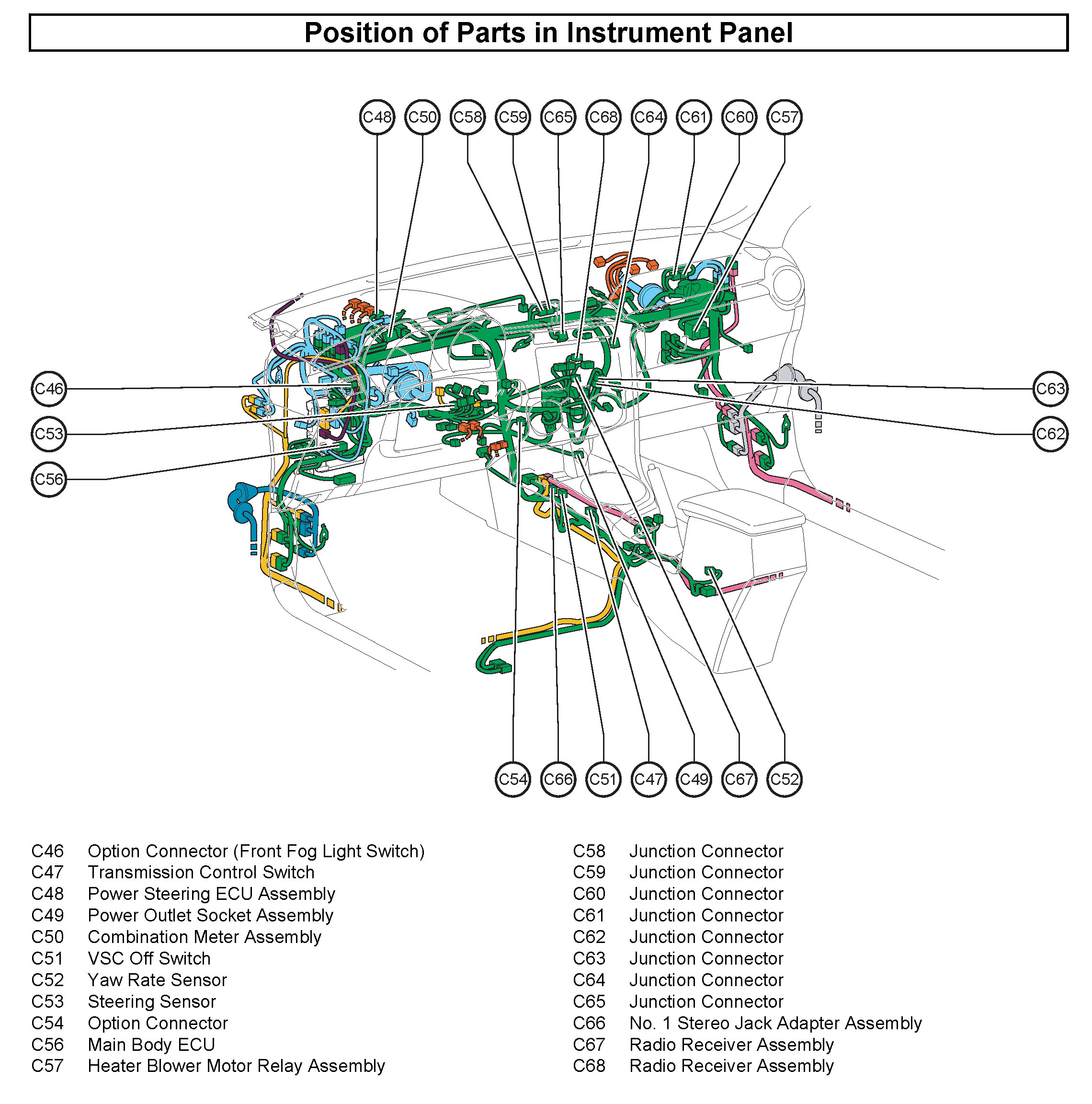

Position of Parts in Instrument Panel:

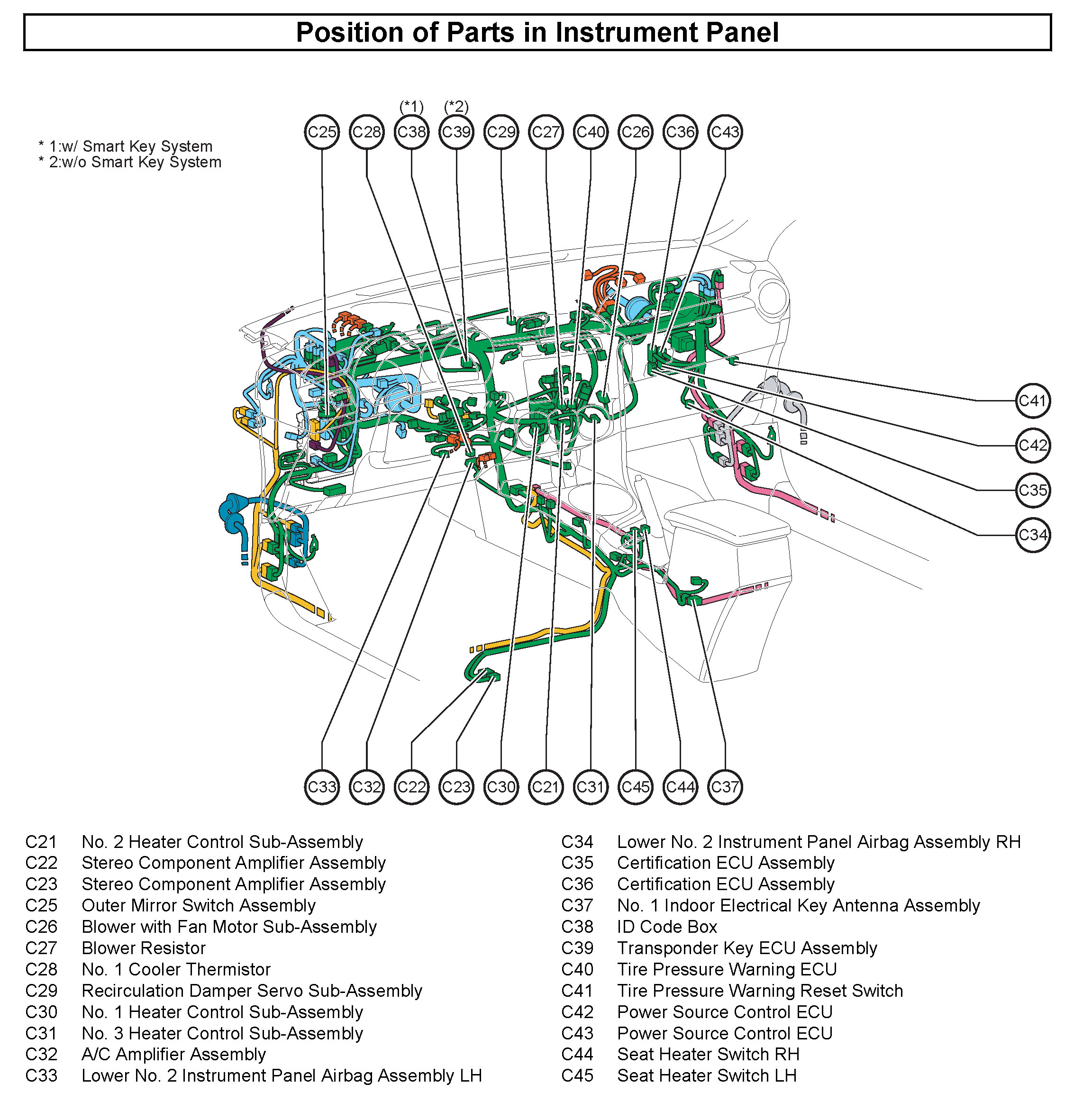

Position of Parts in Instrument Panel:

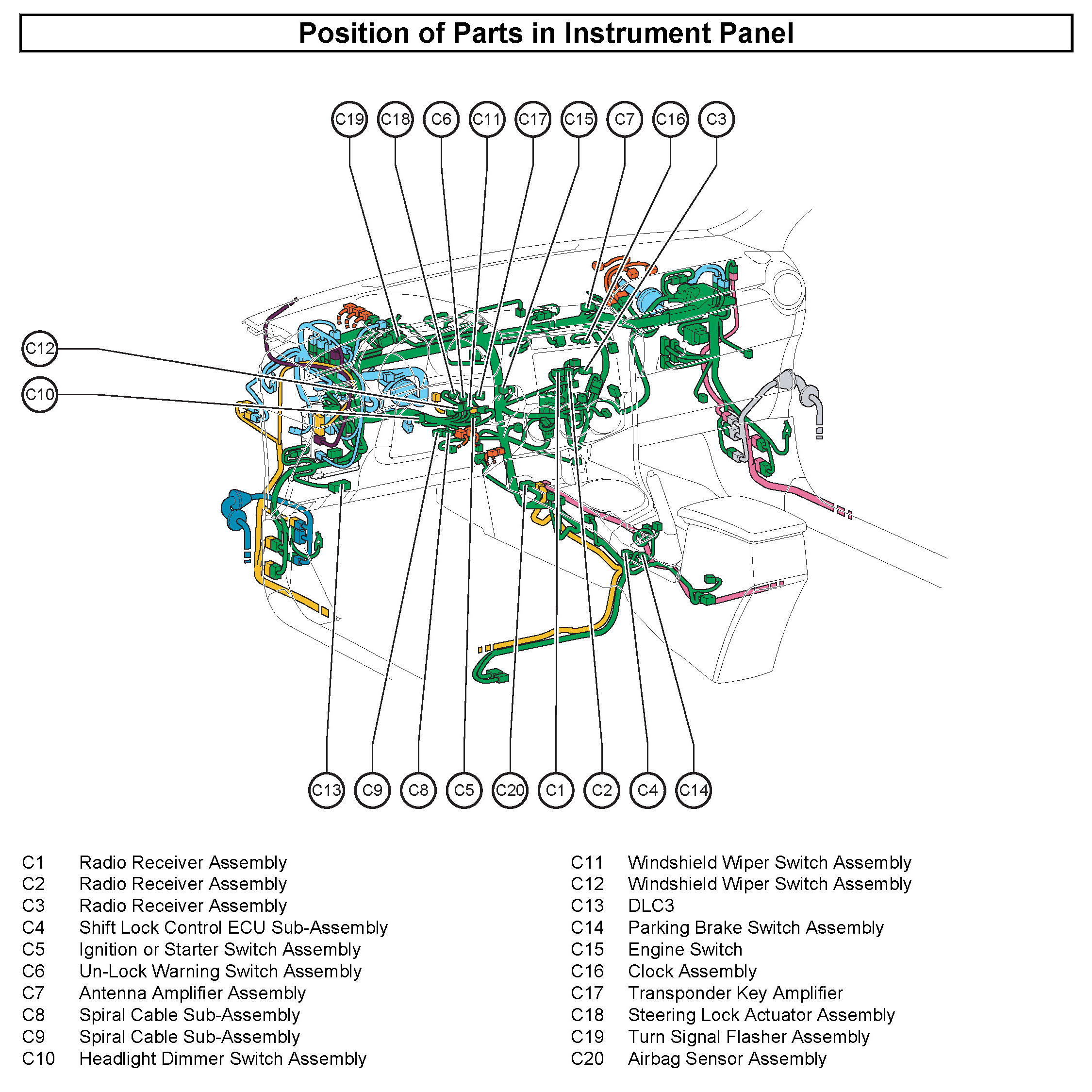

Position of Parts in Instrument Panel:

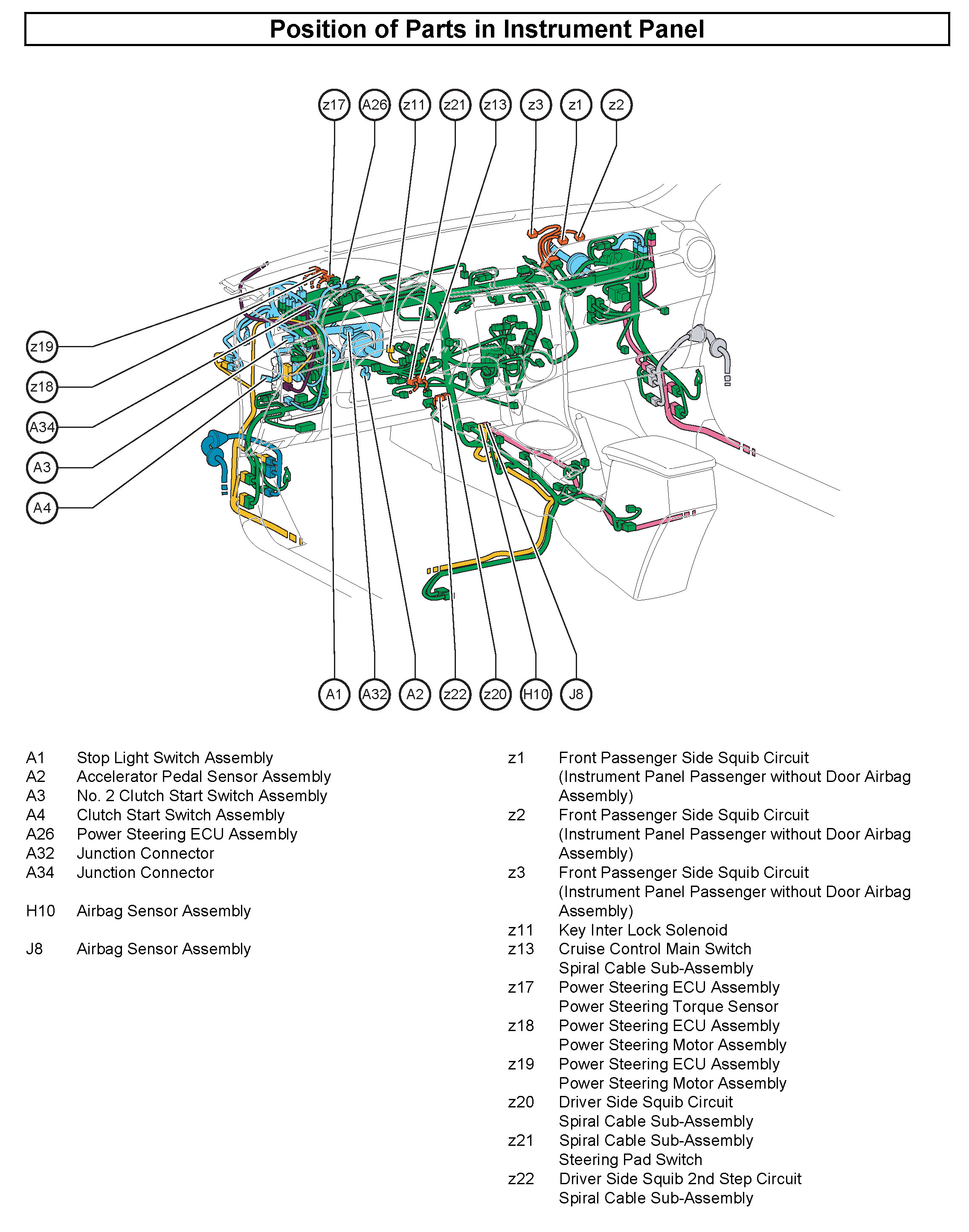

Position of Parts in Instrument Panel:
