40 - 41 - Position of Parts In Engine Compartment
40 - 41 - Position of Parts In Engine Compartment

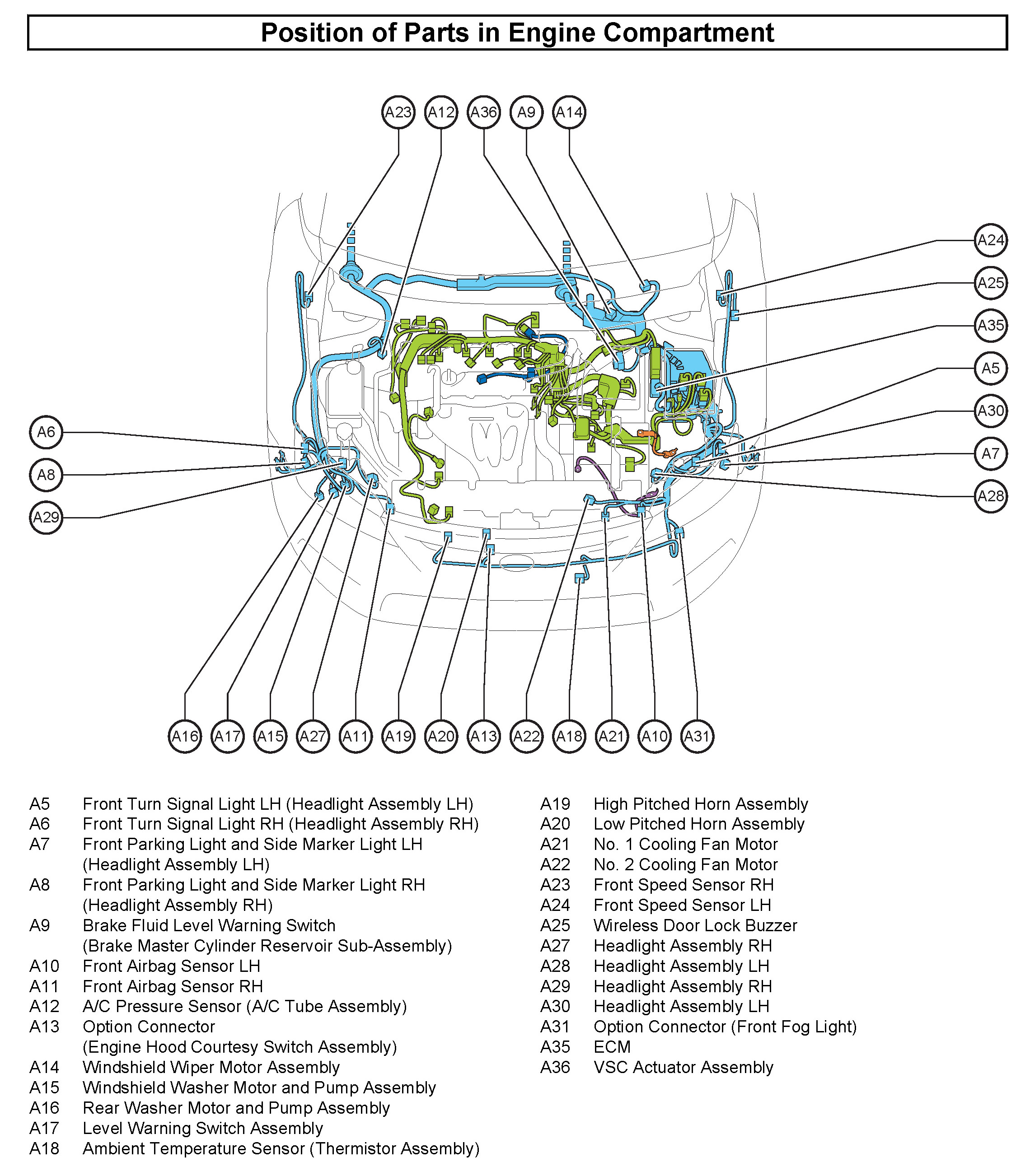

Position of Parts in Engine Compartment:

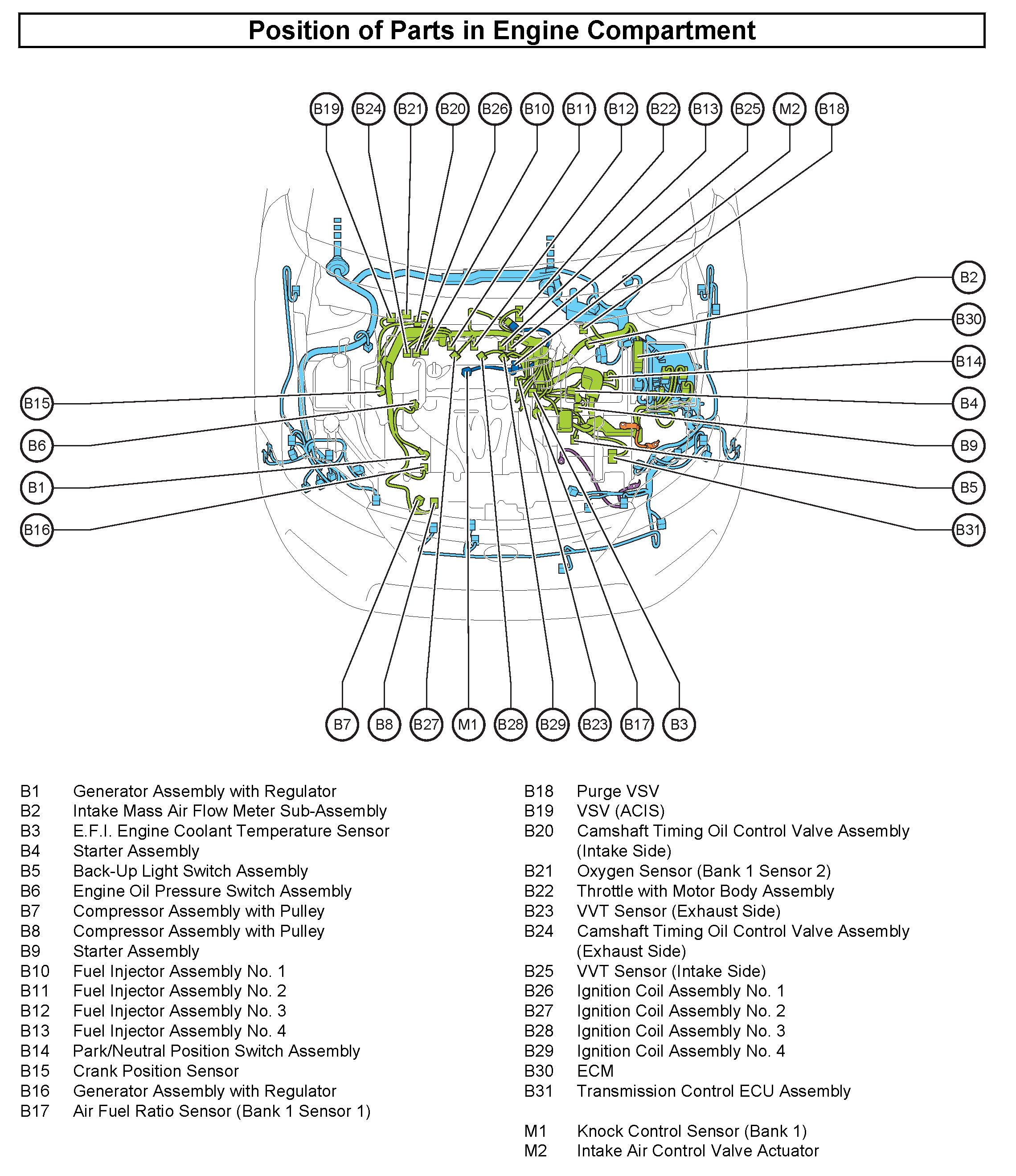

Position of Parts in Engine Compartment:
