Fuse: Locations
Fuse Box Locations

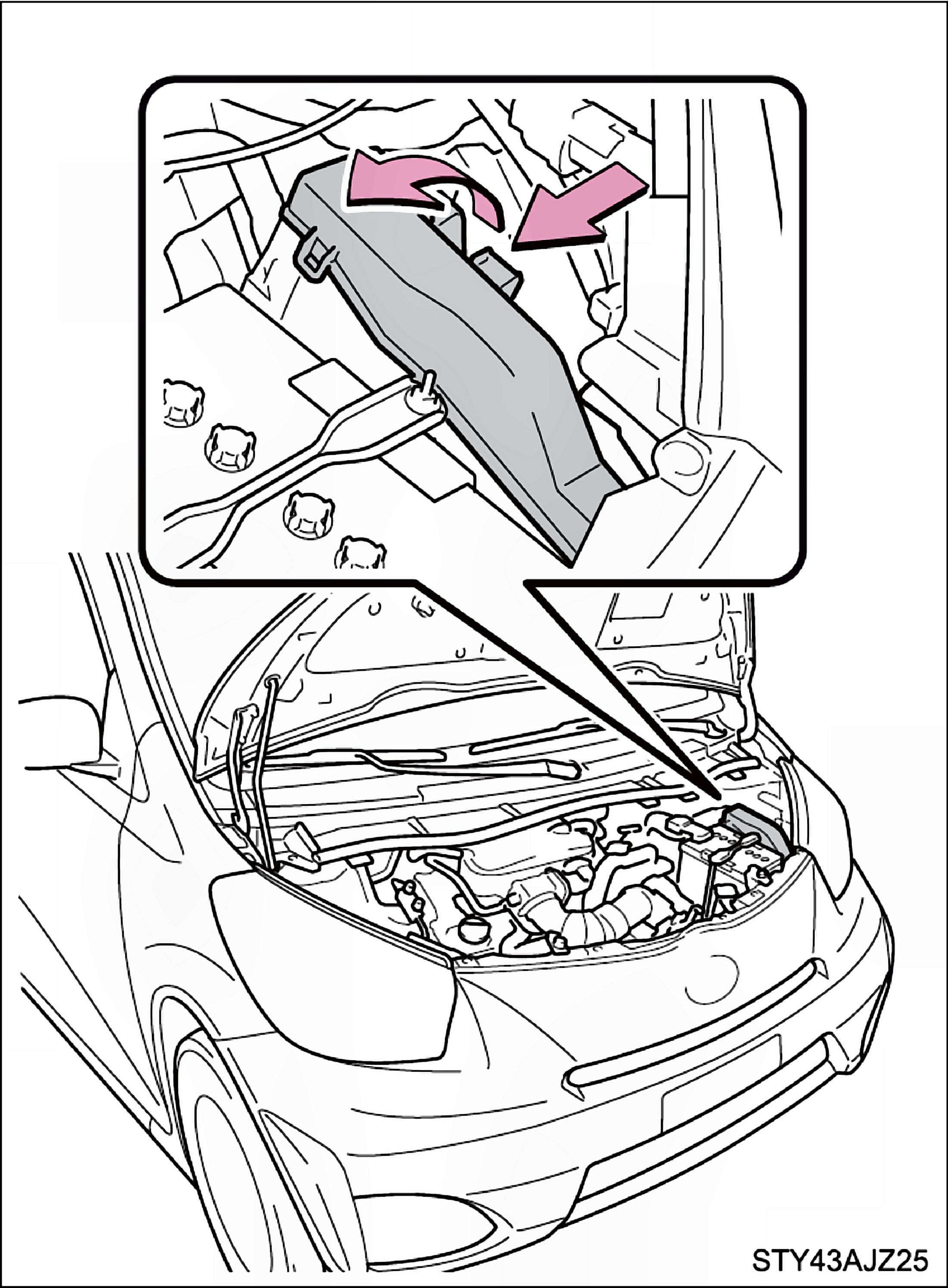

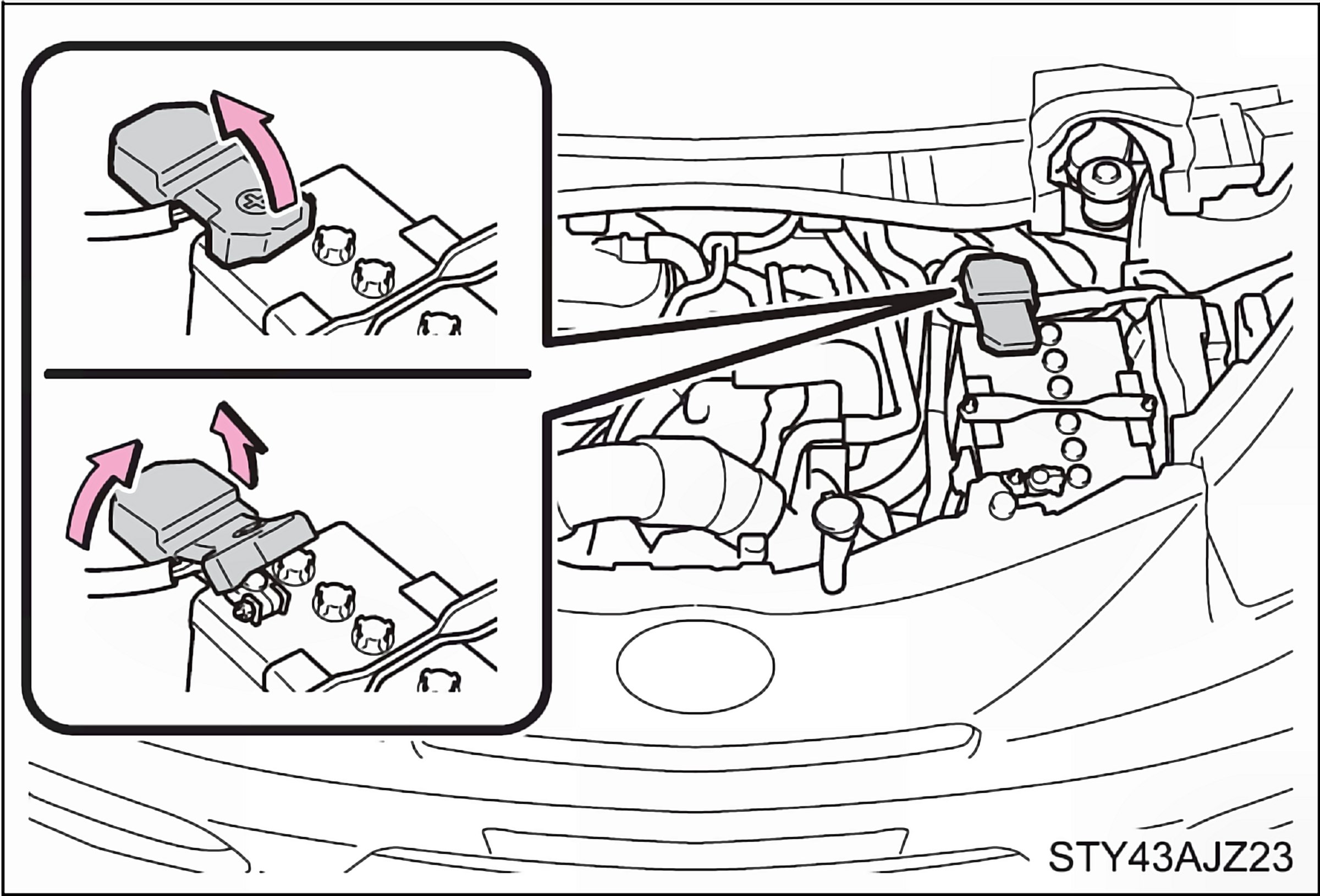

Engine Compartment (Type A):

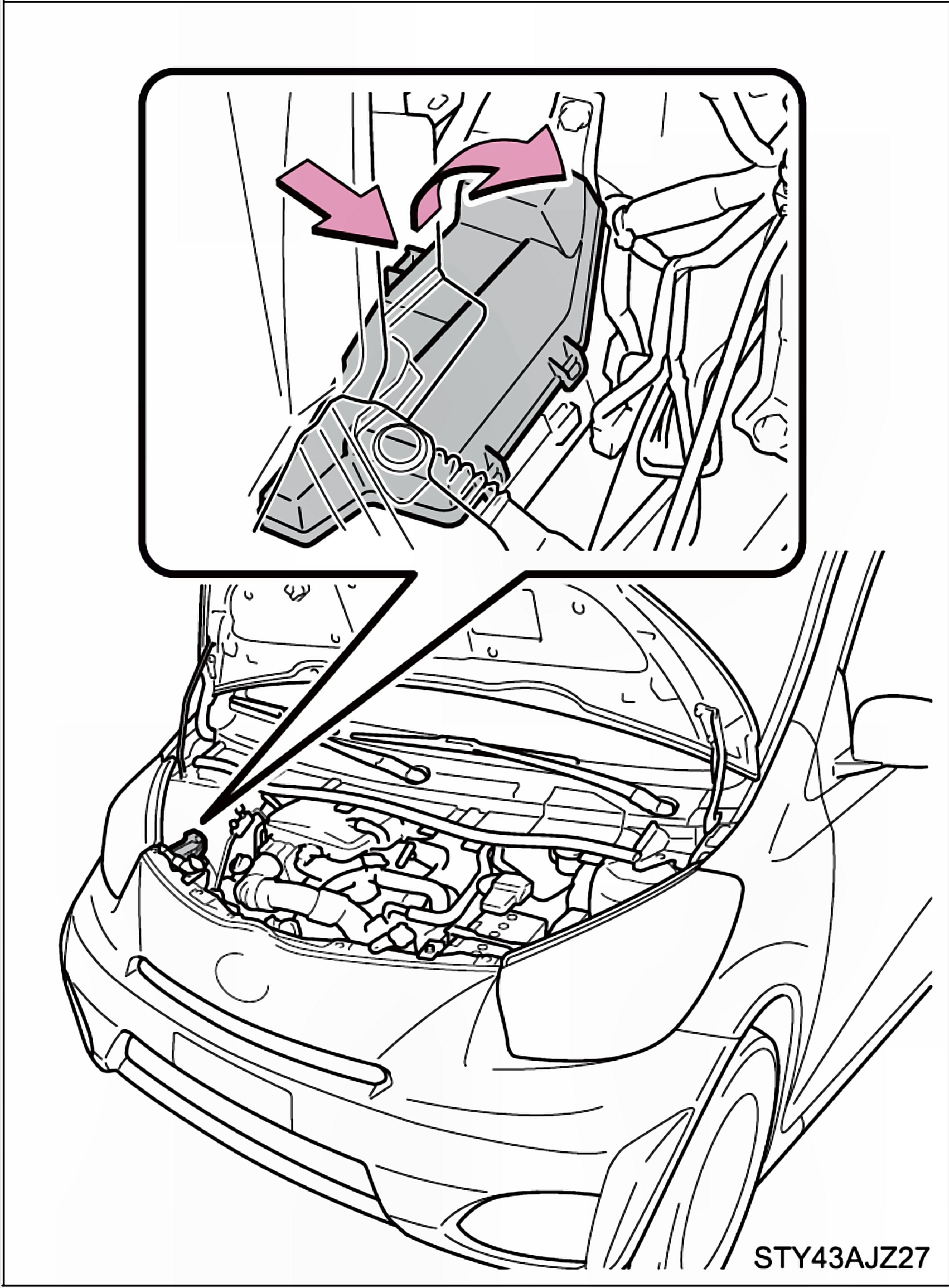

Engine Compartment (Type B):
Engine Compartment (Type C):

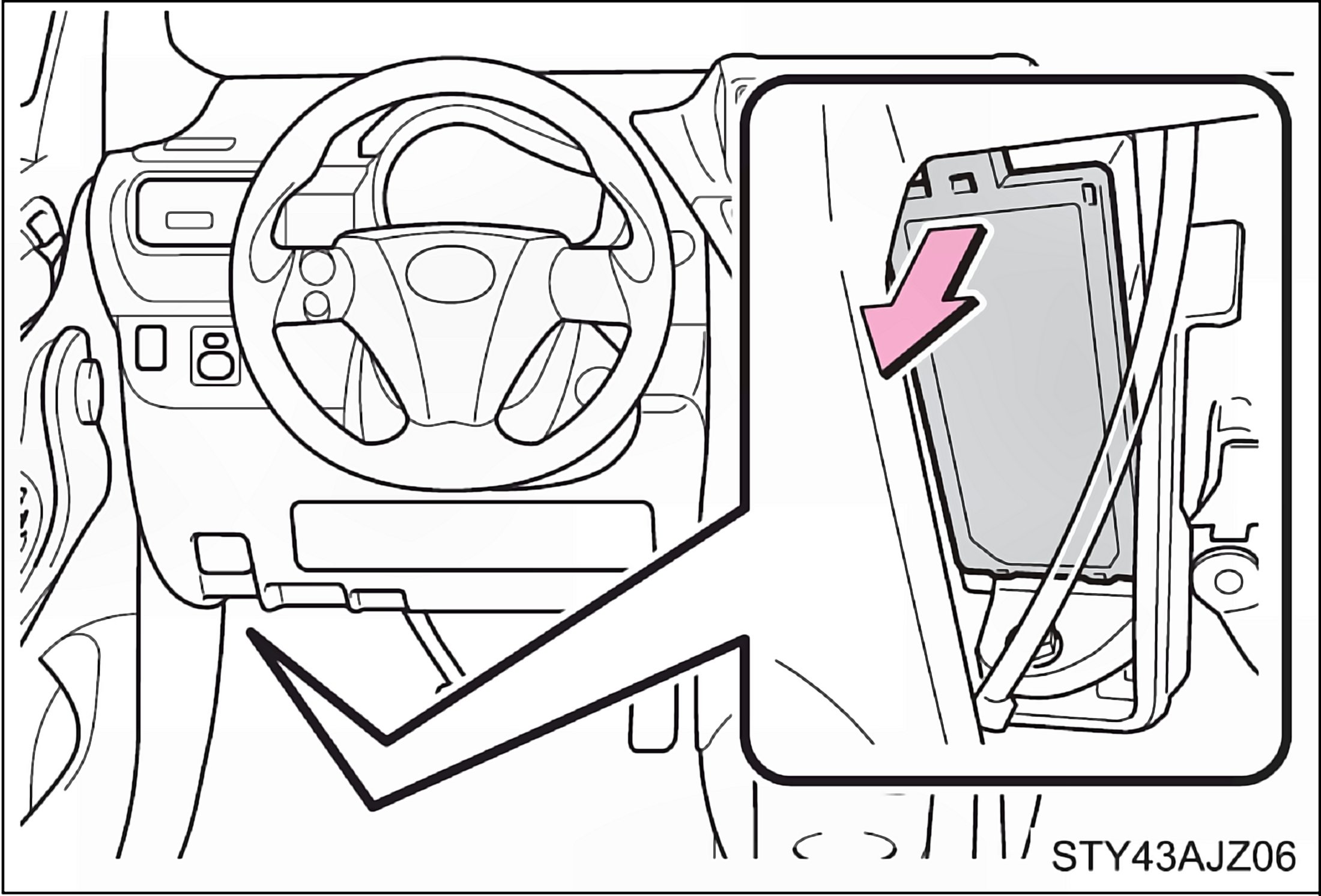

Driver's Side Instrument Panel:
Fuse Locations
Engine Compartment (Type A):

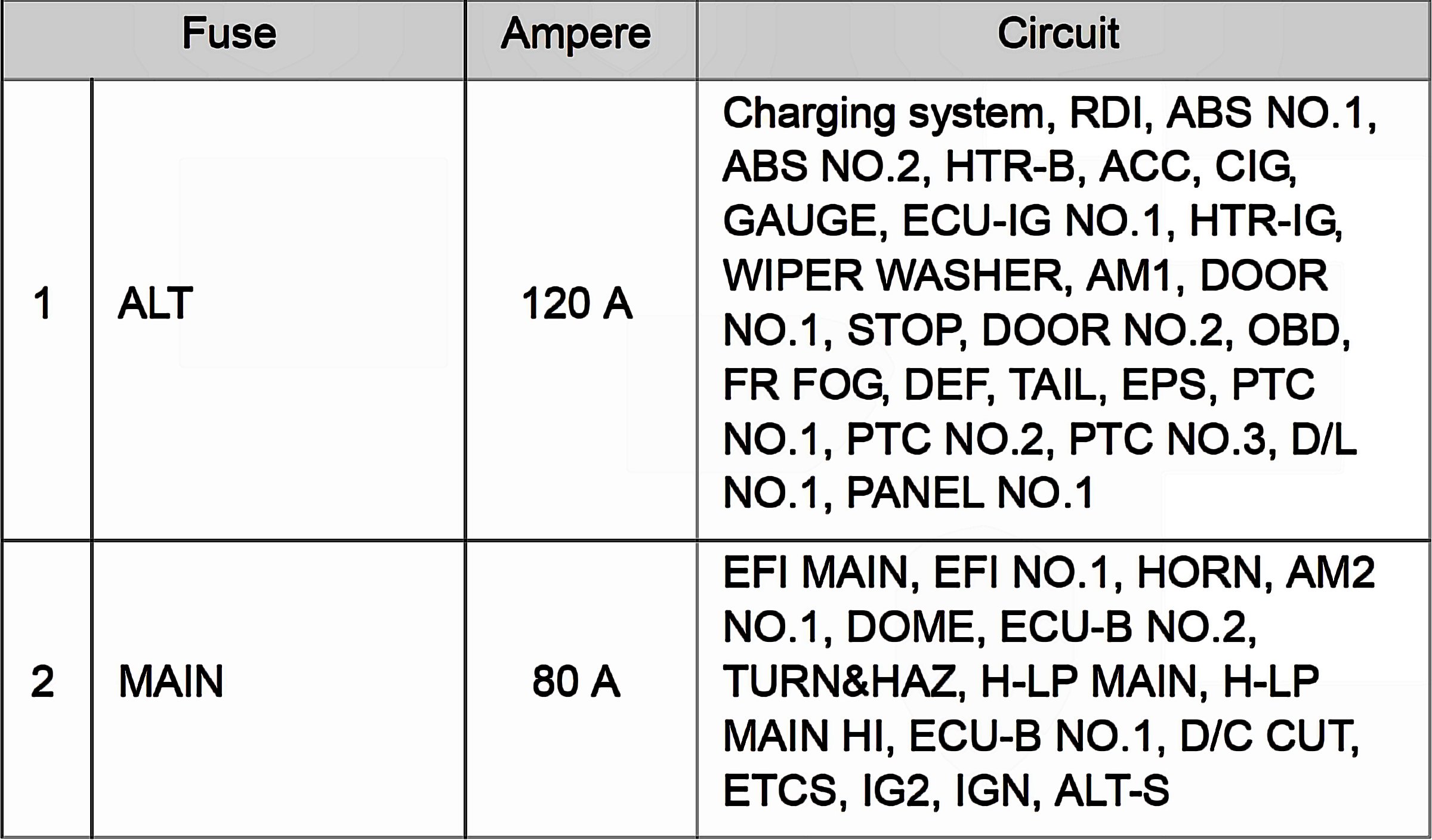

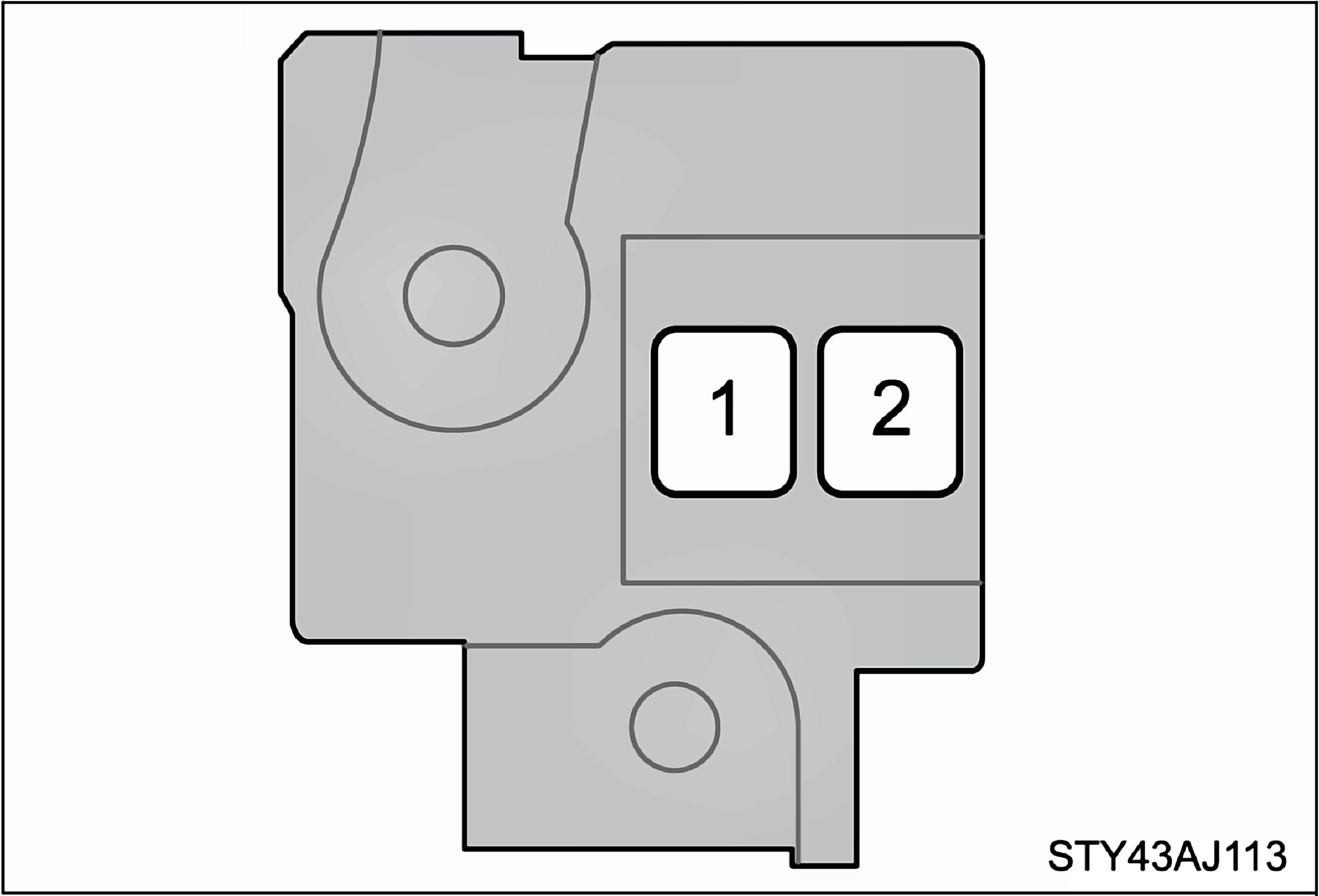

Fuses 1-2:

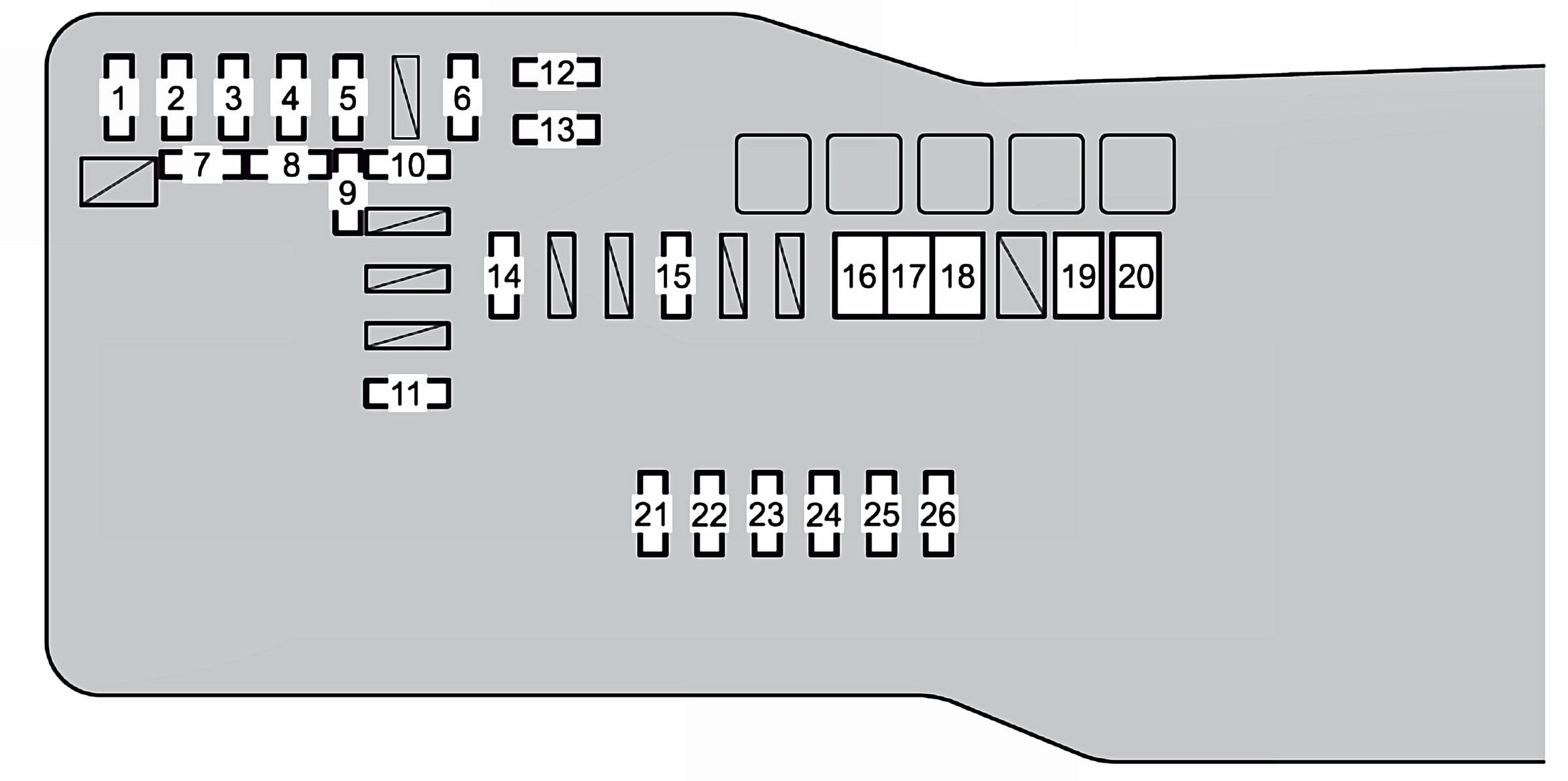

Engine Compartment (Type B):

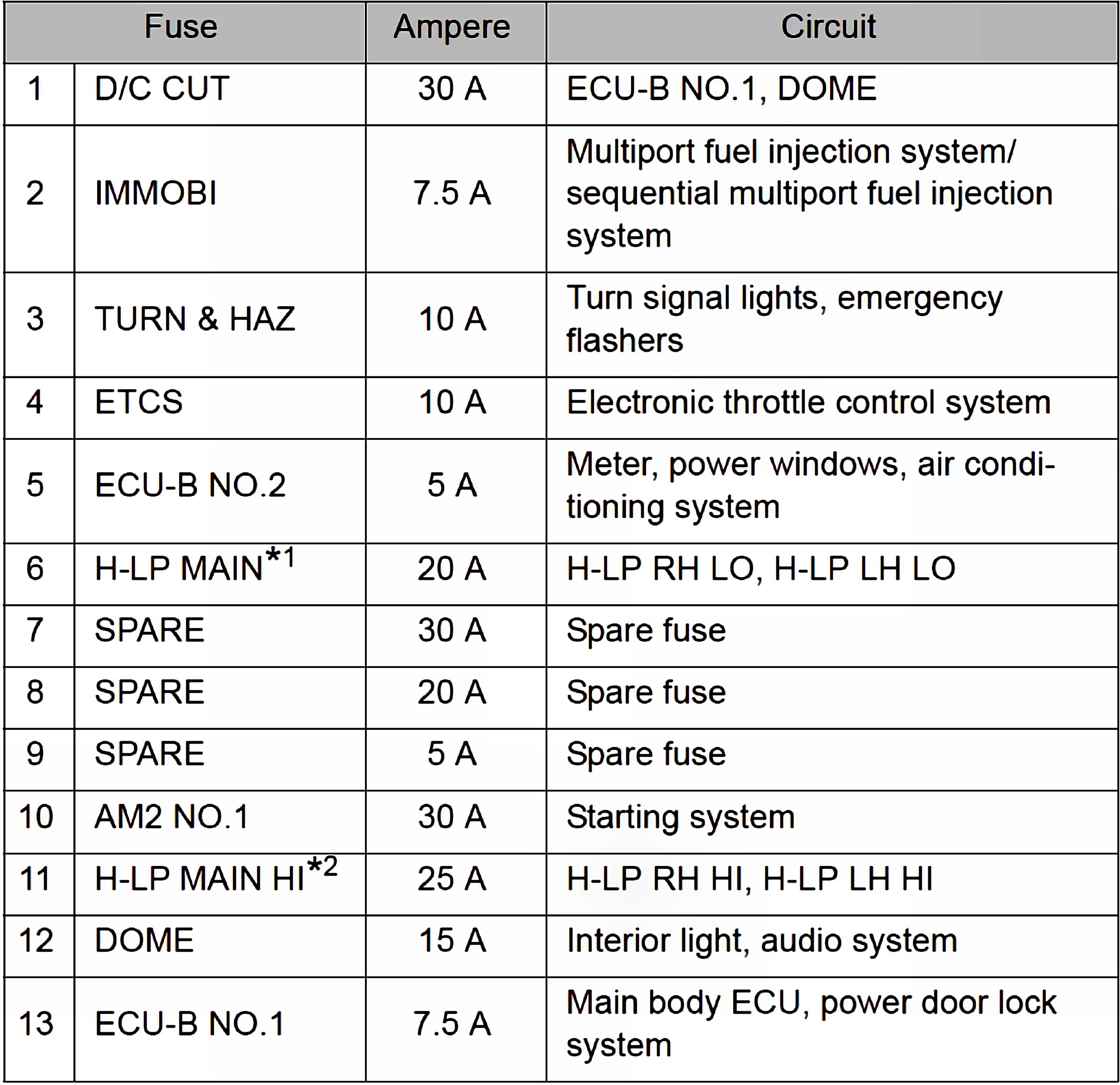

Fuses 1-13:
Fuses 14-26:
Engine Compartment (Type C):

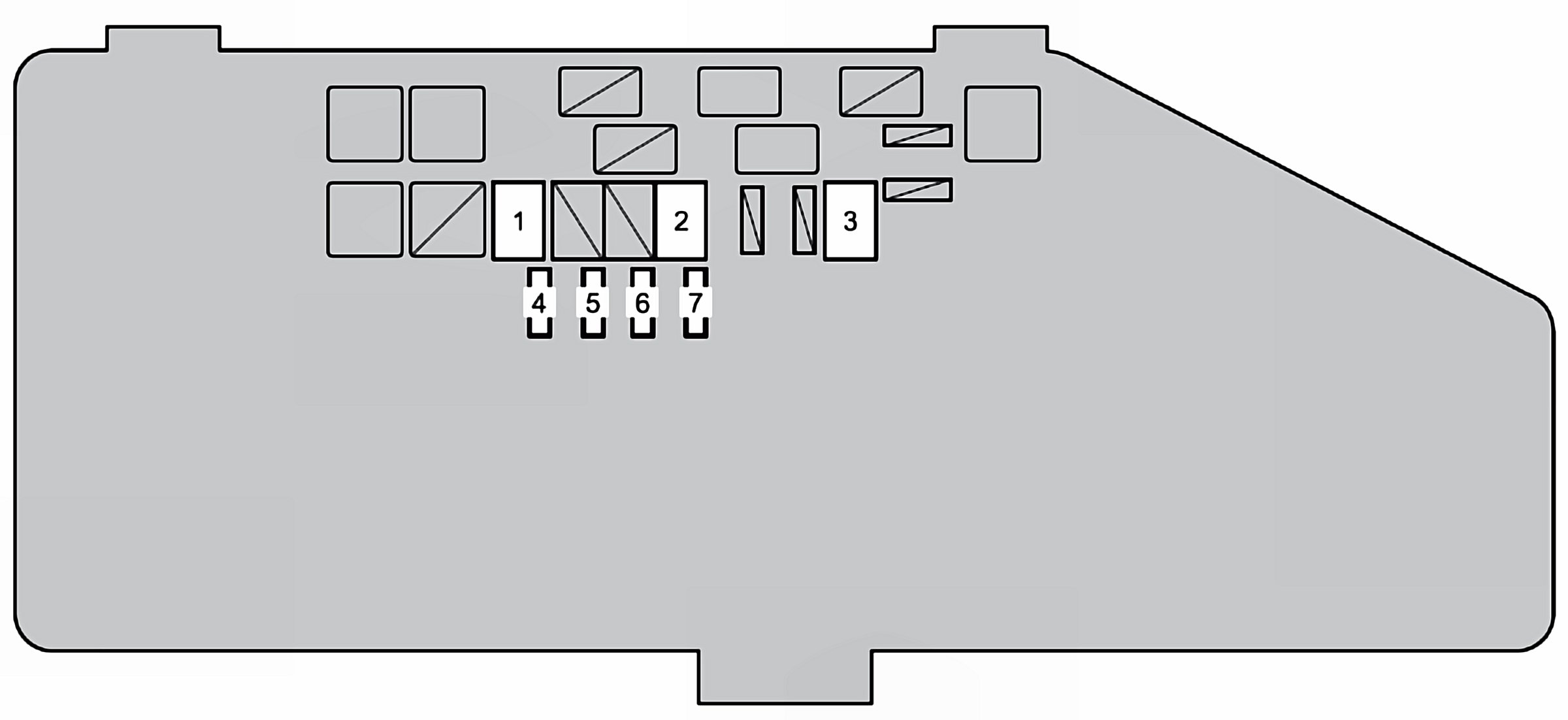

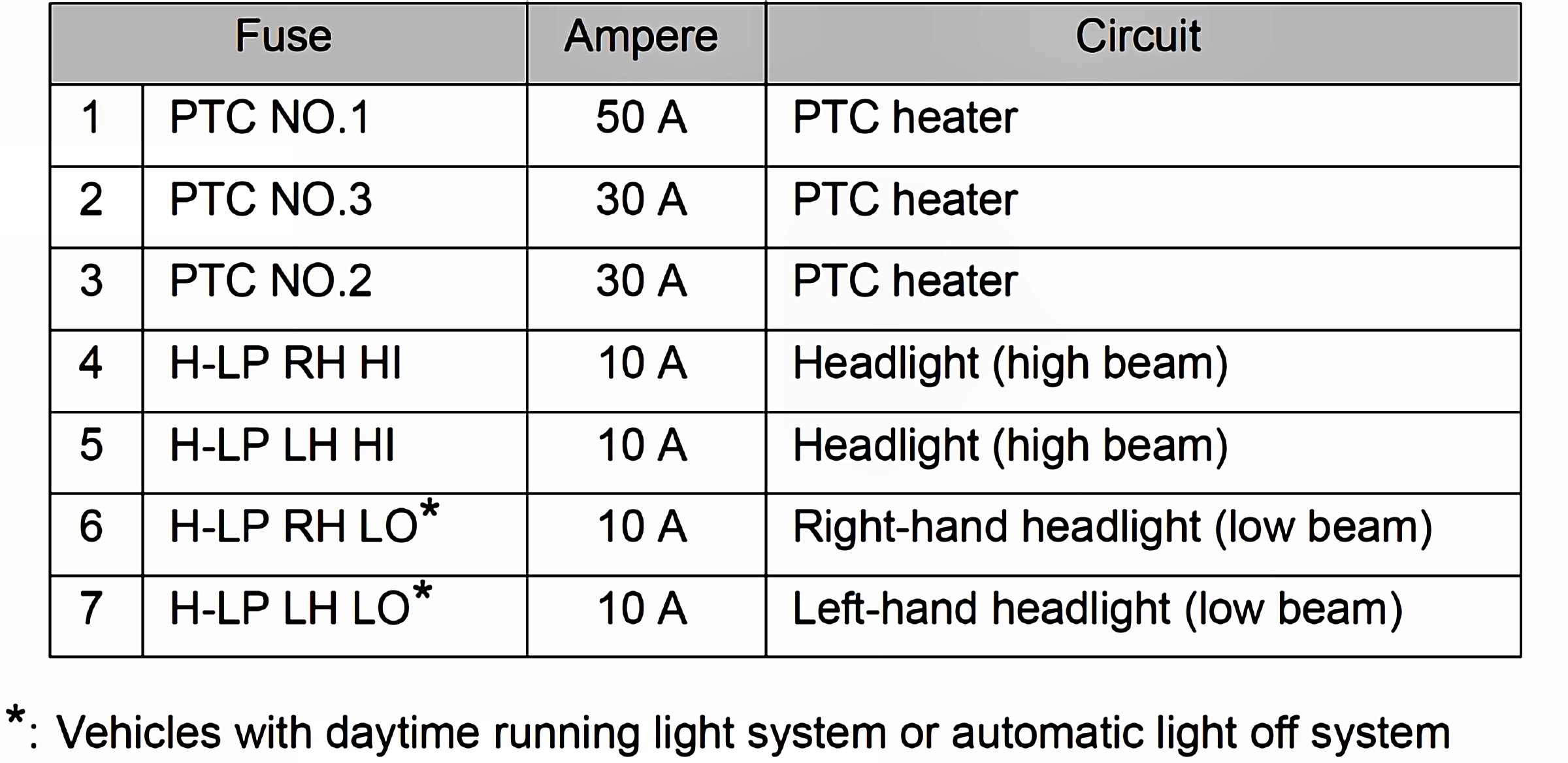

Fuses 1-7:

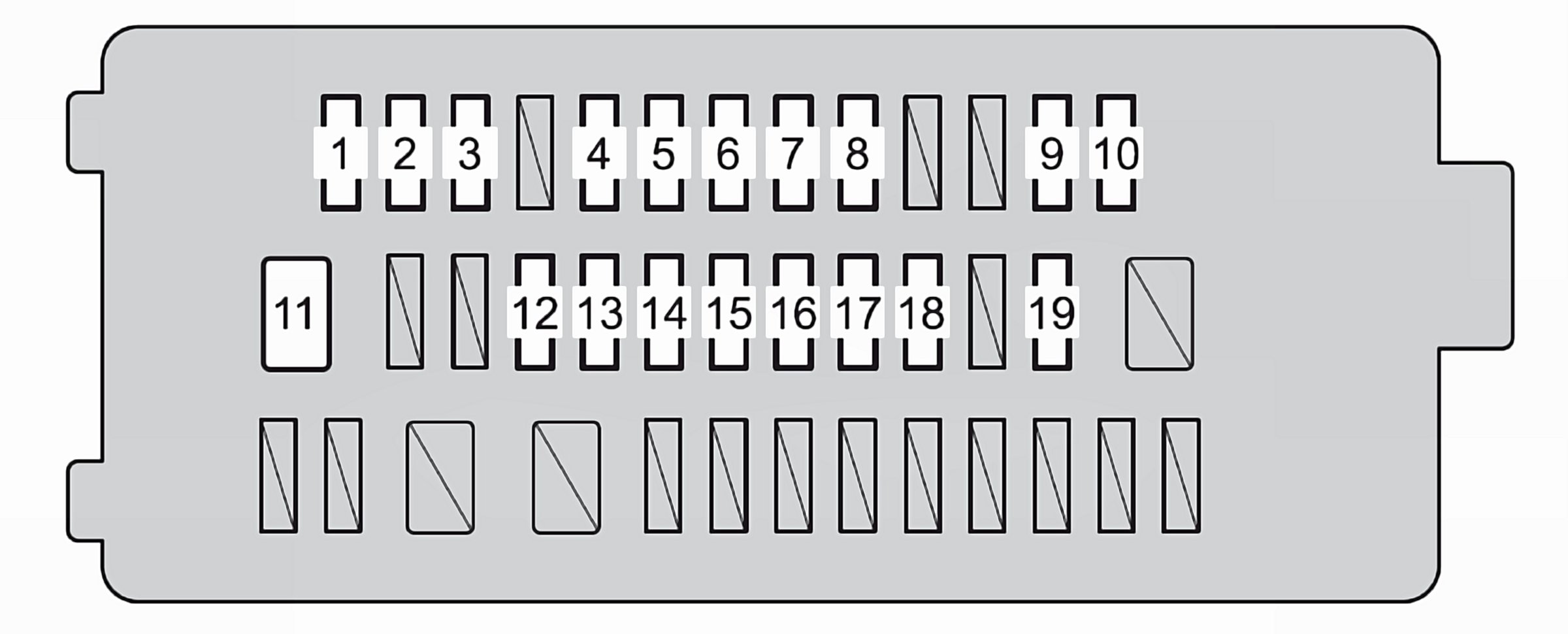

Driver's Side Instrument Panel:

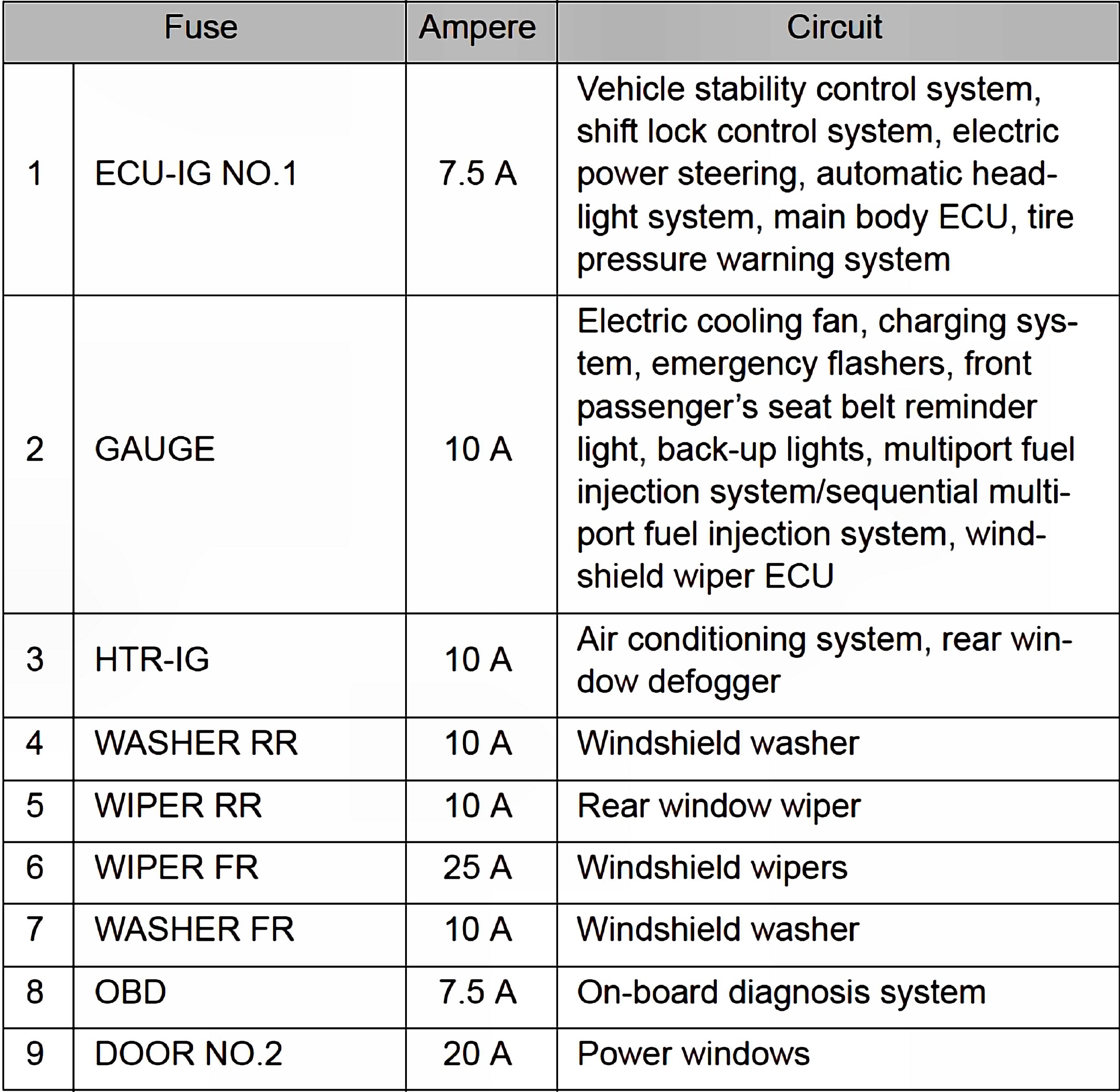

Fuses 1-9:

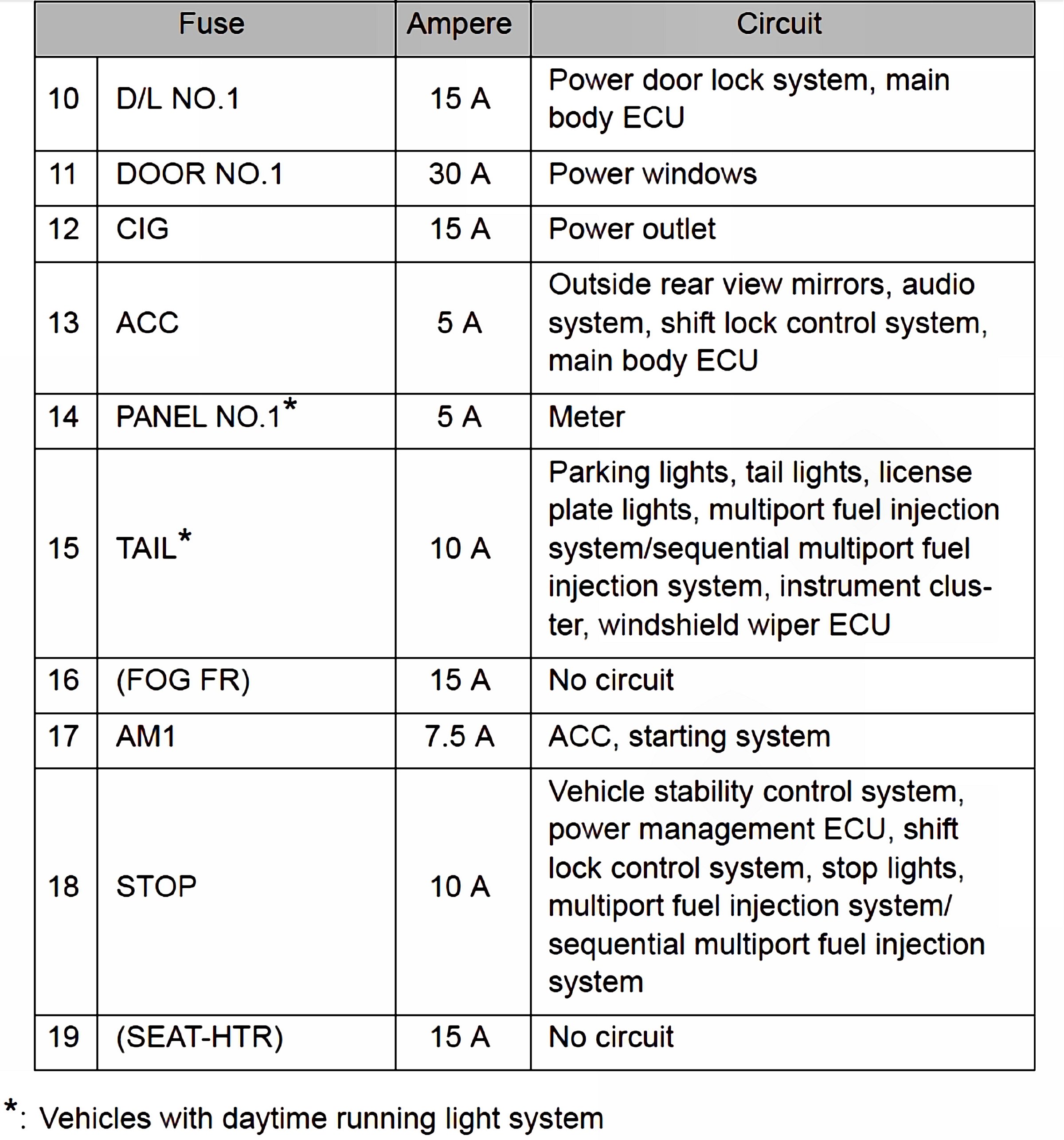

Fuses 10-19:
