Cabin Air Filter / Purifier: Service and Repair

Air Conditioning Filter
The air conditioning filter must be cleaned or changed regularly to
maintain air conditioning efficiency.

Removal

Step 1
Turn the engine switch to the LOCK position.

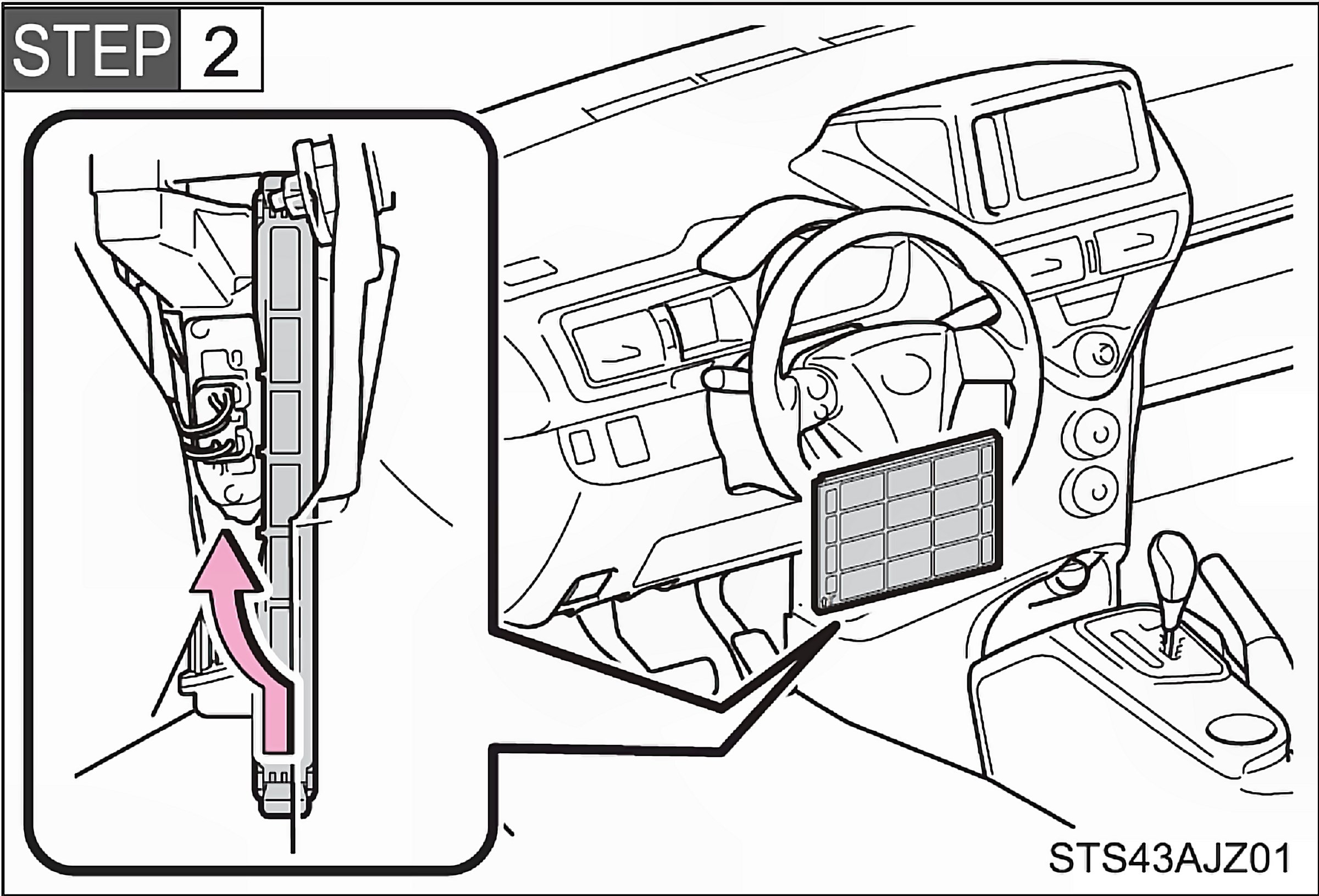

Step 2
Remove the filter cover.

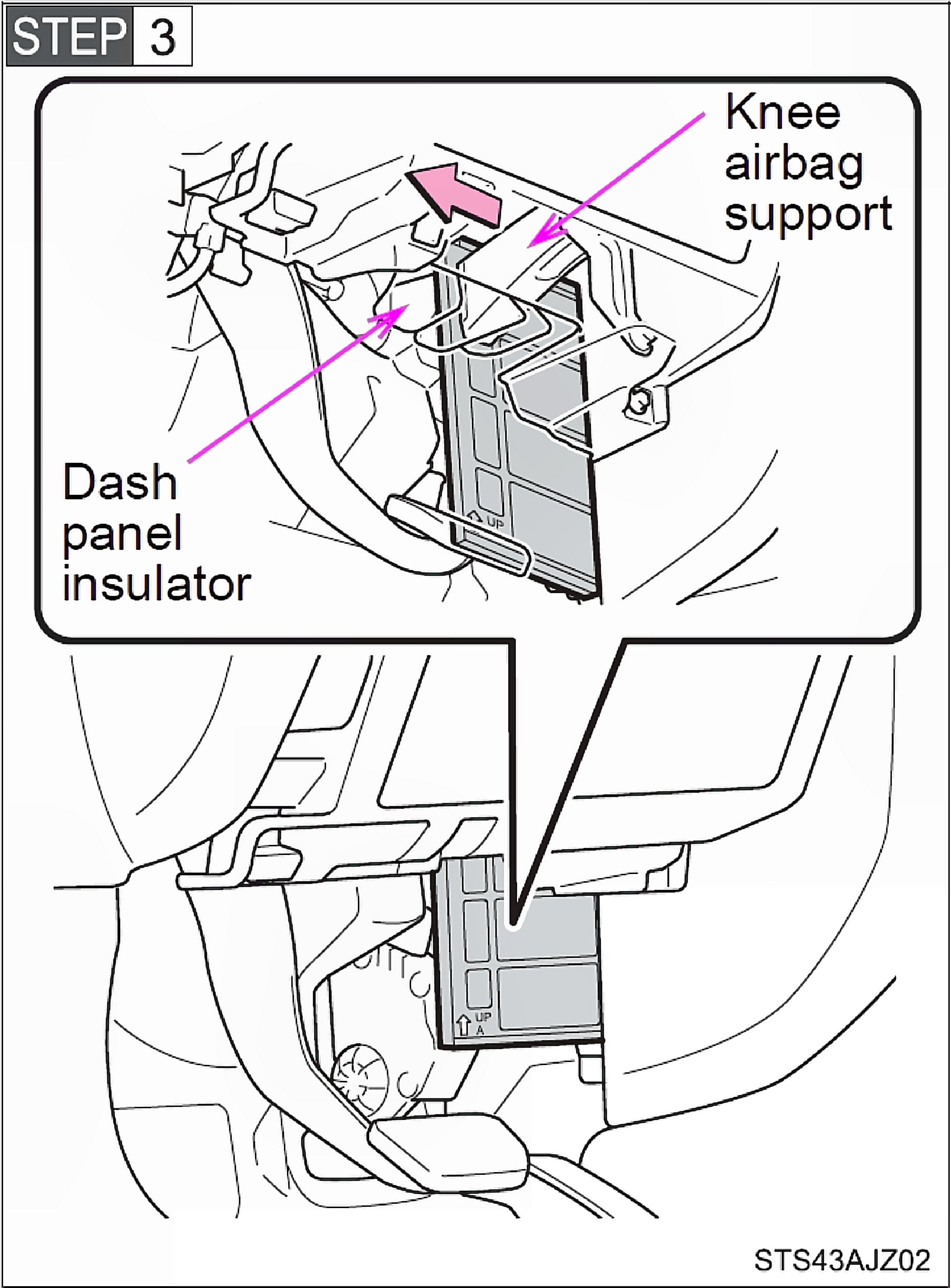

Step 3
Remove the air conditioning filter from between the knee airbag support and dash panel insulator.

When removing the air conditioning filter, make sure that dust or dirt does not enter the air conditioning system.

Replacement
Replacing the air conditioning filter with a new one.

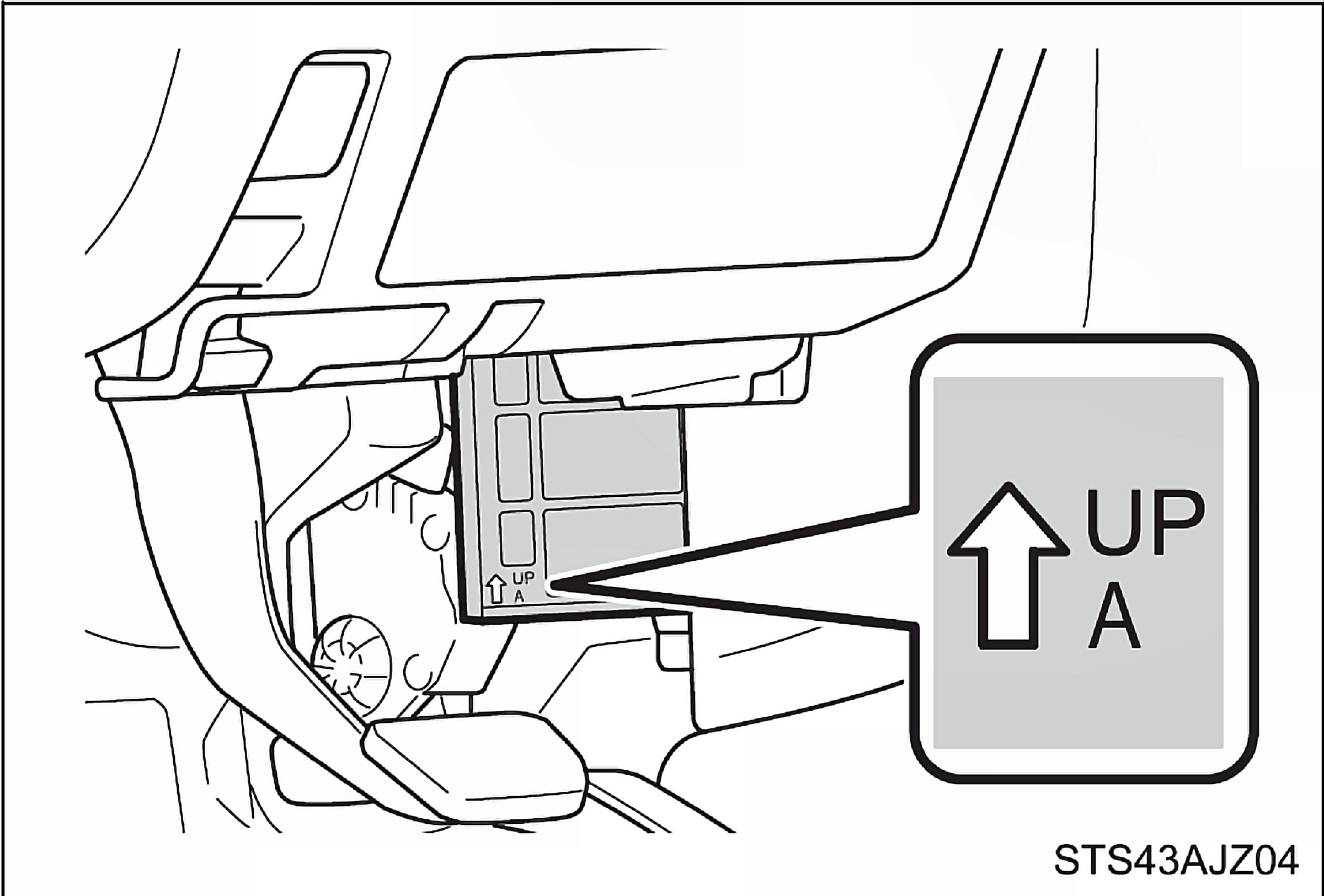

Type A

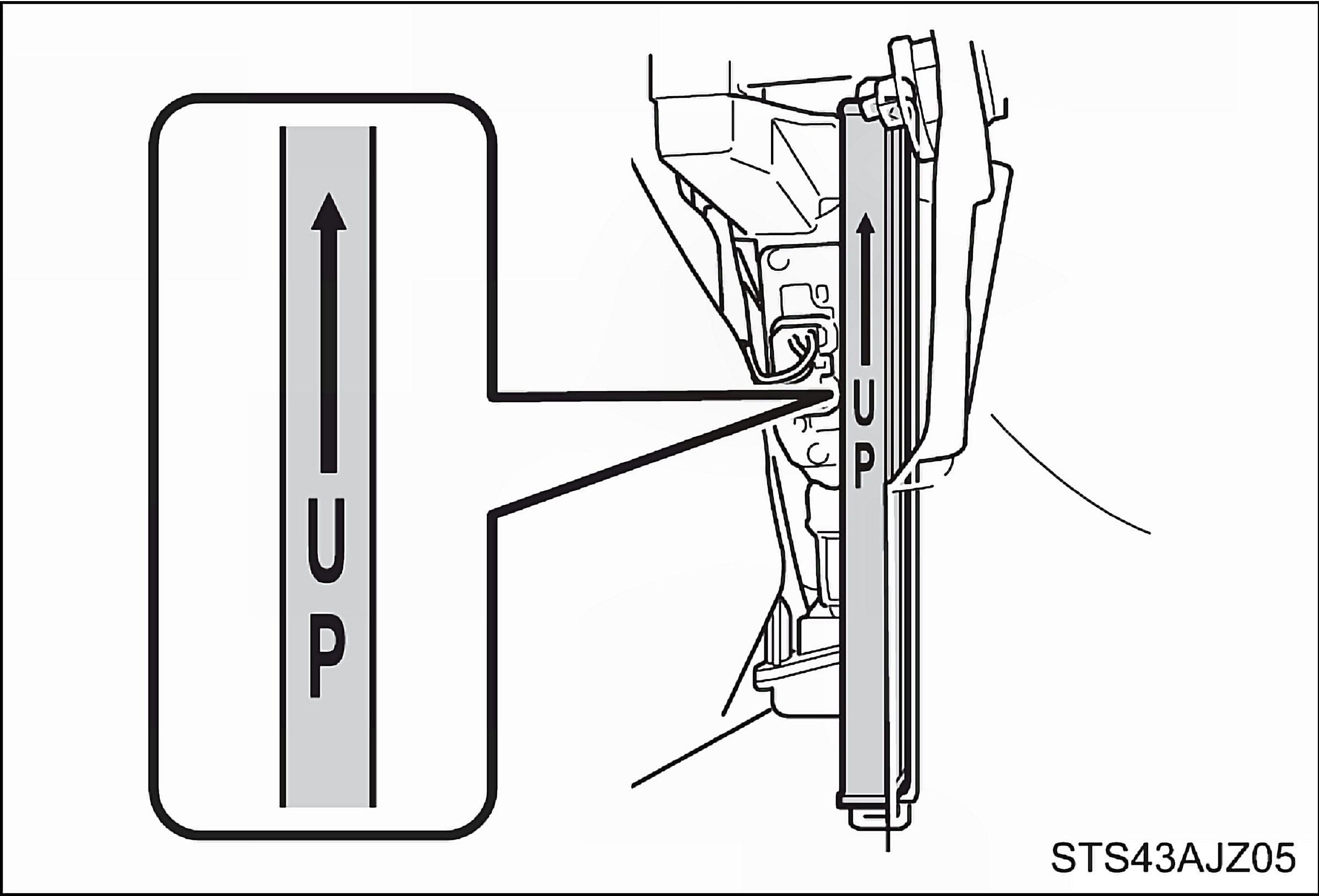

Type B

NOTE: The "UP" marks shown on the filter should be pointing up.
