Instrument Cluster / Carrier: Locations

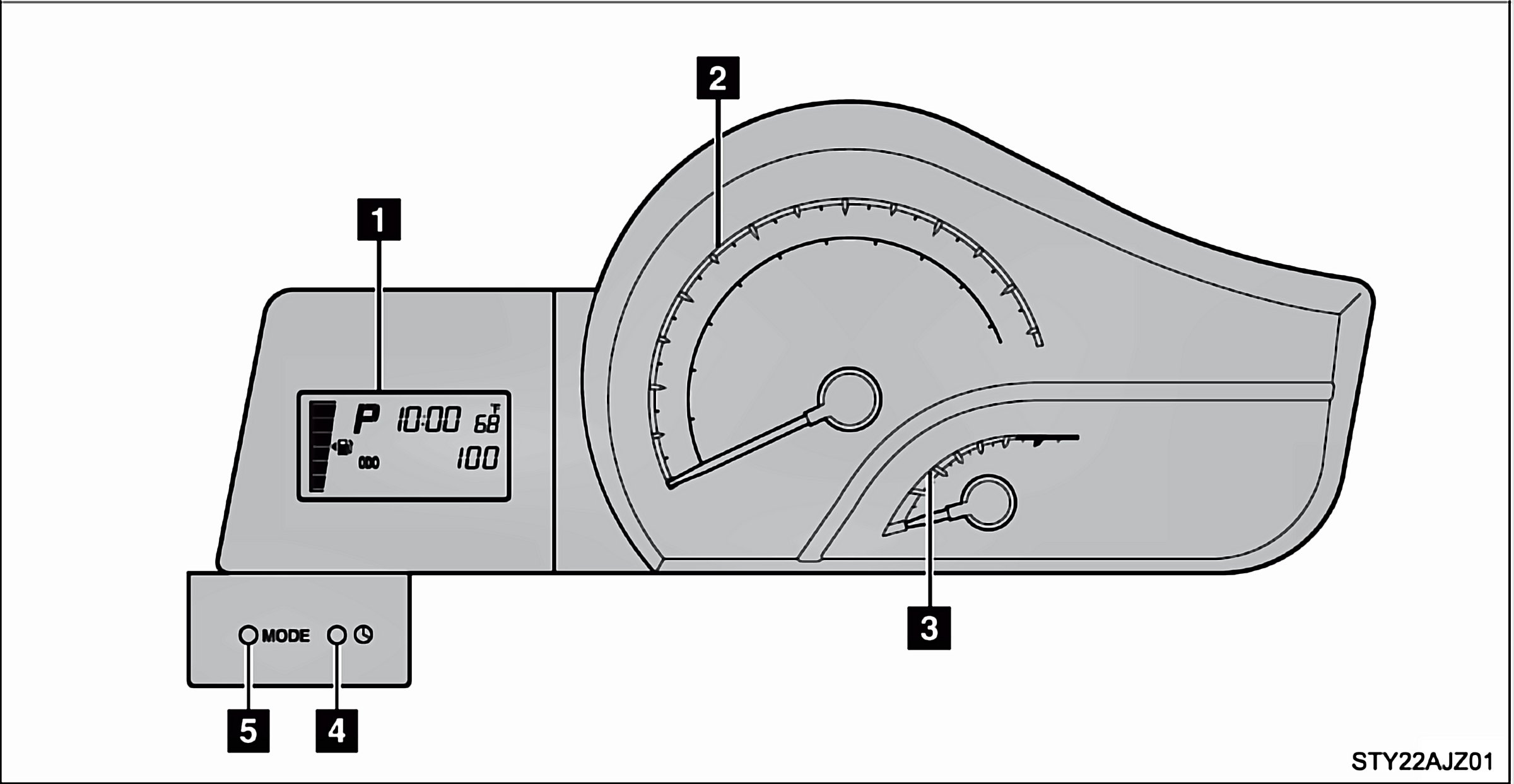

[1] Multi-information display

[2] Speedometer

[3] Tachometer

[4] Clock reset button

[5] MODE button
