FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Scion
>>
2013
>>
iQ L4-1.3L (1NR-FE)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Radiator Support
>>
Service and Repair
>>
Hood Lock Support (Assy)
Hood Lock Support (Assy)

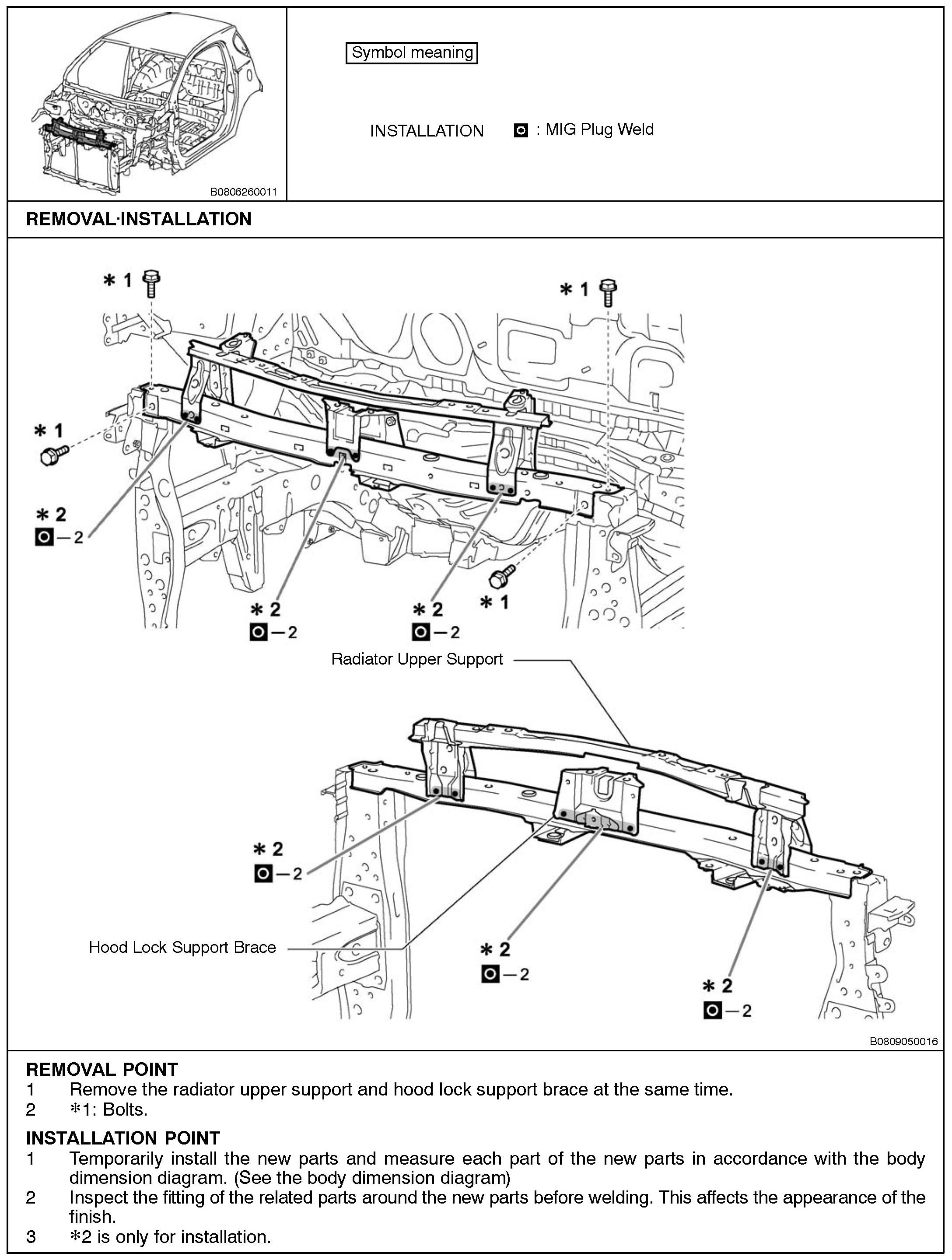

HOOD LOCK SUPPORT (ASSY)
