Electric Vehicle - EV And Auxiliary Battery Maintenance

S-SB-0026-12

October 26, 2012

Maintenance for EV & Auxiliary Batteries

Service Category
General

Section
Pre-Delivery Service

Market
USA

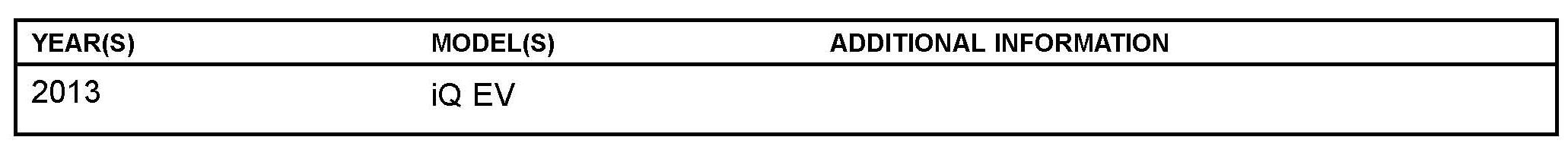

Applicability

Introduction

The iQ EV is equipped with 2 types of batteries:

^ Electric Vehicle (EV) Traction Battery

^ 12-volt Auxiliary Battery

If the iQ EV is put into storage the state of charge (SOC) of the EV battery and auxiliary battery will gradually decrease. To prevent the auxiliary battery from becoming discharged during storage proper maintenance is necessary.

Please perform the following maintenance service for the EV battery and 12-volt auxiliary battery.

NOTE

^ Before disconnecting the auxiliary battery, confirm the shift lever is in the "P" position and apply the parking brake completely. The shift lever CANNOT be shifted from the "P" position with the 12-volt auxiliary battery disconnected.

^ When the negative (-) terminal of the auxiliary battery is reconnected, the EV system may not operate if the vehicle is already in "Ready On" state. If this occurs, push the Start/Stop switch to re-initiate the "Ready On" mode. The "Ready" light should illuminate on the Instrument Panel. If the EV system will not "Ready On", refer to the Repair Manual for diagnosis.

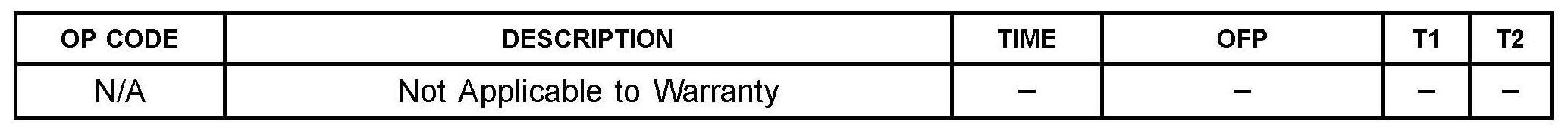

Warranty Information

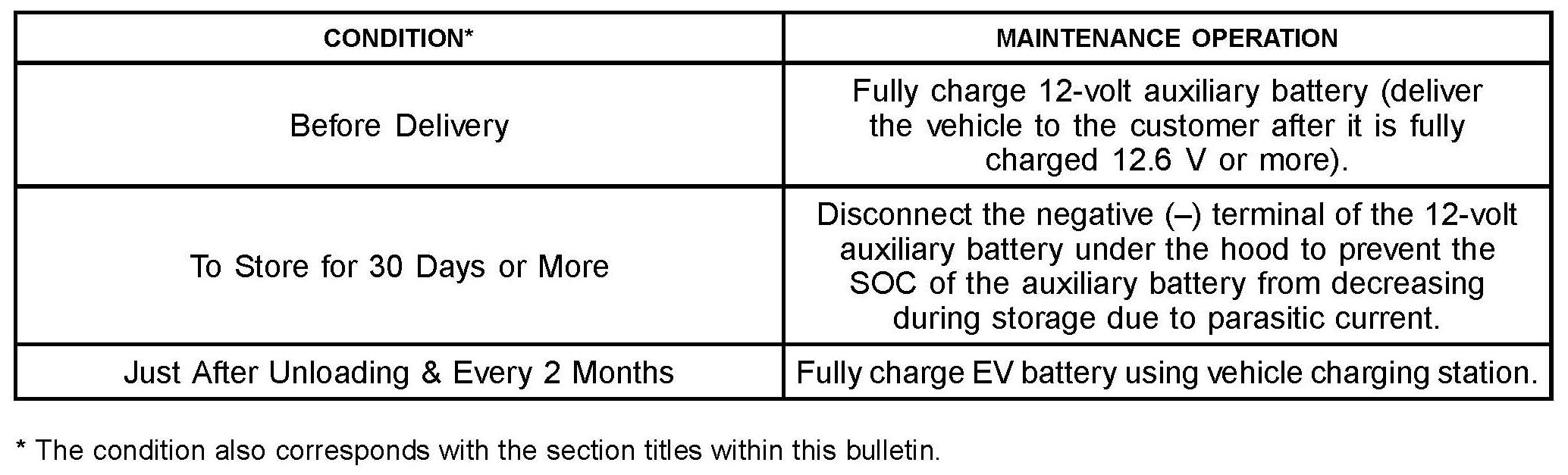

Maintenance Items

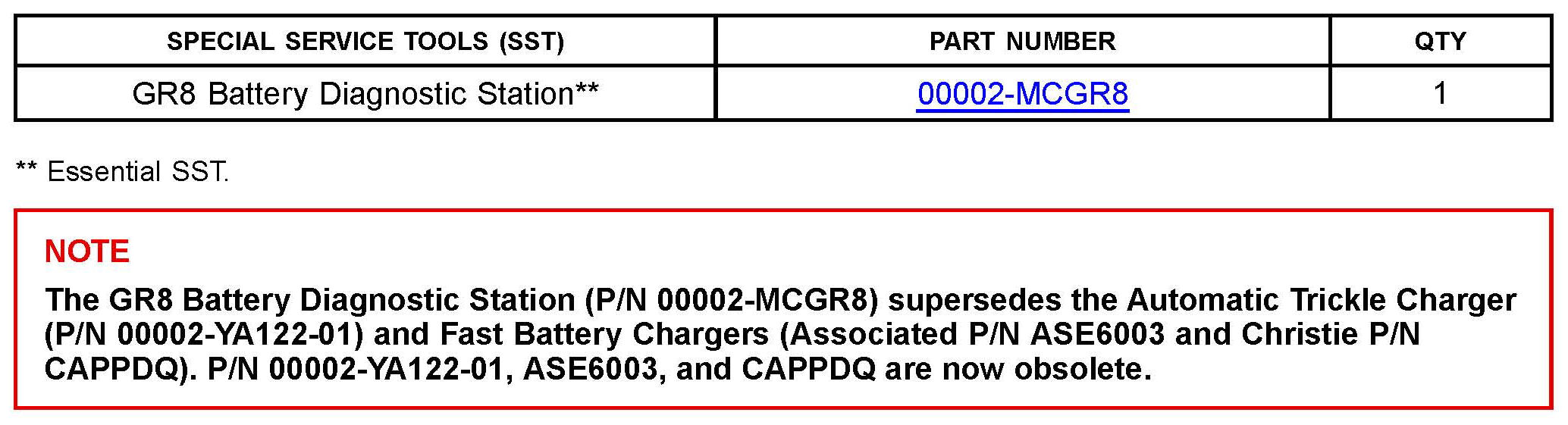

Required Tools & Equipment

Before Delivery

Fully charge the 12-volt auxiliary battery:

1. Before charging the auxiliary battery turn OFF vehicle lights and accessories.

2. Open the hood.

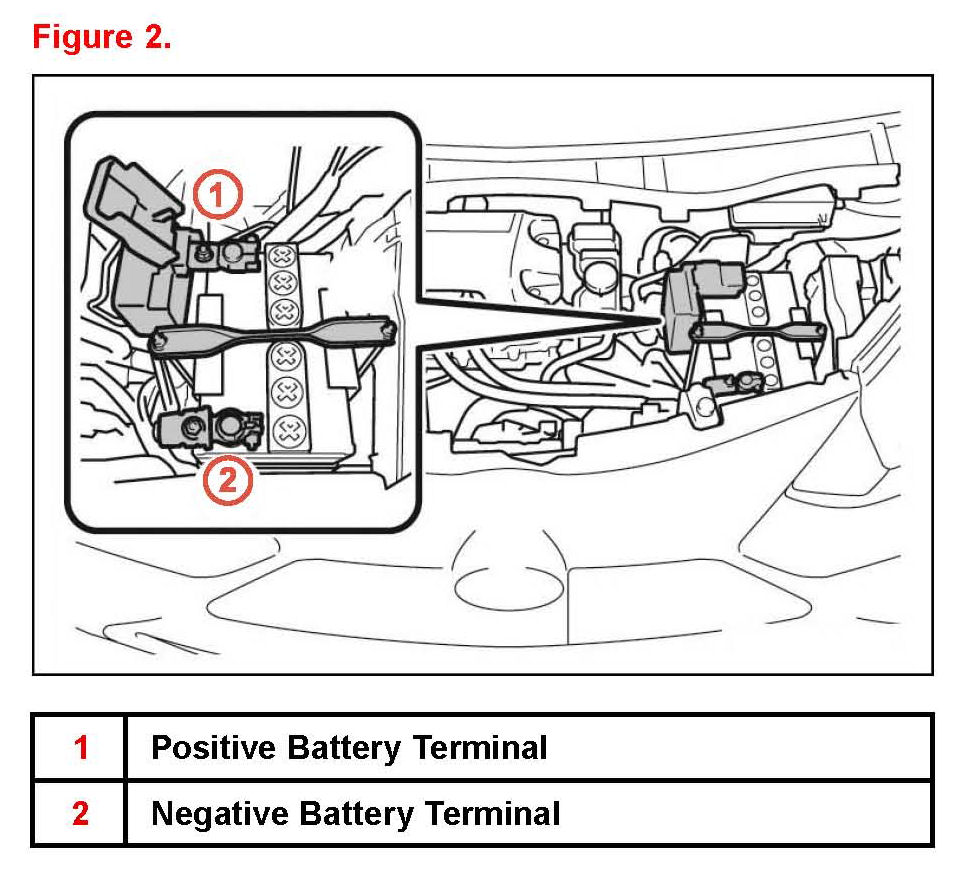

3. Remove the positive (+) terminal cover.

4. Check the battery SOC.

^ If the battery voltage is LESS THAN 12.6 \4 then continue to step 5.

^ If the battery voltage is 12.6 V or MORE replace the positive (+) terminal cover and close the hood.

NOTE
If measuring the voltage with the negative (-) terminal connected, turn vehicle OFF and turn ON the headlights for 20 to 30 seconds. This will remove the surface charge from the battery.

5. Test/charge the 12-volt auxiliary battery using the GR8 Battery Diagnostic Station.

A. Connect the red charger clamp to the positive (+) battery terminal and the black charger clamp to the negative (-) battery terminal.

B. Plug the charger into a grounded 110-volt nominal outlet and flip the power switch to the "ON" position.

C. Once the charger is properly turned ON perform a diagnostic charge.

The GR8 Battery Diagnostic Station will indicate result when complete.

If the battery tests bad ("Replace Battery") then replace the auxiliary battery.

NOTE

If the auxiliary battery was stored at 32°F (0°C) or below, charge the auxiliary battery in a room above 32°F (0°C).

CAUTION

^ Charge in a well-ventilated area.

^ Do NOT allow sparks or fire near the auxiliary battery.

If the GR8 Battery Diagnostic Station is NOT available, you may charge the 12-volt battery by cycling the vehicle on to "READY:"

^ Run time will vary depending on the state of charge.

^ If this method is used, you must confirm that the battery is charged to 12.8 volts using a DVOM.

6. After charging the auxiliary battery, install the positive (+) terminal cover.

7. Close the hood.

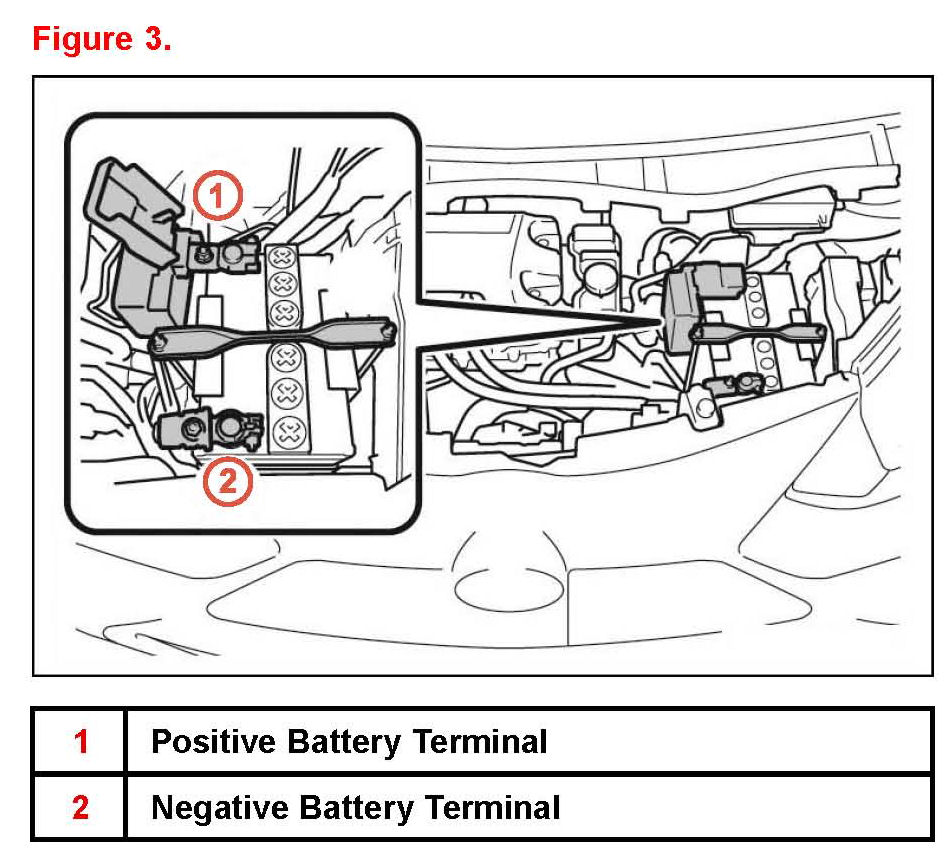

To Store for 30 Days or More Disconnect the negative (-) terminal:

1. Turn OFF vehicle lights and accessories.

2. Open the hood.

3. Disconnect the negative (-) terminal.

4. Close the hood.

NOTE
When it is necessary to move the vehicle, reconnect the negative (-) terminal.

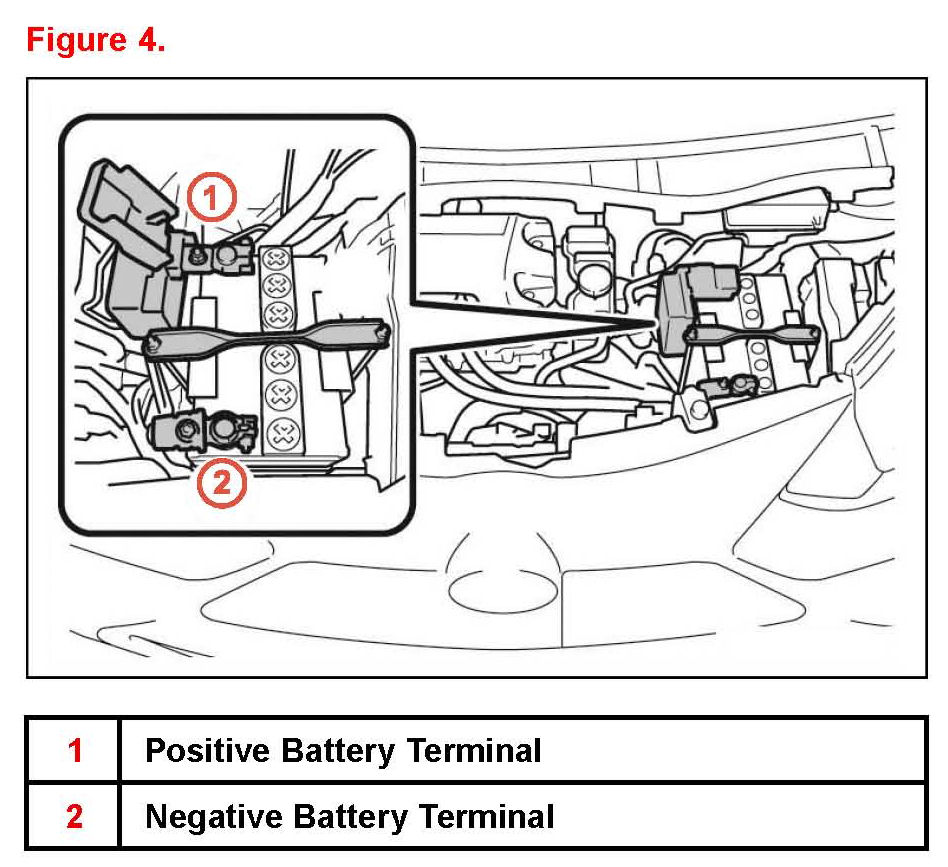

When removing the vehicle from storage, connect the negative (-) terminal:

1. Open the hood.

2. Connect the negative (-) terminal. Torque: 6.0 N*m (61 kgf*cm, 4.4 ft*lbf)

3. Close the hood.

NOTE
When the negative (-) terminal of the auxiliary battery is reconnected, the EV system may not operate if the vehicle is already in "Ready On" state. If this occurs, push the Start/Stop switch to re-initiate the "Ready On" mode. The "Ready" light should illuminate on the Instrument Panel. If the EV system will not "Ready On" refer to the repair manual for diagnosis.

Every Two Months

NOTE
Be sure to reconnect the negative (-) terminal of the auxiliary battery BEFORE performing this procedure.

1. Park the vehicle next to the EV Charging Station.

2. Apply the parking brake.

3. Turn OFF vehicle lights and accessories.

4. Check that the shift lever is in the "P" position.
