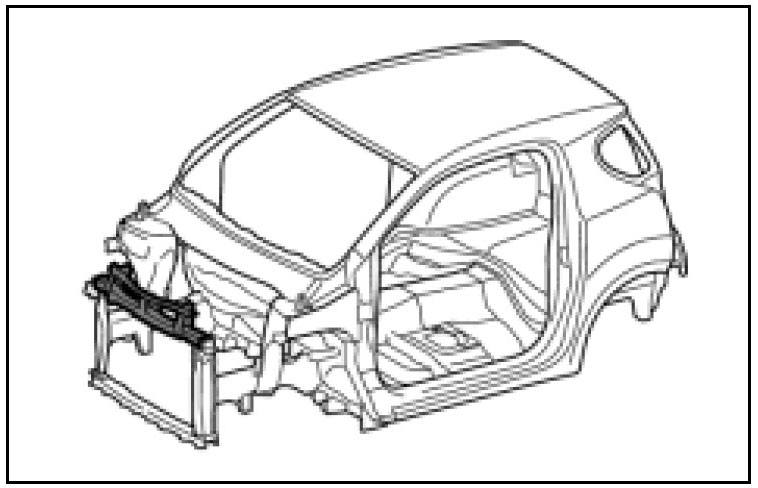

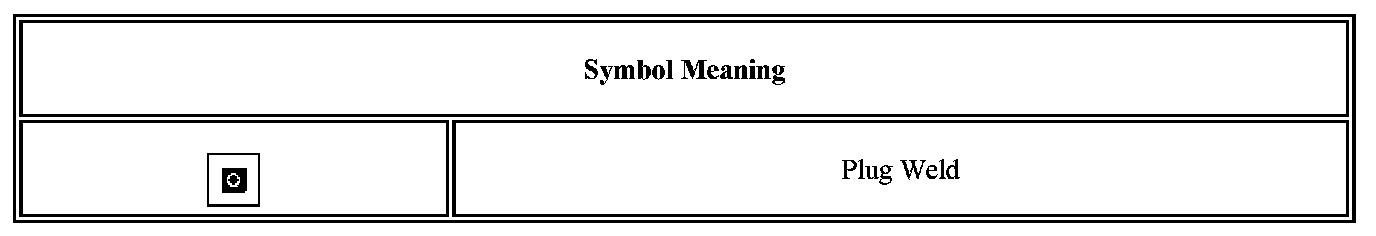

Radiator Upper Support

ASSEMBLY REPLACEMENT







1. REMOVAL

REMOVAL POINT

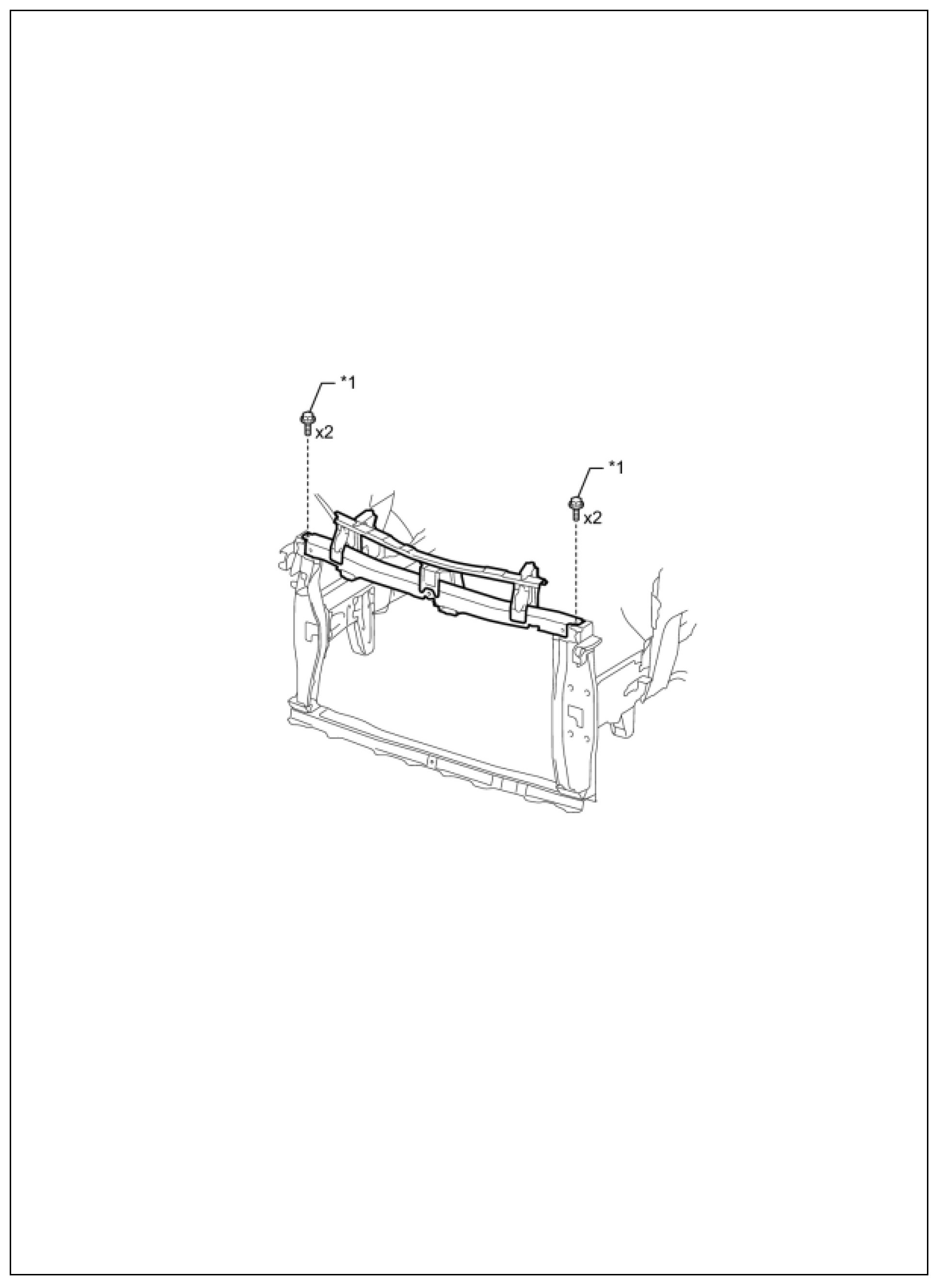

1. *1 in the illustration indicates the bolts.







2. INSTALLATION







INSTALLATION POINT

1. Inspect the fitting of the related parts around the new parts before welding. This affects the appearance of the finish.
2. Temporarily install the new parts and measure each part of the new parts in accordance with the body dimension diagram. (See the body dimensions)

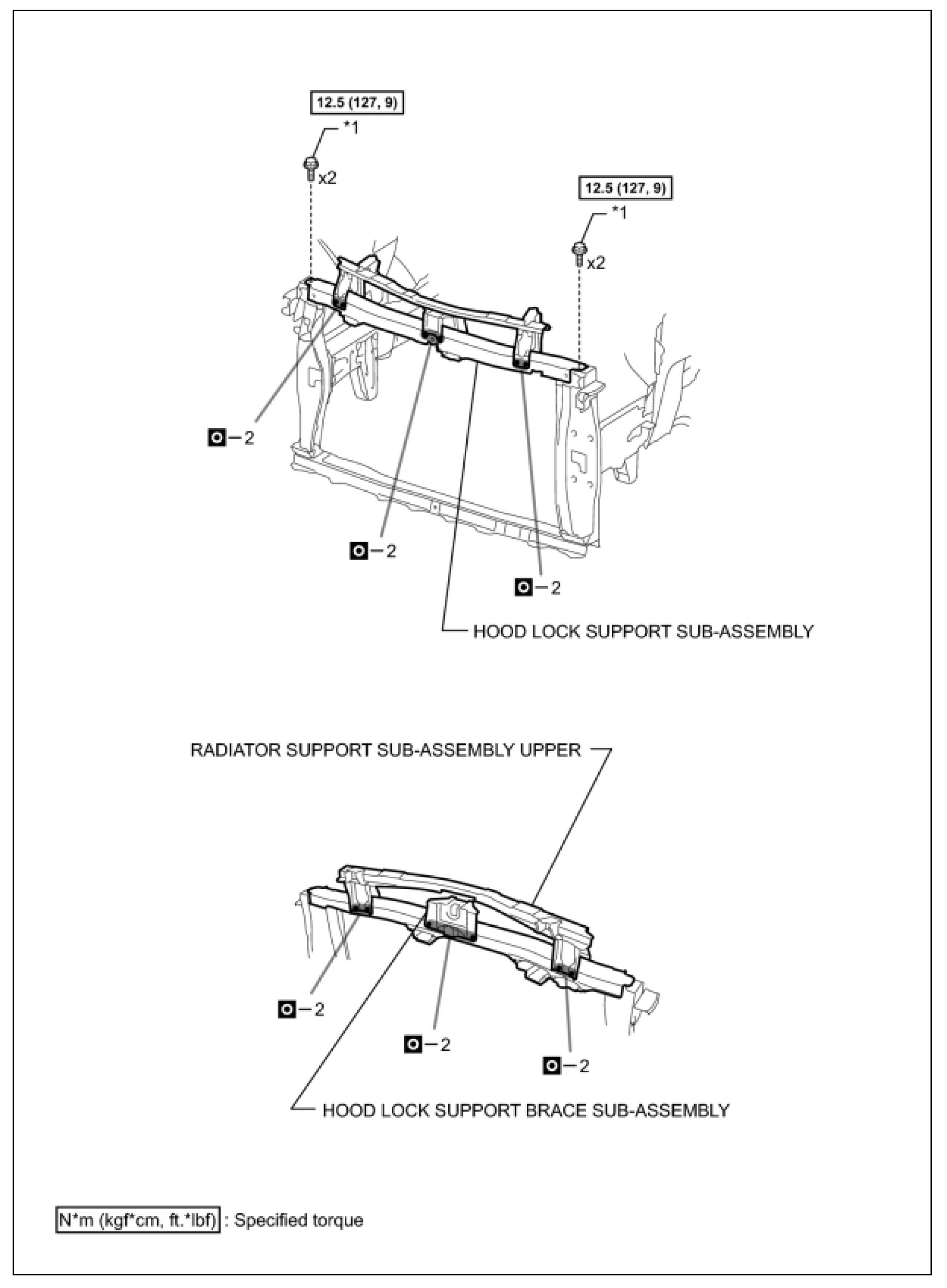

3. *1 in the illustration indicates the bolts.
4. After applying the top coat, apply anti-rust agent to the internal panel portion of the closed section structural weld points.
