Body Emblem: Service and Repair

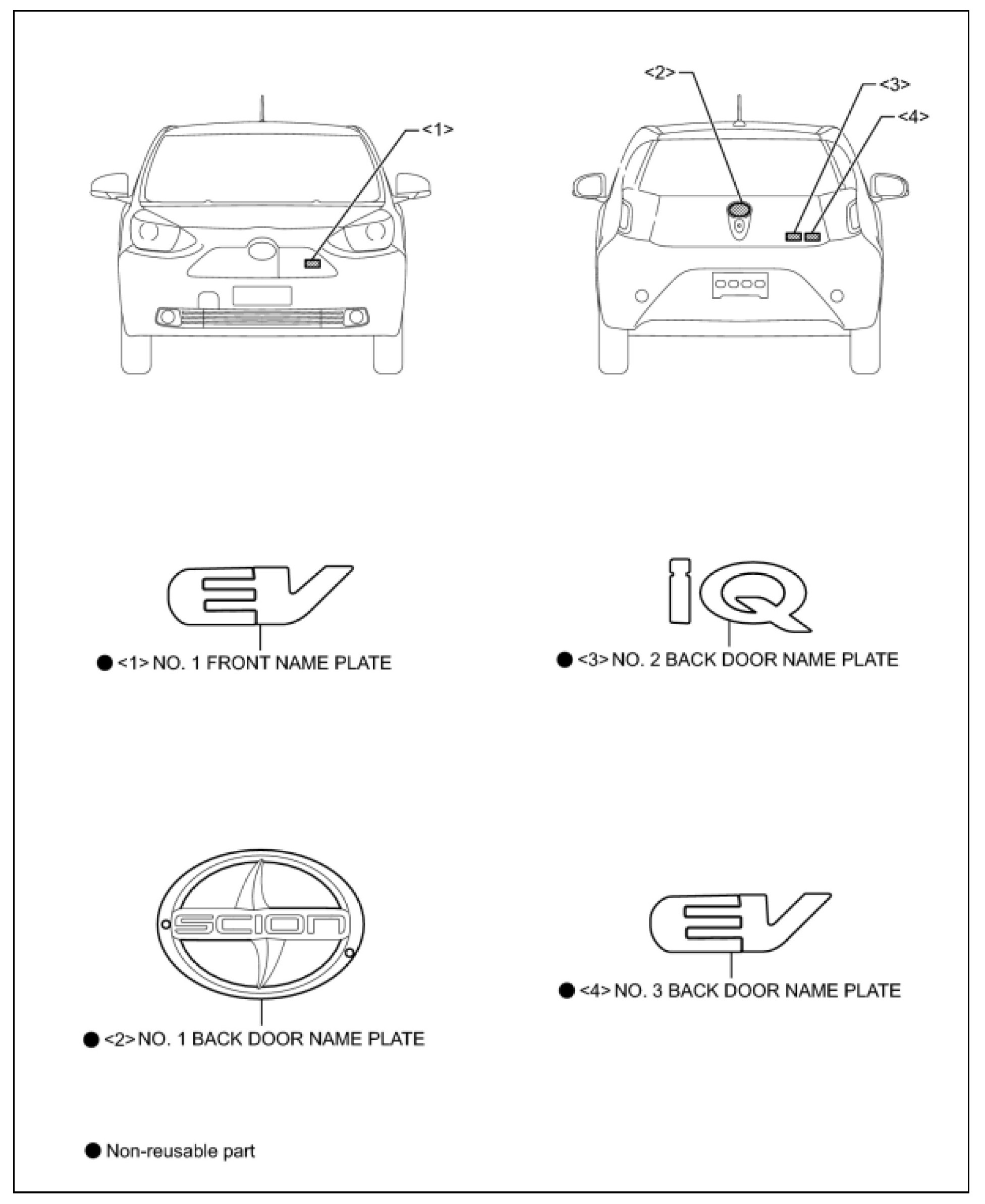

ATTACHMENT POSITION

1. Heat the double-sided tape remaining on the body with an infrared lamp or equivalent.

HINT: Heat the tape to 40 to 60° C for approximately 1 to 2 minutes.

2. Wipe off the remaining double-sided tape using a clean cloth or equivalent.

NOTICE: If a name plate is installed without thoroughly removing the remaining double-sided tape from the body, the name plate will not adhere properly. Make sure to thoroughly wipe off the double-sided tape.

3. After cleaning the installation area of the body with degreasing agent, attach the name plate to the position shown in the illustration.

HINT: The working environment should be 20° C when installing the name plate. If the working environment is below 20° C, heat the installation area of the body to 20 to 30° C and then install the name plate.

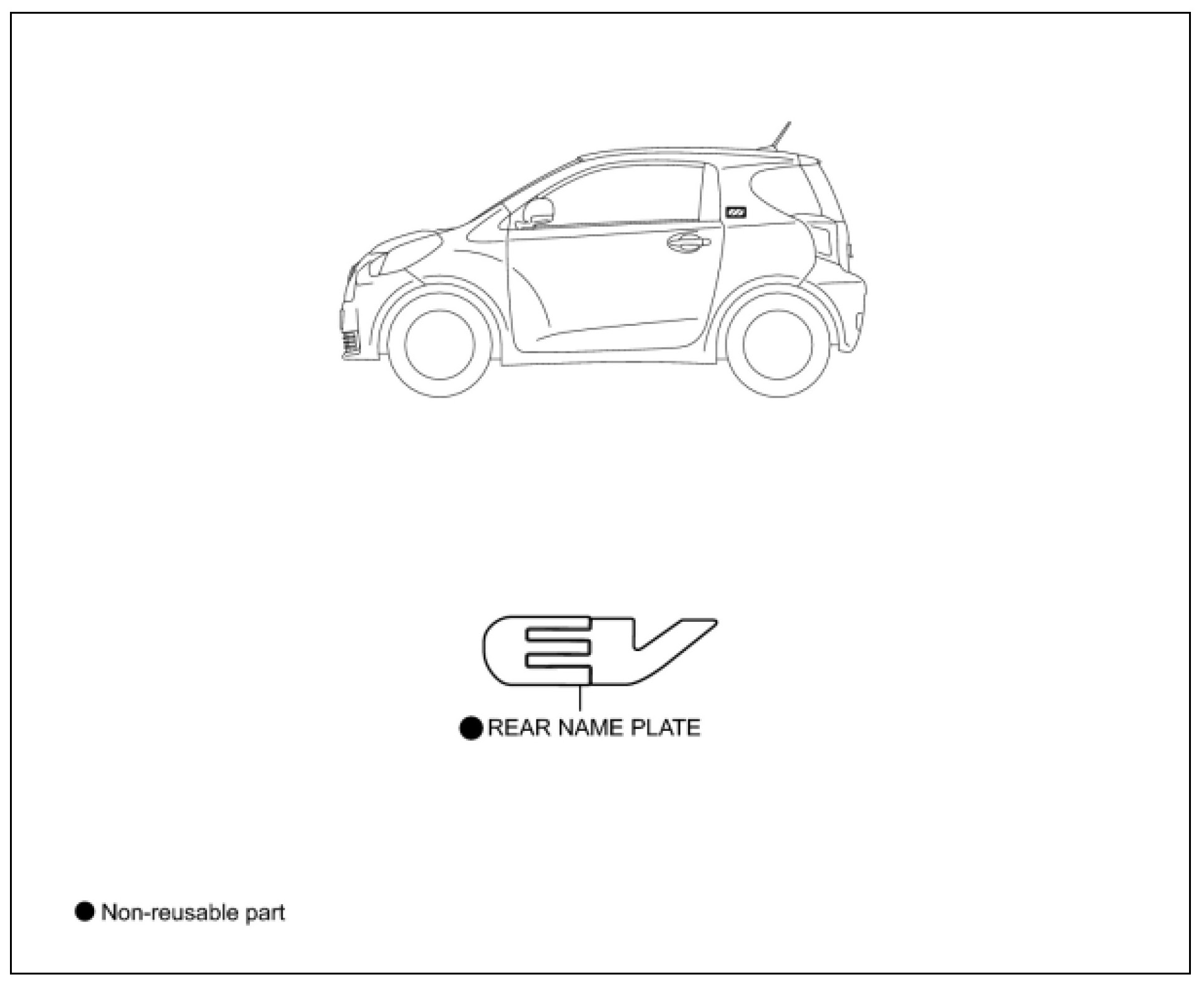

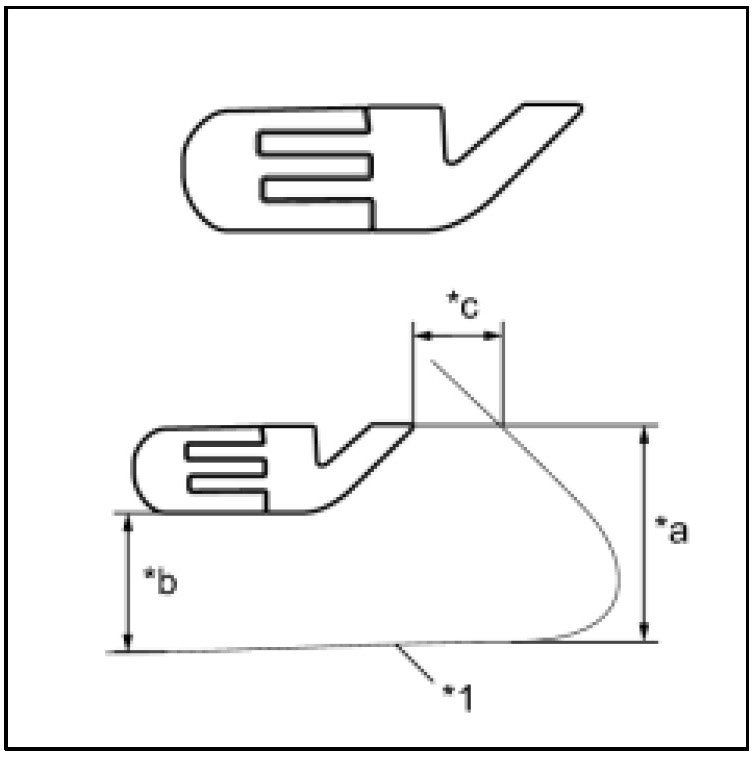

1. REAR NAME PLATE

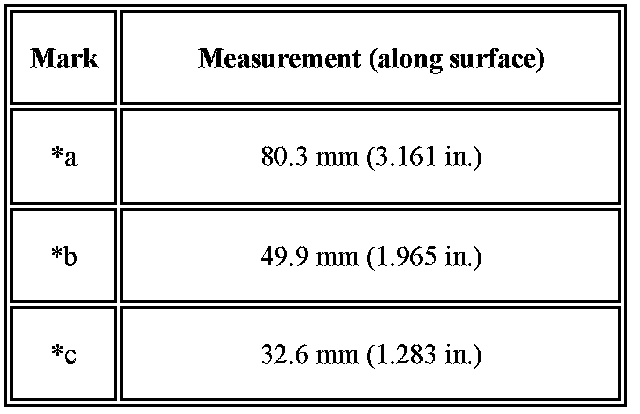

Installation Position:

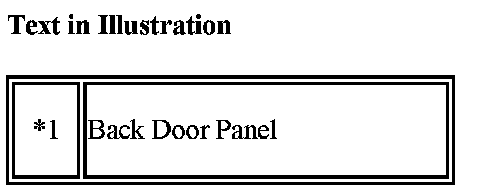

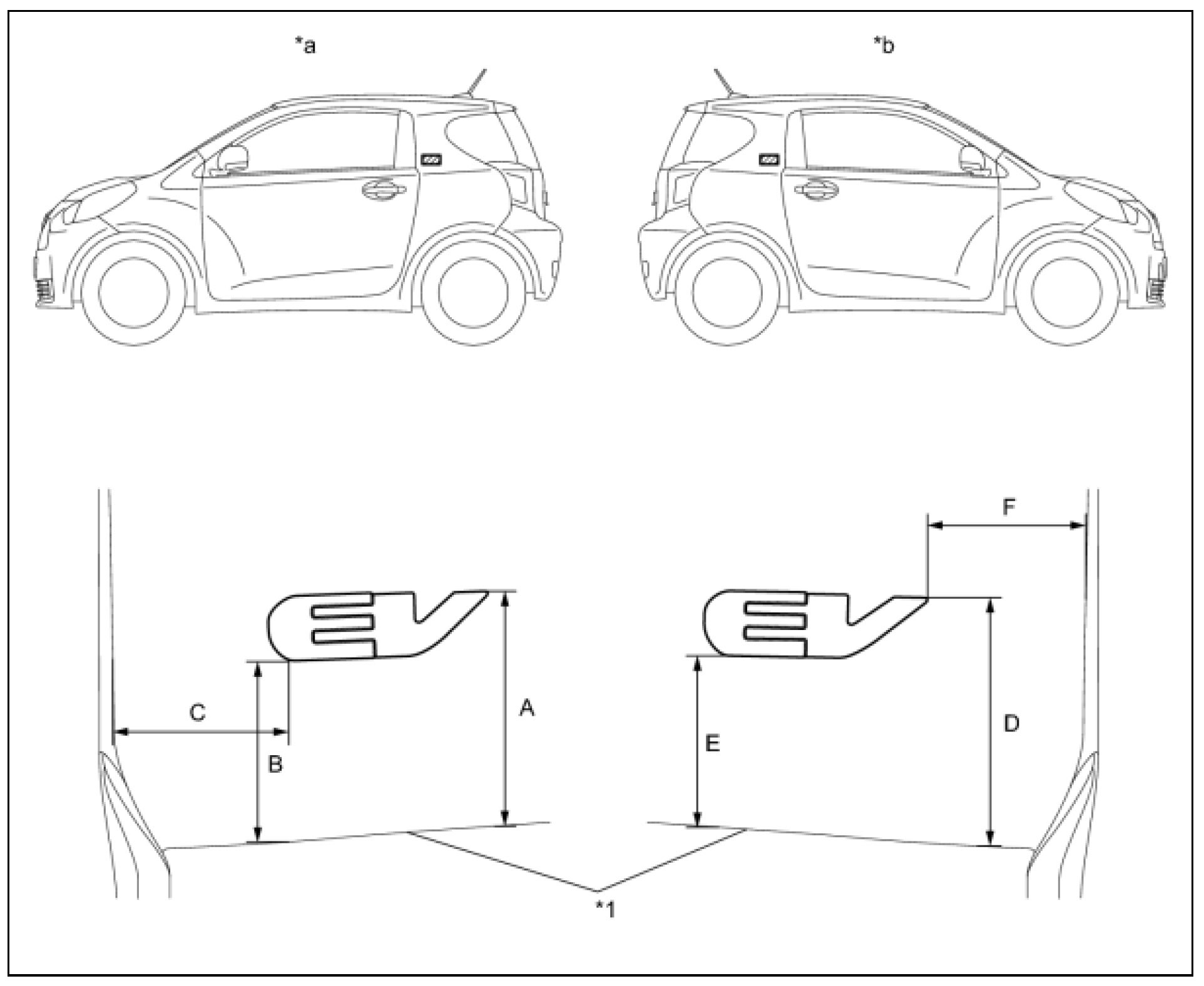

2. NO. 3 BACK DOOR NAME PLATE

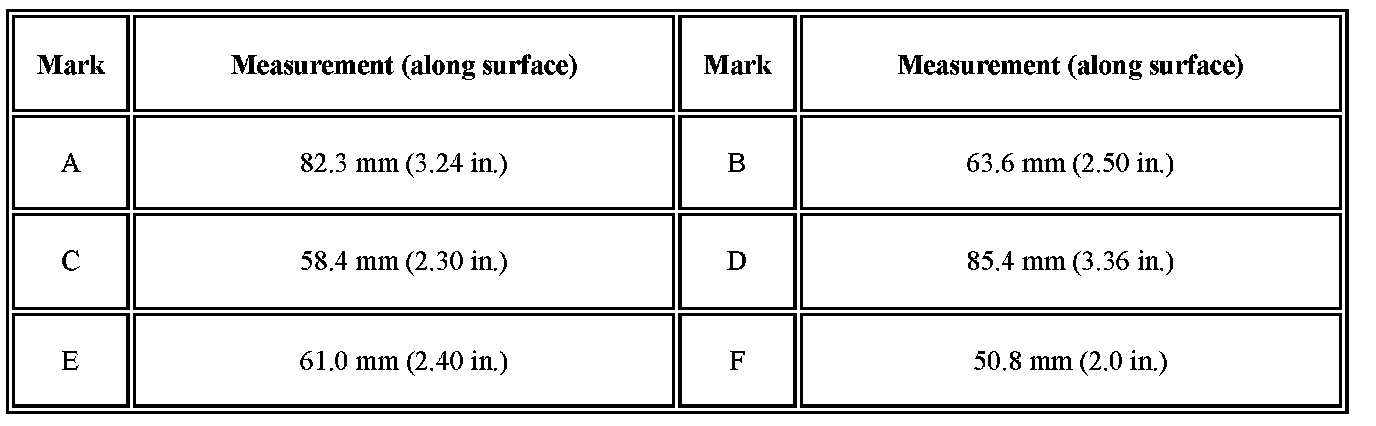

Installation Position:

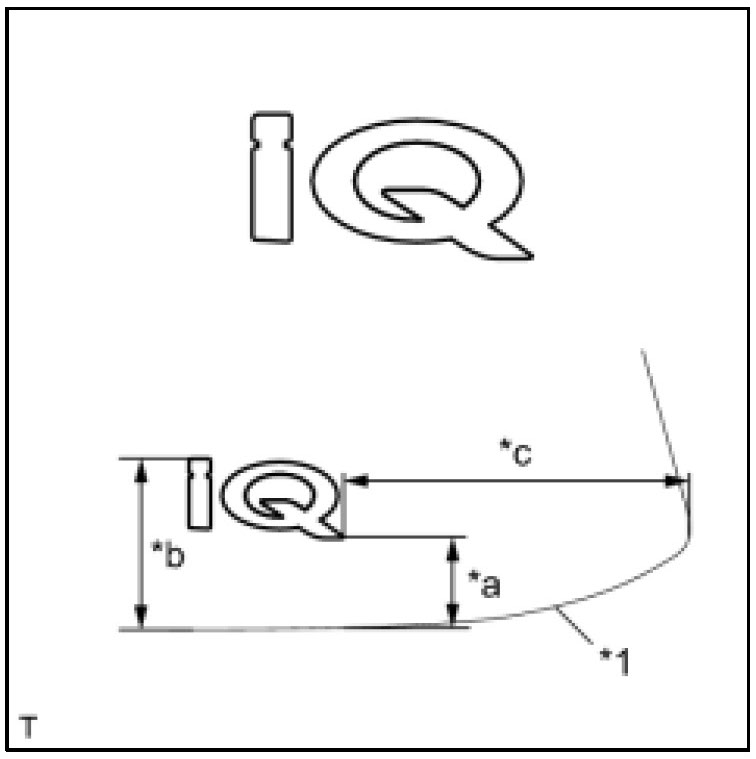

3. NO. 2 BACK DOOR NAME PLATE










Installation Position:

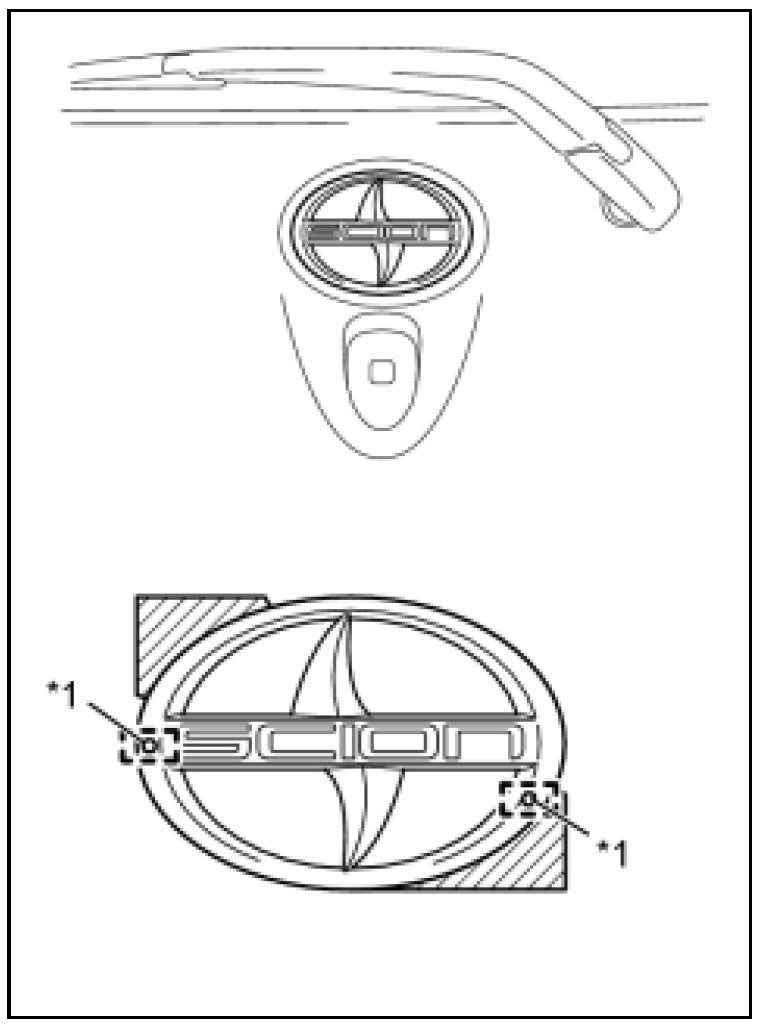

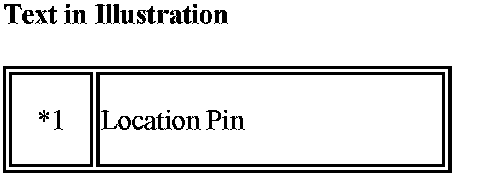

4. NO. 1 BACK DOOR NAME PLATE

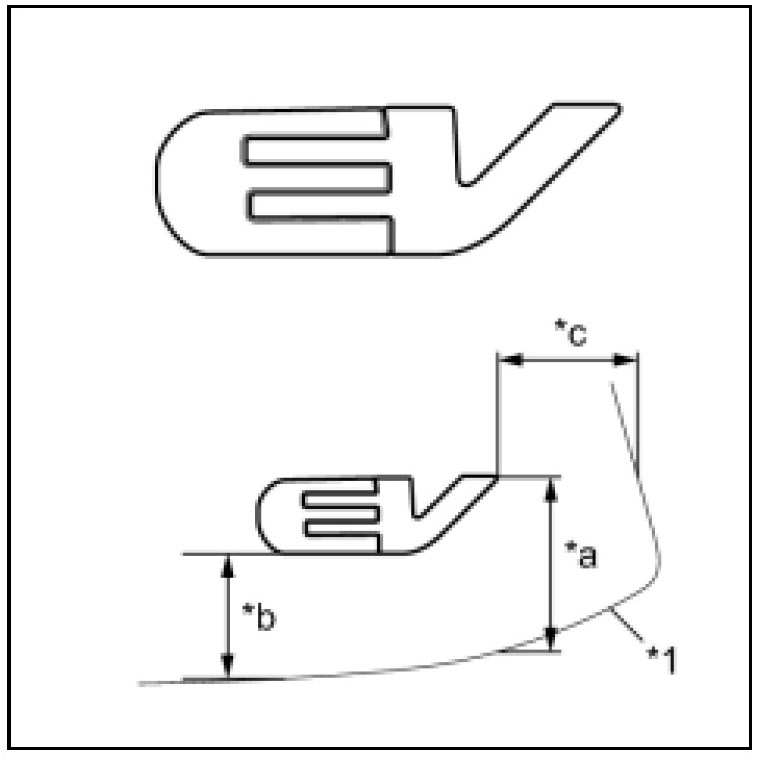

5. NO. 1 FRONT NAME PLATE










Installation Position:
