WIPER AND WASHER: REAR WIPER MOTOR: INSPECTION

1. INSPECT REAR WIPER MOTOR





(a) Check the operation.

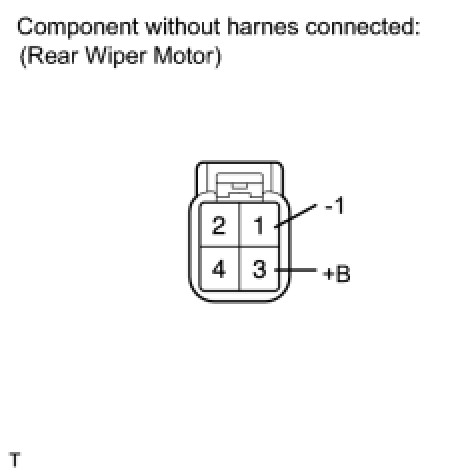

(1) Connect the positive battery (+) lead to terminal 3 (+B) and the negative battery (-) lead to terminal 1 (-1), and check that the rear wiper motor operates.

OK:

The rear wiper motor operates.

NOTICE:
Check that the body ground is connected.

If the result is not as specified, replace the rear wiper motor.
