Windshield Washer Spray Nozzle: Testing and Inspection

WIPER AND WASHER: WASHER NOZZLE: ON-VEHICLE INSPECTION

1. INSPECT WASHER NOZZLE

(a) Start the engine.

(b) Check where the washer fluid hits the windshield.

Standard:

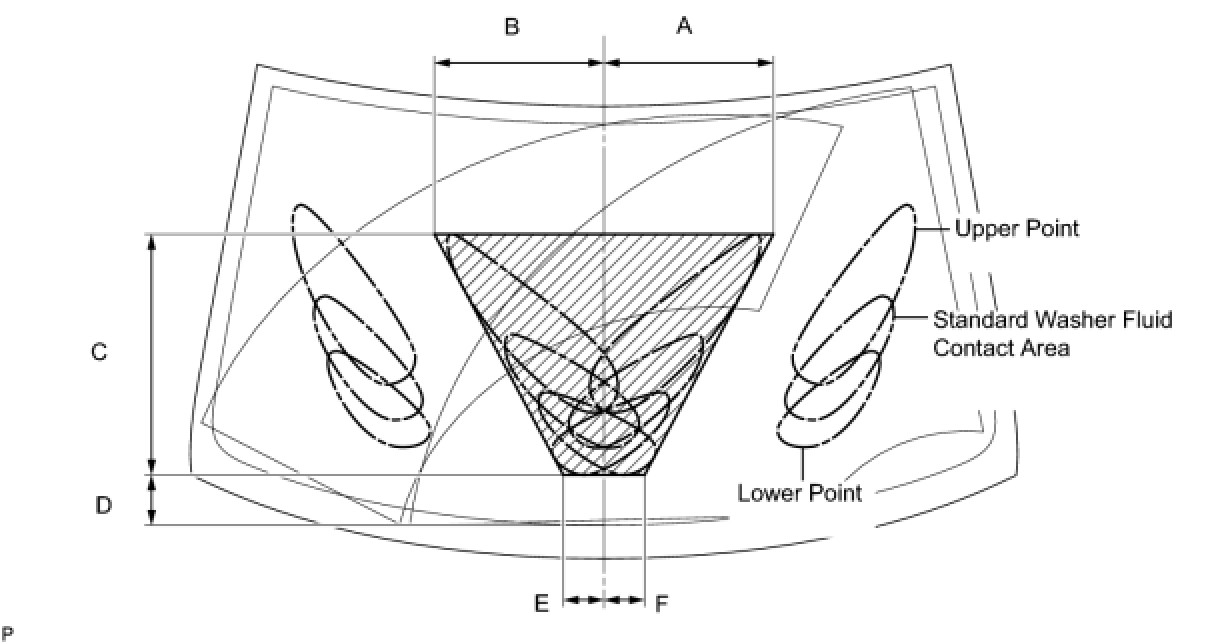

Washer fluid hits the windshield in the areas shown in the illustration.

(1) Front:

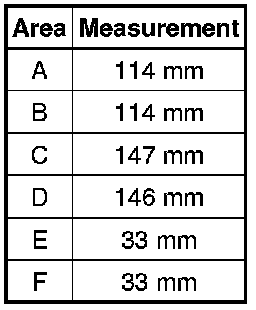

Specification:

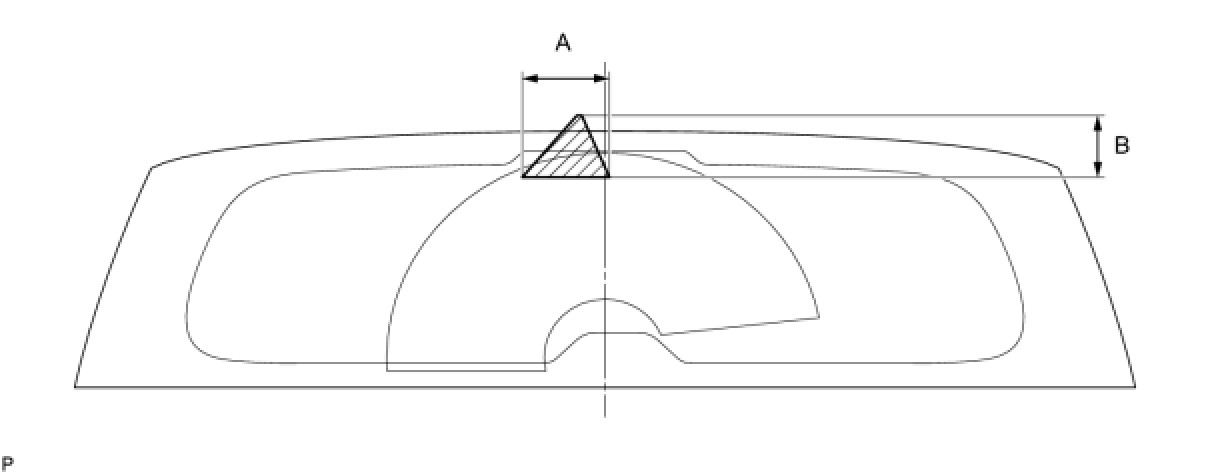

(2) Rear:





Specification:
