Windshield Washer Spray Nozzle: Adjustments

WIPER AND WASHER: WASHER NOZZLE: ADJUSTMENT

1. REMOVE WASHER NOZZLE

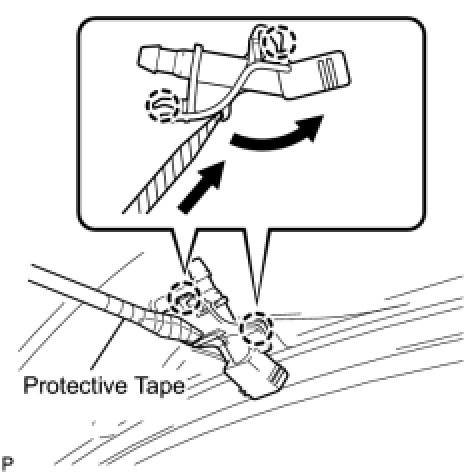

(a) Using a screwdriver with its tip wrapped in protective tape, disengage the 2 claws and separate the washer nozzle as shown in the illustration.

NOTICE:
Be careful not to damage the windshield.

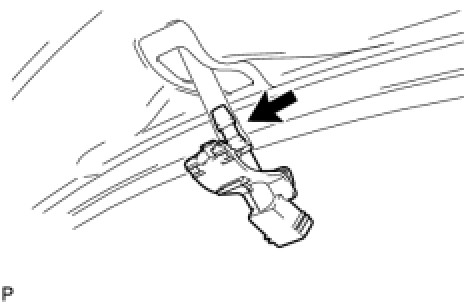

(b) Disconnect the washer nozzle from the washer hose.





NOTICE:
Washer nozzles cannot be reused.

2. ADJUST WASHER NOZZLE

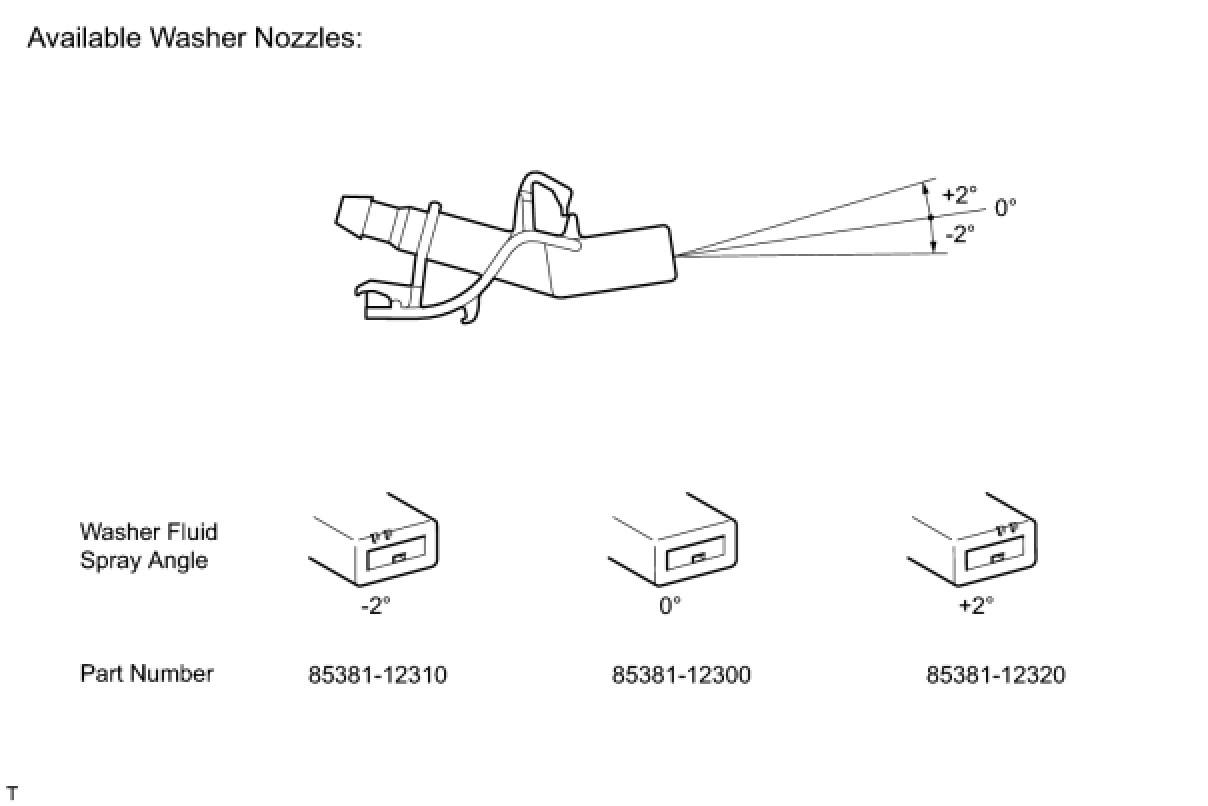

(a) Select a washer nozzle so that the washer fluid spray area is as specified.





3. INSTALL WASHER NOZZLE





(a) Connect a new washer nozzle to the washer hose.

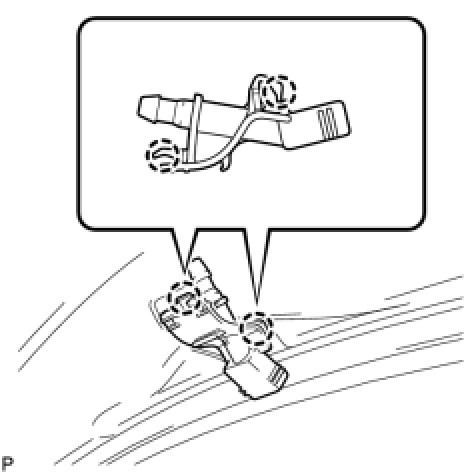

(b) Engage the 2 claws and connect the washer nozzle.
