Differential Case

C50 MANUAL TRANSAXLE: DIFFERENTIAL CASE: INSPECTION

1. INSPECT FRONT DIFFERENTIAL PINION THRUST WASHER

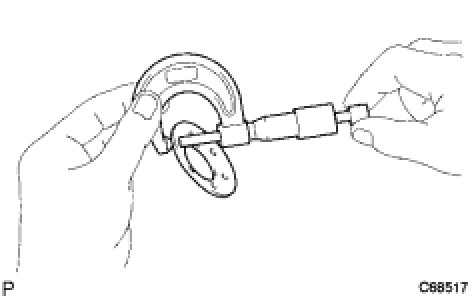

(a) Using a micrometer, measure the thickness of the front differential pinion thrust washer.

Minimum thickness:

0.92 mm (0.0362 in.)

If the thickness is less than the minimum, replace the front differential pinion thrust washer.

2. INSPECT NO. 1 FRONT DIFFERENTIAL PINION SHAFT

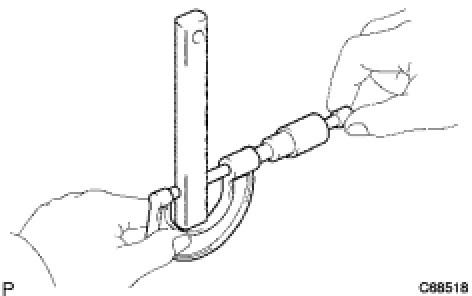

(a) Using a micrometer, measure the outer diameter of No. 1 front differential pinion shaft.

Minimum outer diameter:

16.982 mm (0.6685 in.)

If the outer diameter is less than the minimum, replace the No. 1 front differential pinion shaft.
