Installation

C50 MANUAL TRANSAXLE: TRANSMISSION CONTROL CABLE: INSTALLATION

1. INSTALL TRANSMISSION CONTROL CABLE ASSEMBLY

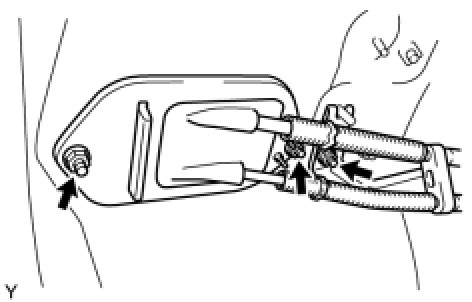

(a) Install the control cable with the 3 nuts.

Torque : 5.0 Nm (51 kgf-cm, 44 in-lbf)

(b) Install the control cable assembly onto the control cable bracket with 2 new clips.





(c) Connect the control cable assembly and install the 2 washers and 2 clips.

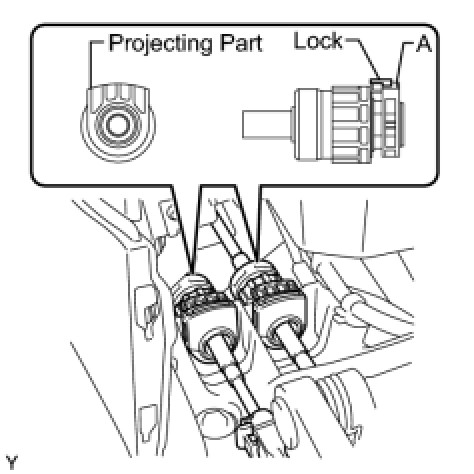

(d) Install the control cable assembly onto the shift lever retainer.





NOTICE:
* Install the cable with the protruding portion of the cable outer facing upward.
* After installing, check that the lock of the cable outer is protruding beyond portion A, as shown in the illustration.

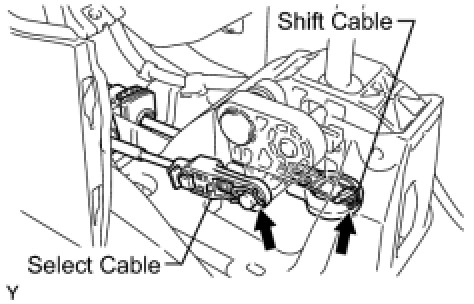

(e) Connect the control shift cable to the shift lever.





(f) Connect the control select cable to the shift lever with the clip.

NOTICE:
* Connect the control select cable so that the adjusting mechanism lock of the control select cable is installed on the left side of the vehicle.
* Insert the clip in the direction shown in the illustration.

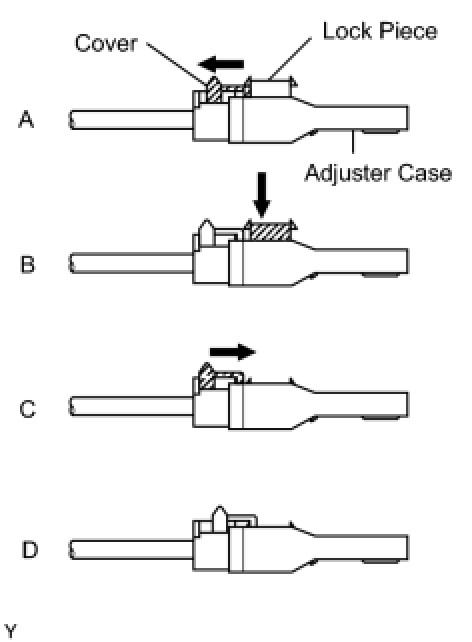

(g) Adjust the length of the control select cable.





(1) Slide the adjuster case cover in the direction shown in the illustration (Illustration A).

(2) Gently pull the cable rod toward the rear of the vehicle by hand to pull the cable taut.

(3) Press the lock piece into the adjuster case and lock it (Illustration B).

(4) Slide the cover in the direction shown in the illustration (Illustration C).

NOTICE:
Slide the cover past the protrusion portion of the lock piece (Illustration D).

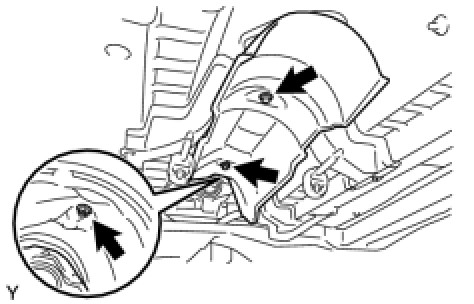

2. INSTALL FRONT NO. 1 FLOOR HEAT INSULATOR





(a) Install the front No. 1 floor heat insulator with the 2 bolts and nut.

Torque : 5.5 Nm (56 kgf-cm, 49 in-lbf)

3. INSTALL FRONT EXHAUST PIPE ASSEMBLY Installation

4. CONNECT HEATED OXYGEN SENSOR CONNECTOR

5. INSTALL FRONT FLOOR CENTER BRACE Installation

6. INSTALL FRONT CONSOLE BOX Installation

7. INSTALL REAR CONSOLE BOX SUB-ASSEMBLY Installation

8. INSTALL CONSOLE BOX CARPET Installation

9. INSTALL CONSOLE BOX COVER REAR Installation

10. INSTALL UPPER CONSOLE PANEL Installation

11. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY Installation
