Installation

C50 MANUAL TRANSAXLE: MANUAL TRANSAXLE ASSEMBLY: INSTALLATION

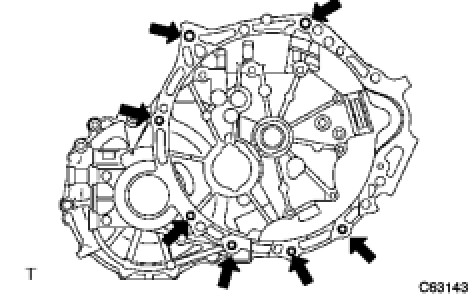

1. INSTALL MANUAL TRANSAXLE ASSEMBLY





(a) Align the input shaft with the clutch disc and install the manual transaxle onto the engine.

(b) Install the 7 bolts.

Torque : 33 Nm (336 kgf-cm, 24 ft-lbf)

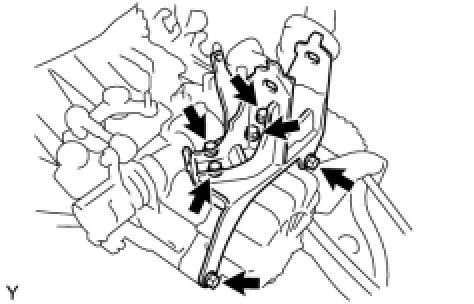

2. INSTALL ENGINE MOUNTING BRACKET LH





(a) Apply adhesive to 2 or 3 threads on the end of the 6 bolts.

Adhesive:

Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent

(b) Install the engine mounting bracket LH with the 6 bolts.

Torque : 64 Nm (653 kgf-cm, 47 ft-lbf)

3. INSTALL TRANSMISSION CONTROL CABLE BRACKET





(a) Install the transmission control cable bracket with the 2 bolts.

Torque : 25 Nm (250 kgf-cm, 18 ft-lbf)

4. INSTALL STARTER ASSEMBLY Installation

5. INSTALL FLYWHEEL HOUSING SIDE COVER Installation

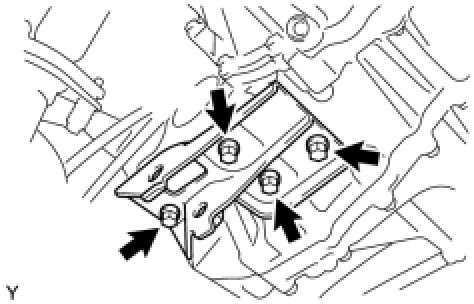

6. INSTALL ENGINE MOVING CONTROL BRACKET





(a) Install the engine moving control bracket with the 4 bolts.

Torque : 45 Nm (459 kgf-cm, 33 ft-lbf)

7. INSTALL ENGINE AND TRANSAXLE

(a) Install the engine and transaxle Installation.
