Home >> Scion >> 2012 >> xD L4-1.8L (2ZR-FE) >> Repair and Diagnosis >> Transmission and Drivetrain >> Drive Axles, Bearings and Joints >> Tools and Equipment >> Axle >> SST

SST

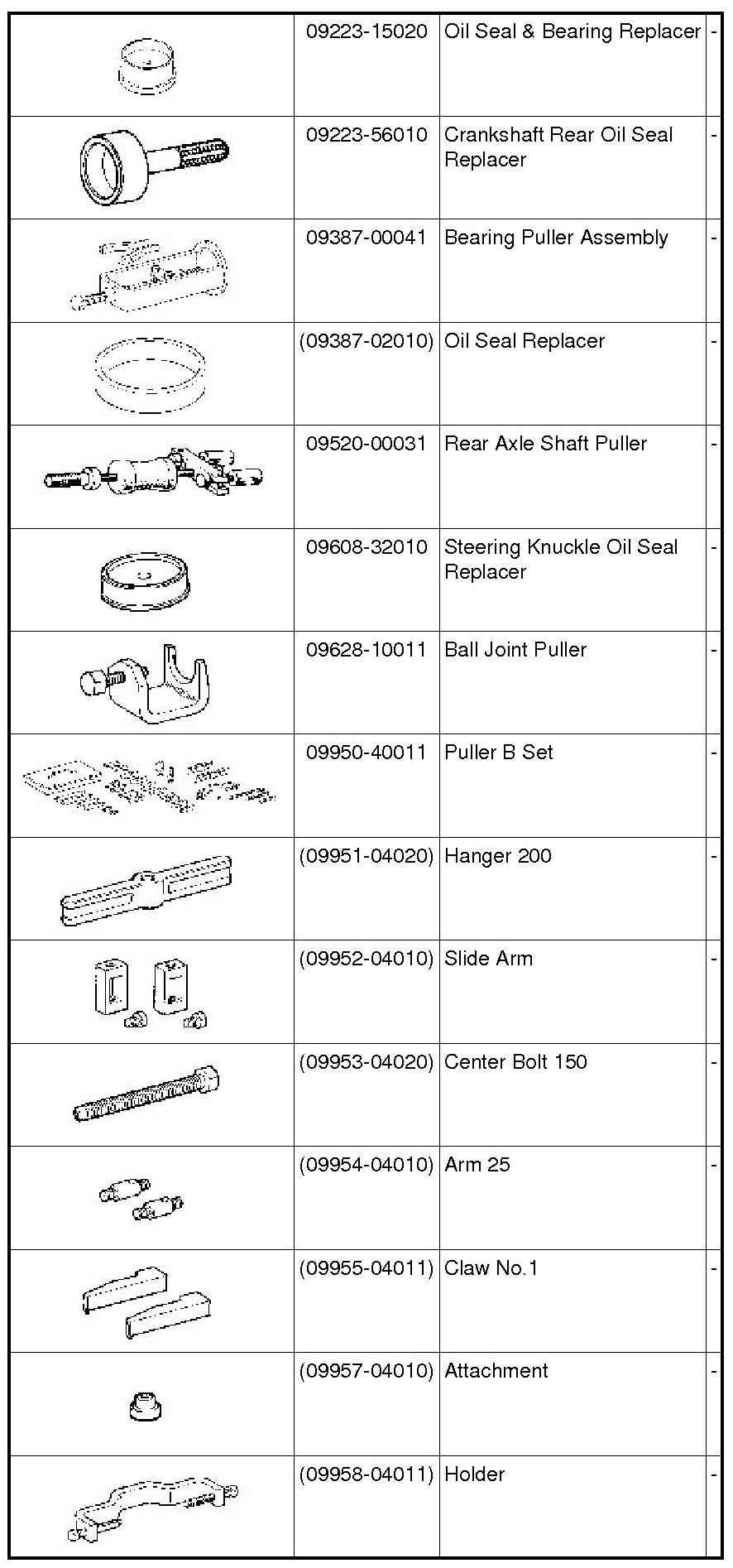

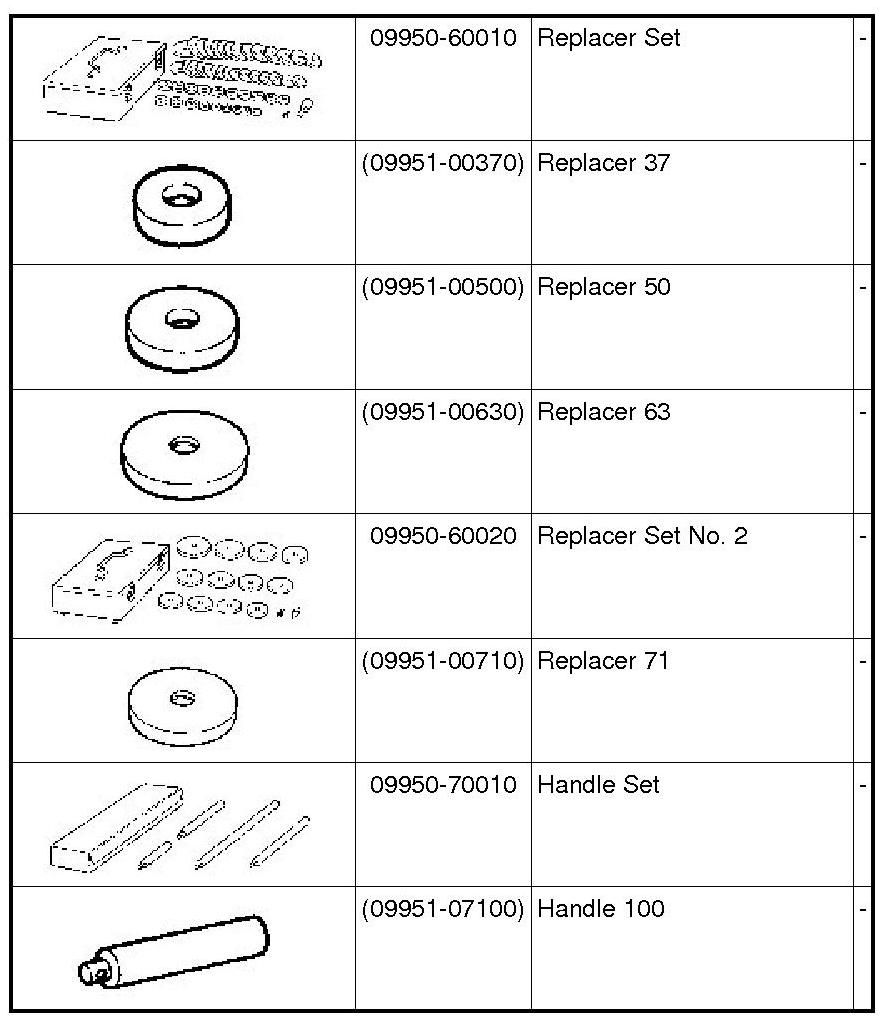

PREPARATION: AXLE: SST
