Axle System

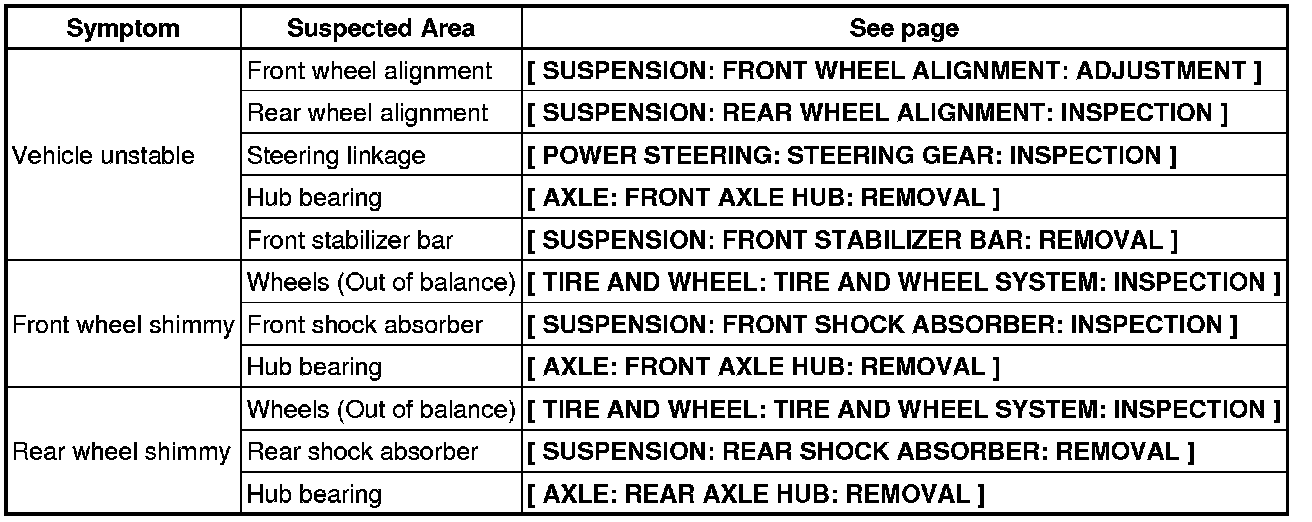

AXLE: AXLE SYSTEM: PROBLEM SYMPTOMS TABLE

HINT
Use the table below to help you find the cause of the problem.

Check each part.

If necessary, replace the applicable parts.
