Installation

CLUTCH: CLUTCH RELEASE CYLINDER: INSTALLATION

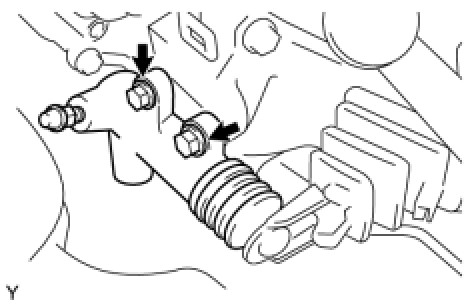

1. INSTALL CLUTCH RELEASE CYLINDER ASSEMBLY





(a) Install the clutch release cylinder with the 2 bolts.

Torque : 12 Nm (120 kgf-cm, 9 ft-lbf)

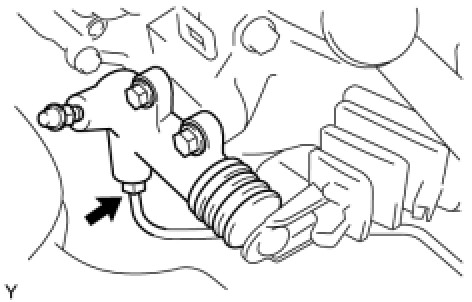

2. CONNECT CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE TUBE





(a) Using a union nut wrench, connect the flexible hose tube.

without union nut wrench - Torque : 15 Nm (155 kgf-cm, 11 ft-lbf)

with union nut wrench - Torque : 14 Nm (144 kgf-cm, 10 ft-lbf)

NOTICE:
* This torque value can be obtained by using a torque wrench with a fulcrum length of 300 mm (11.8 in.) and a union nut wrench with a fulcrum length of 22 mm (0.866 in.) Service Precautions.
* This torque value is effective when union nut wrench is parallel to a torque wrench.

3. BLEED CLUTCH PIPE LINE

(a) Fill the brake reservoir tank with brake fluid and bleed the clutch system.

Torque : 8.3 Nm (85 kgf-cm, 73 in-lbf)

4. INSPECT FOR CLUTCH FLUID LEAK
