Reassembly

CLUTCH: CLUTCH RELEASE CYLINDER: REASSEMBLY

1. INSTALL RELEASE CYLINDER BLEEDER PLUG

Torque : 8.3 Nm (85 kgf-cm, 73 in-lbf)

2. INSTALL CLUTCH RELEASE CYLINDER KIT

(a) Install the bleeder plug cap onto the bleeder plug.

(b) Install the spring onto the cylinder body.

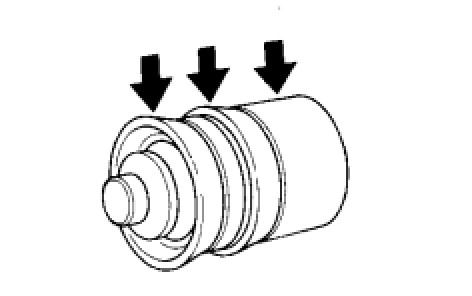

(c) Coat a new piston with lithium soap base glycol grease, as shown in the illustration.





(d) Install the piston onto the cylinder body.

NOTICE:
Do not damage the inside of the cylinder body.

(e) Install the push rod onto the cylinder body.

(f) Install the boot onto the cylinder body.
