Home >> Scion >> 2012 >> xD L4-1.8L (2ZR-FE) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Tools and Equipment >> SST

SST

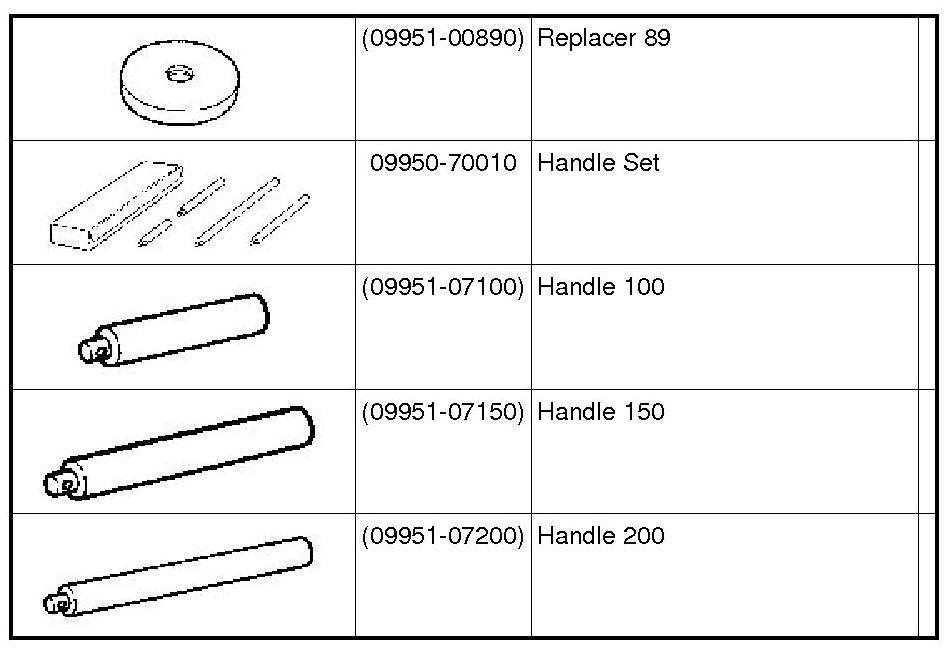

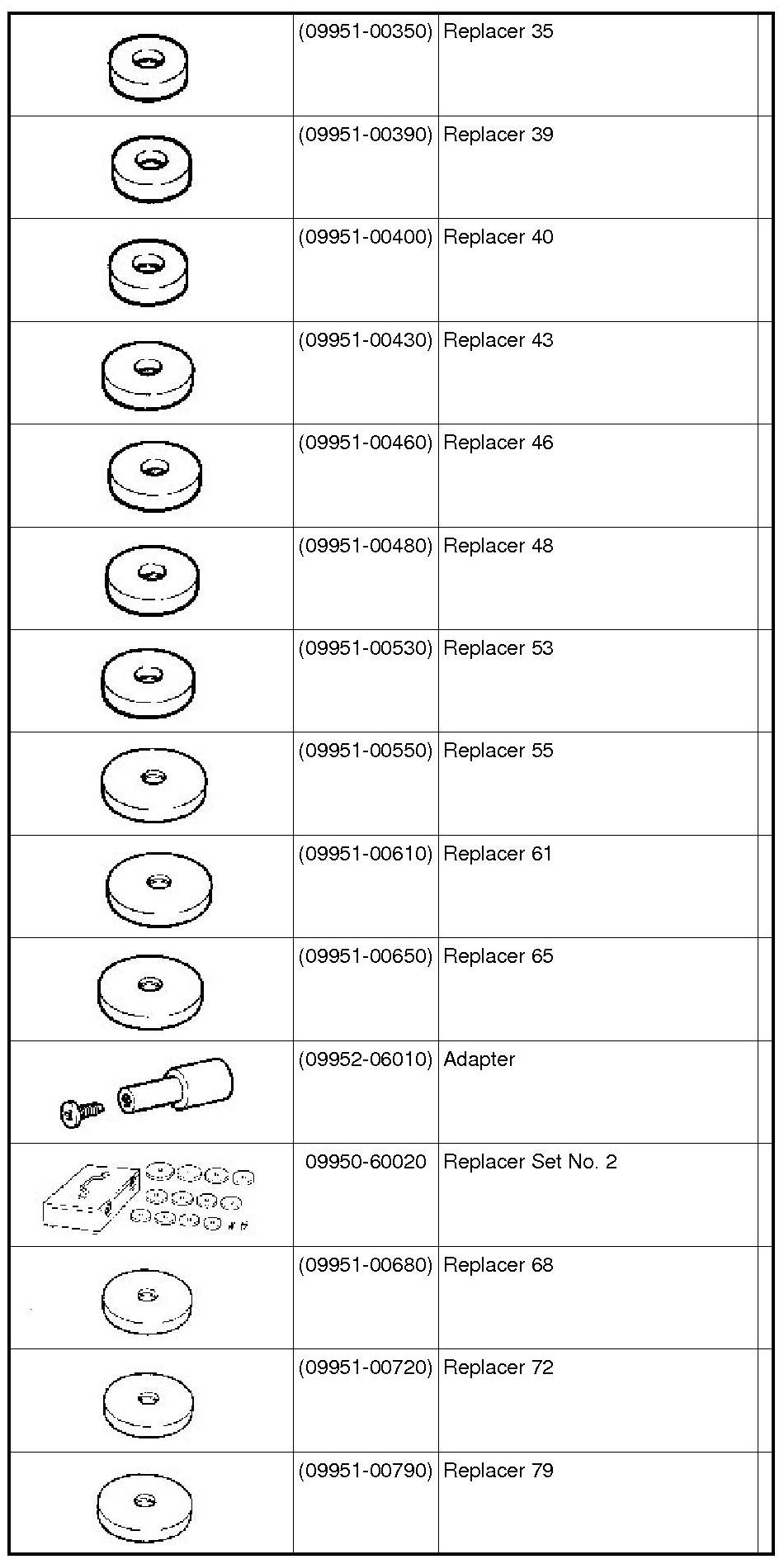

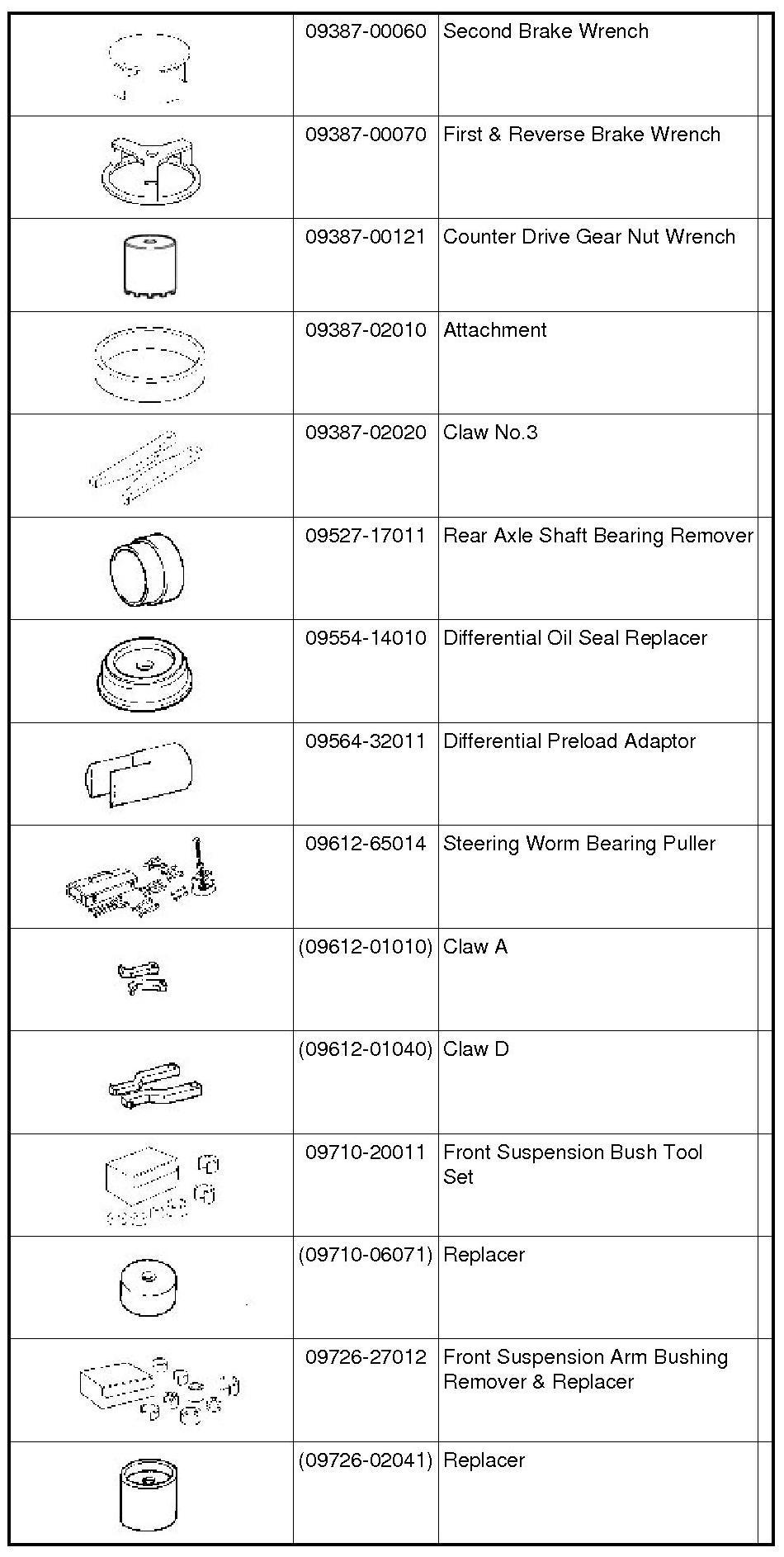

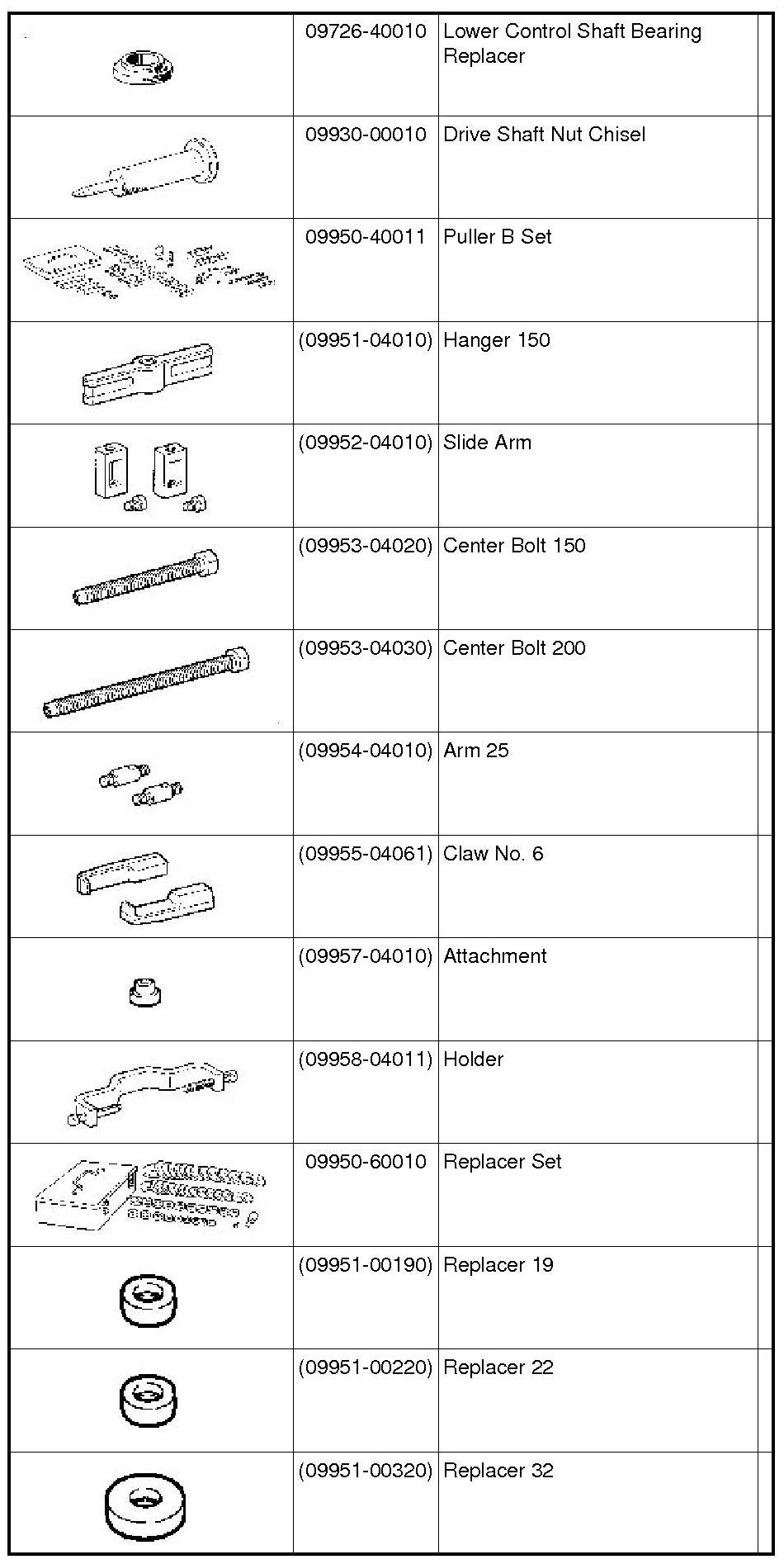

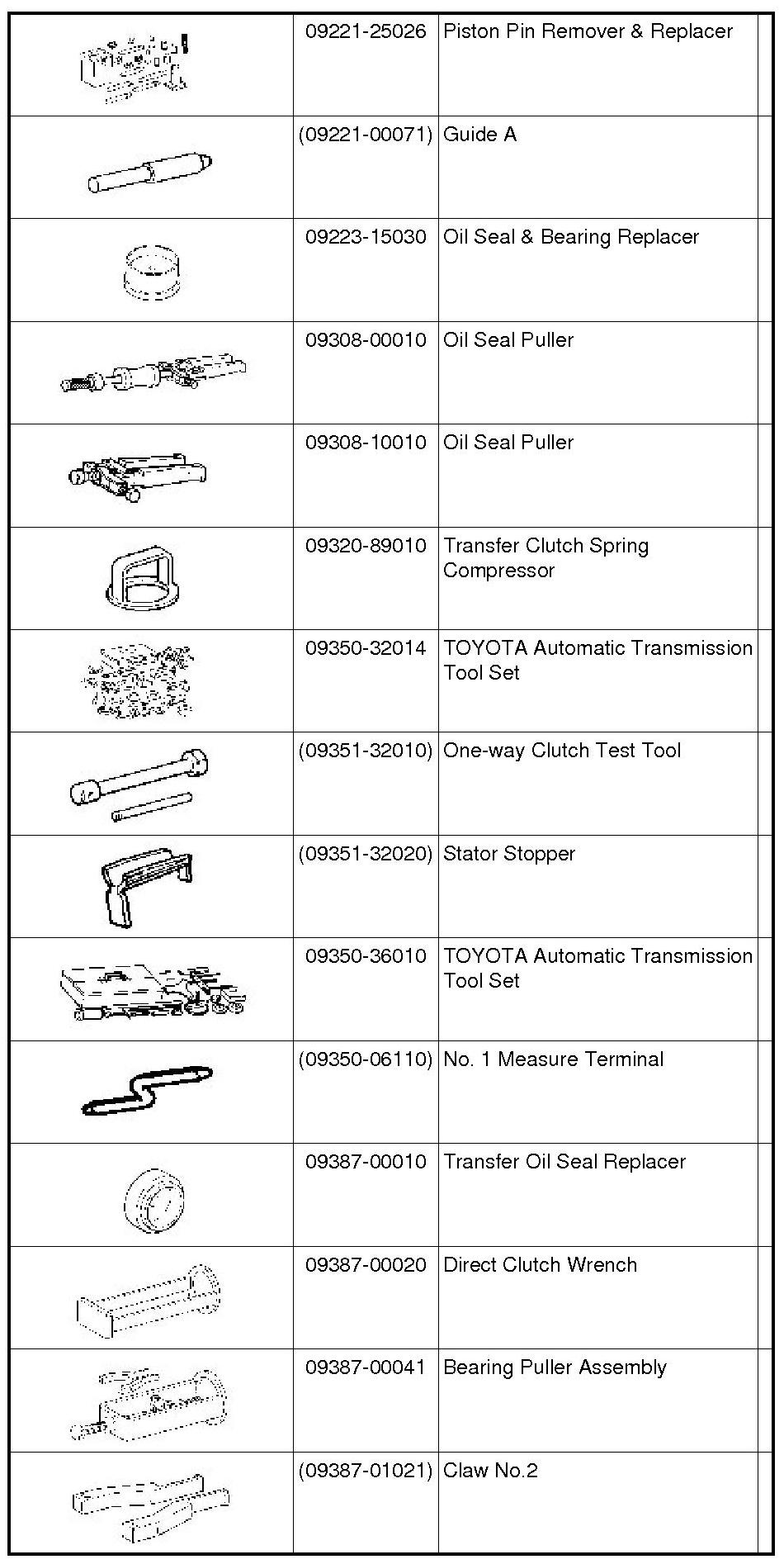

PREPARATION: U341E AUTOMATIC TRANSAXLE: SST
