Home >> Scion >> 2012 >> xD L4-1.8L (2ZR-FE) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Service and Repair >> Overhaul >> Input Shaft >> Components

Components

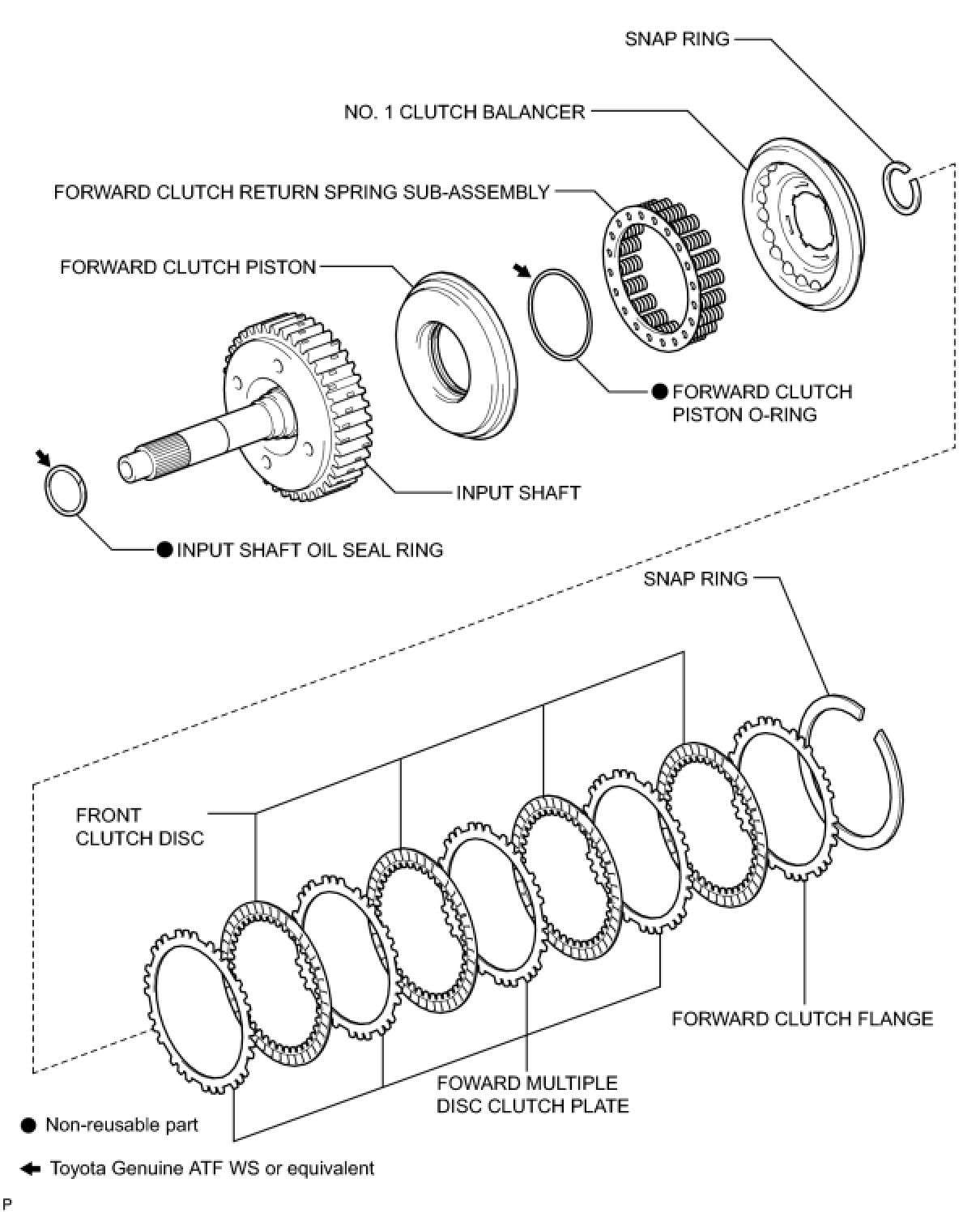

U341E AUTOMATIC TRANSAXLE: INPUT SHAFT: COMPONENTS
