Disassembly

U341E AUTOMATIC TRANSAXLE: DIFFERENTIAL CASE: DISASSEMBLY

1. REMOVE FRONT DIFFERENTIAL CASE FRONT TAPERED ROLLER BEARING

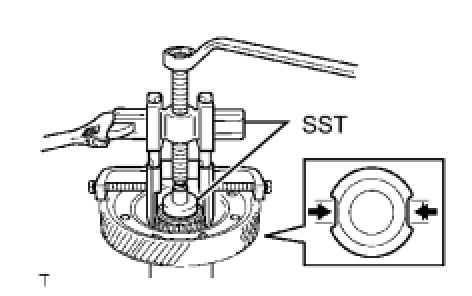

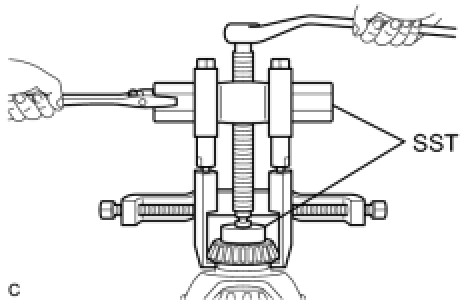

(a) Using SST, remove the front differential case front tapered roller bearing from the differential case.





SST : 09950-40011

09951-04010

09952-04010

09953-04030

09954-04010

09955-04061

09957-04010

09958-04011

SST : 09950-60010

09951-00390

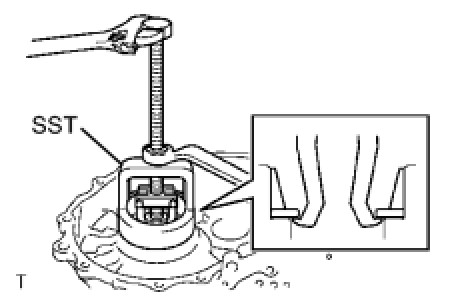

(b) Using SST, remove the front differential case RH tapered roller bearing outer race from the transaxle housing.

SST : 09387-00041

09387-02020

09387-02010





2. REMOVE FRONT DIFFERENTIAL CASE REAR TAPERED ROLLER BEARING

(a) Using SST, remove the front differential case tapered roller bearing from the differential case.





SST : 09950-40011

09951-04010

09952-04010

09953-04020

09954-04010

09955-04061

09957-04010

09958-04011

SST : 09950-60010

09951-00430

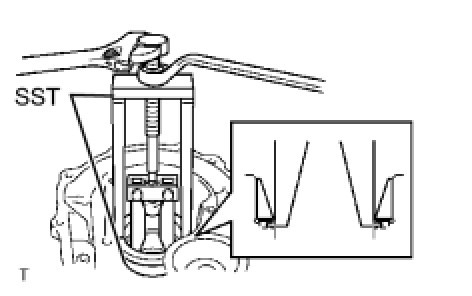

(b) Using SST, remove the front differential case tapered roller bearing outer race from the transaxle case.

SST : 09612-65014

09612-01010





3. REMOVE FRONT DIFFERENTIAL RING GEAR

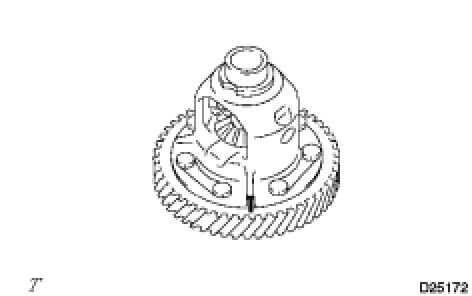

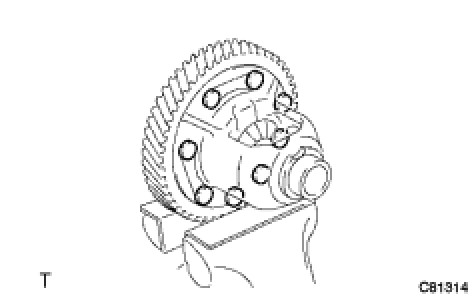

(a) Place matchmarks on the front differential ring gear and differential case.

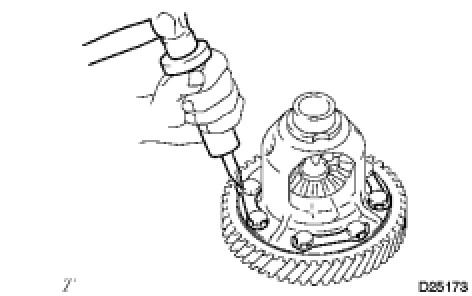

(b) Using SST and a hammer, release the lock plate.





SST : 09930-00010

(c) Remove the 8 bolts and the lock plate.

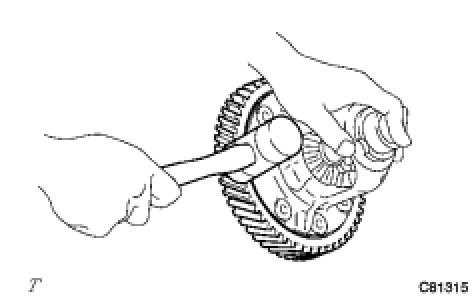

(d) Using a plastic hammer, remove the front differential ring gear from the differential case.





4. REMOVE FRONT DIFFERENTIAL PINION SHAFT STRAIGHT PIN

(a) Using a punch and a hammer, release the differential case.

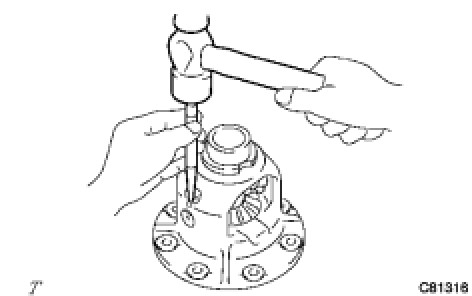

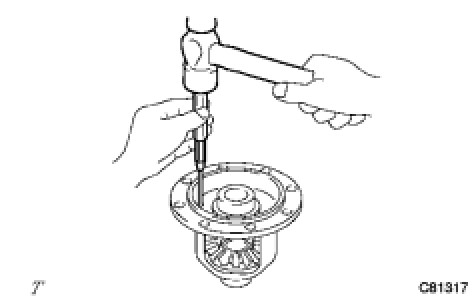

(b) Using a pin punch and a hammer, remove the straight pin.

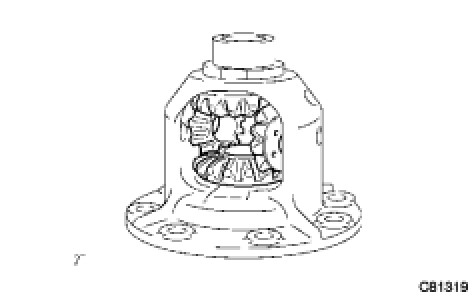

5. REMOVE FRONT NO. 1 DIFFERENTIAL PINION SHAFT

(a) Remove the front No. 1 differential pinion shaft from the front differential case.





6. REMOVE FRONT DIFFERENTIAL SIDE GEAR

(a) Remove the 2 front differential pinions, 2 front differential side gear thrust washers, 2 front differential side gears and 2 front differential side gear thrust washers from the front differential case.
