Removal

STEERING COLUMN: STEERING WHEEL: REMOVAL

CAUTION:
Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing the steering column Service Precautions.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

2. REMOVE STEERING PAD Removal

3. REMOVE CRUISE CONTROL MAIN SWITCH Removal

4. REMOVE STEERING PAD SWITCH Removal

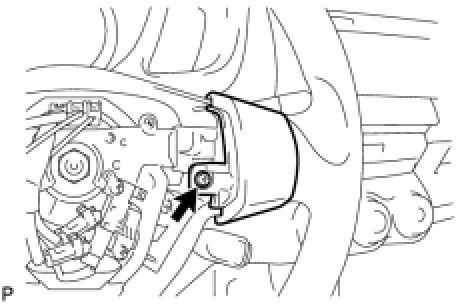

5. REMOVE NO. 1 STEERING WHEEL ORNAMENT

(a) Remove the screw.





(b) Disengage the 2 claws and the pin.

(c) Remove the No.1 steering wheel ornament.

6. REMOVE STEERING WHEEL Removal

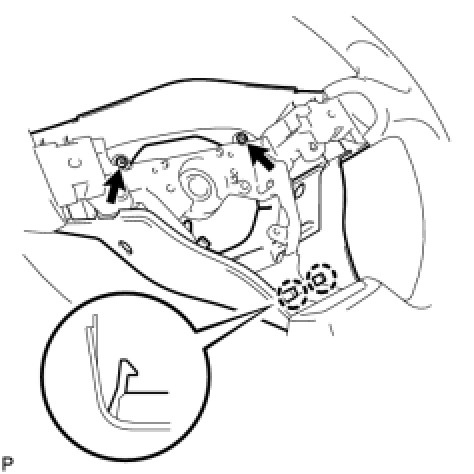

7. REMOVE STEERING WHEEL LOWER BOSS COVER

(a) Remove the 2 screws.





(b) Disengage the claw and remover the steering wheel lower boss cover.
