Disassembly

STEERING COLUMN: STEERING COLUMN ASSEMBLY: DISASSEMBLY

1. REMOVE STEERING SLIDING YOKE SUB-ASSEMBLY





(a) Place matchmarks on No. 2 steering intermediate shaft assembly and the steering sliding yoke.

(b) Remove bolt A and remove the steering sliding yoke from No. 2 steering intermediate shaft.

Text in Illustration





2. REMOVE UPPER STEERING COLUMN BRACKET ASSEMBLY

(a) Fix the steering column assembly in a vise between aluminum plates.

NOTICE:
Do not overtighten the vise.

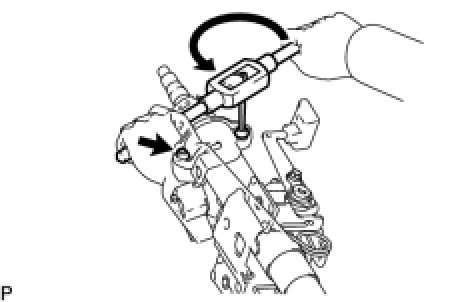

(b) Using a drill, drill a hole in each of the 2 steering lock set bolts, to insert a screw extractor.

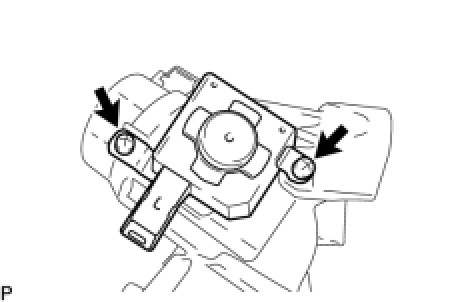

(c) Using the screw extractor, remove the 2 steering lock set bolts and remove the steering column upper w/ switch bracket assembly and steering column clamp upper.





3. REMOVE TRANSPONDER KEY AMPLIFIER (w/ Engine Immobiliser System)

(a) Disengage the 2 claws and slide the transponder key amplifier in the direction shown in the illustration, to detach it from the steering column upper with switch bracket assembly.





Text in Illustration





4. REMOVE IGNITION SWITCH LOCK CYLINDER ASSEMBLY

(a) Turn the ignition switch to ACC.

(b) Insert the tip of a screwdriver into the hole in the steering column bracket assembly upper, as shown in the illustration, and pull the ignition switch lock cylinder assembly out until its claw comes into contact with the stopper of the steering column bracket assembly upper.

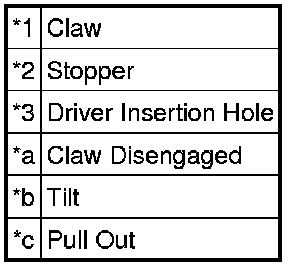

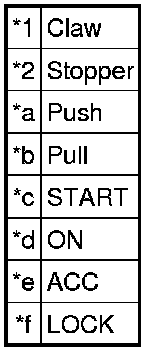

Text in Illustration





NOTICE:
Pull the ignition switch lock cylinder assembly out until the claw comes into contact with the stopper of the steering column bracket assembly upper. Otherwise, the following procedure cannot be conducted properly.

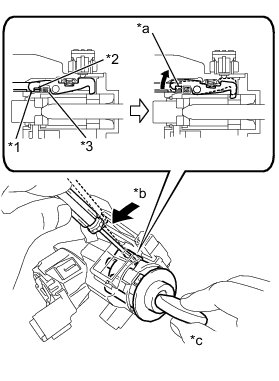

(c) Insert the tip of a screwdriver into the hole in the steering column bracket and tilt it downward, as shown in the illustration, to disengage the claw on the ignition switch lock cylinder. Then pull out the ignition switch lock cylinder.





Text in Illustration





5. REMOVE UN-LOCK WARNING SWITCH ASSEMBLY





(a) Remove the un-lock warning switch assembly by pushing up the center part and releasing the 2 claws.

HINT
Slide the un-lock warning switch assembly, in the direction shown by the arrow in the illustration, to remove it.

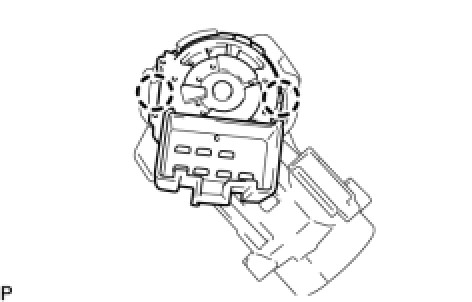

Text in Illustration





6. REMOVE KEY INTER LOCK SOLENOID (for Automatic Transaxle)





(a) Remove the 2 screws and remove the key lock solenoid from the steering column bracket assembly upper.

7. REMOVE IGNITION OR STARTER SWITCH ASSEMBLY





(a) Disengage the 2 claws and remove the ignition (starter) switch assembly from the steering column bracket assembly upper.
