Installation

TIRE AND WHEEL: TIRE PRESSURE WARNING RECEIVER (w/ Antenna): INSTALLATION

1. INSTALL TIRE PRESSURE WARNING RECEIVER ASSEMBLY (w/ Antenna)

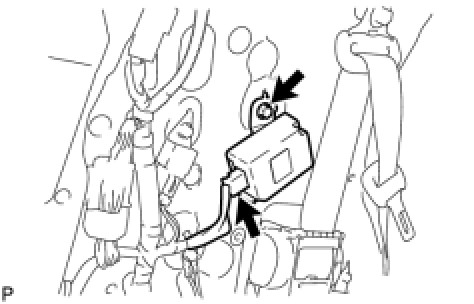

(a) Install the tire pressure warning receiver with the bolt.

Torque : 7.5 Nm (76 kgf-cm, 66 in-lbf)

(b) Connect the pressure warning receiver connector.

2. INSTALL ROOF SIDE GARNISH INNER LH Installation

3. INSTALL DECK TRIM SIDE BOARD LH Installation

4. INSTALL LUGGAGE HOLD BELT STRIKER ASSEMBLY Installation

5. INSTALL REAR DOOR WEATHERSTRIP LH Installation

6. INSTALL REAR DOOR SCUFF PLATE LH Installation

7. INSTALL REAR DECK TRIM COVER Installation

8. INSTALL DECK BOARD ASSEMBLY Installation

9. INSTALL REAR SEAT ASSEMBLY LH Installation

10. INSTALL NO. 1 REAR SEAT LEG COVER Installation

11. INSTALL NO. 2 REAR SEAT LEG COVER Installation

12. INSPECT TIRE PRESSURE WARNING SYSTEM

Test Mode Procedure
