Home >> Scion >> 2012 >> xD L4-1.8L (2ZR-FE) >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Specifications >> Mechanical Specifications >> Torque Specifications

Torque Specifications

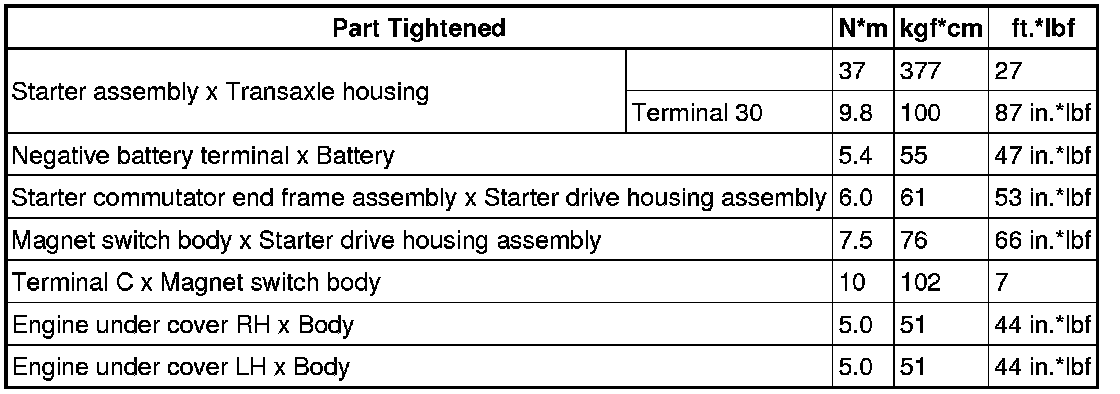

SERVICE SPECIFICATIONS: 2ZR-FE STARTING: TORQUE SPECIFICATIONS
