Removal

BRAKE CONTROL: REAR SPEED SENSOR: REMOVAL

1. REMOVE REAR WHEEL

2. REMOVE REAR BRAKE DRUM SUB-ASSEMBLY Removal

3. DISCONNECT SPEED SENSOR WIRE Removal

4. REMOVE REAR AXLE HUB AND BEARING ASSEMBLY (REAR SPEED SENSOR)

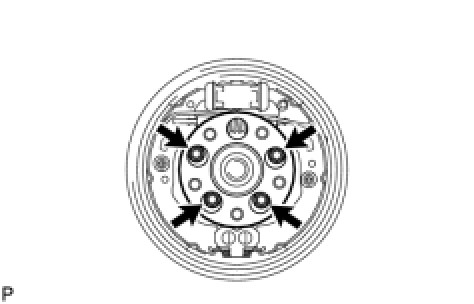

(a) Remove the 4 bolts and remove the rear axle hub and bearing from the axle beam.





NOTICE:
Suspend the backing plate with a piece of rope.
