Pinout Values and Diagnostic Parameters

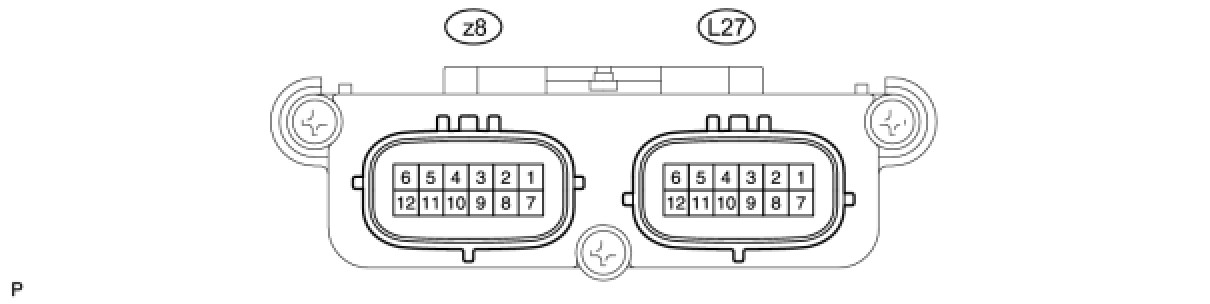

SUPPLEMENTAL RESTRAINT SYSTEM: OCCUPANT CLASSIFICATION SYSTEM: TERMINALS OF ECU

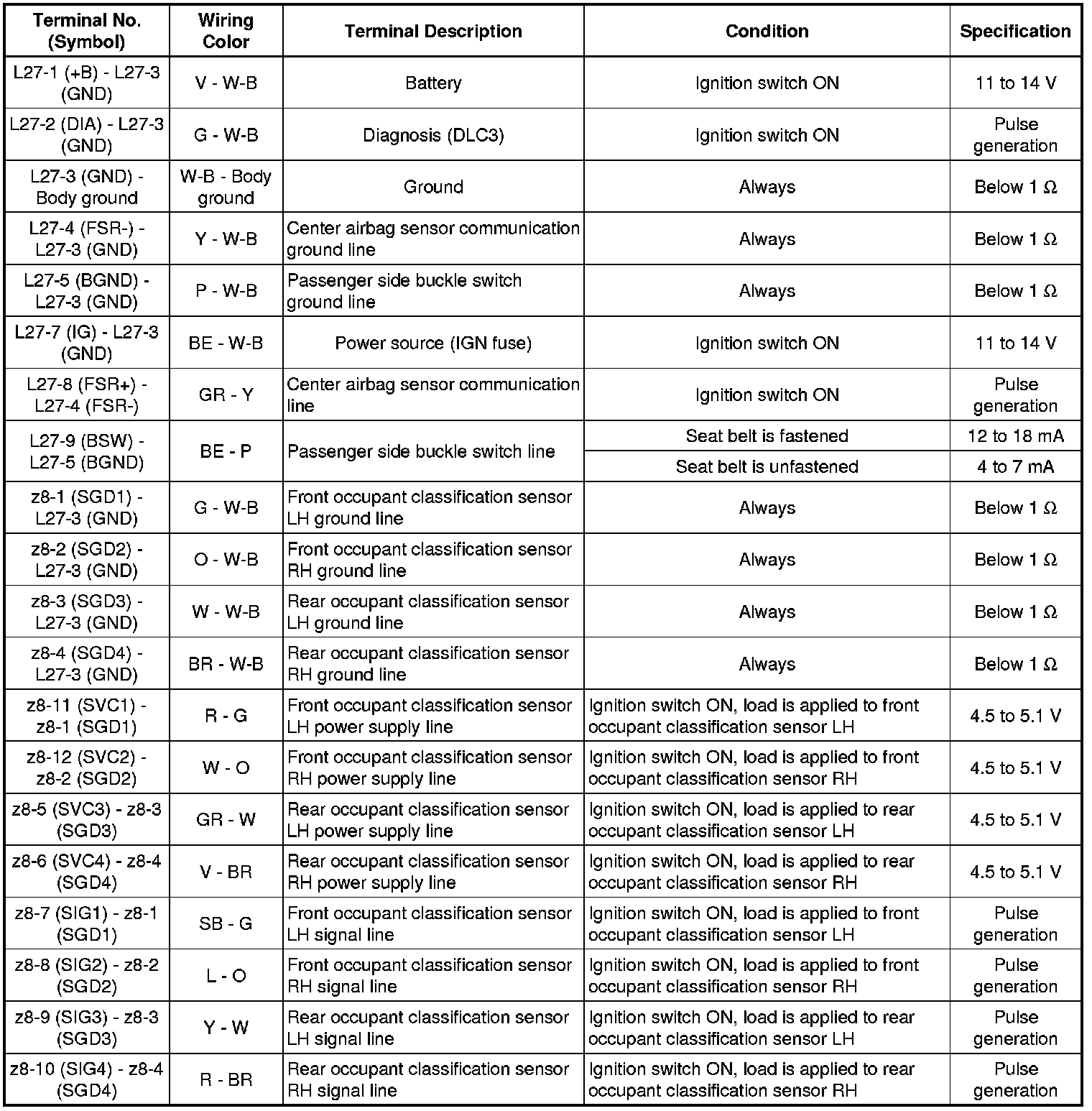

1. CHECK OCCUPANT CLASSIFICATION ECU
