Removal

SEAT BELT: REAR SEAT INNER BELT ASSEMBLY (for RH Side): REMOVAL

NOTICE:
Always use "TORX" socket wrench E10 when removing the rear seat.

1. REMOVE NO. 1 REAR SEAT LEG COVER Removal

2. REMOVE REAR SEAT ASSEMBLY Removal

3. REMOVE REAR SEAT INNER BELT ASSEMBLY

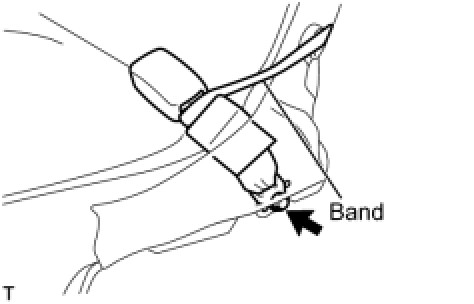

(a) Remove the belt from the band.





(b) Remove the bolt and the rear seat inner belt.
