Removal

SEAT BELT: FRONT PASSENGER SEAT BELT WARNING LIGHT: REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

2. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY Removal

3. REMOVE FRONT PASSENGER SEAT BELT WARNING LIGHT

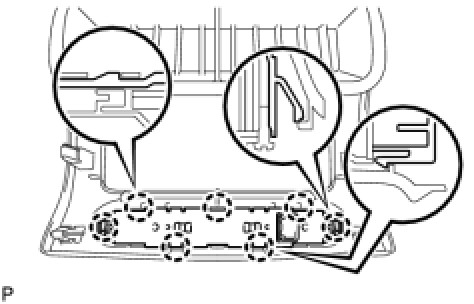

(a) Disengage the 7 claws and remove the passenger seat belt warning lamp assembly.
