System Diagram

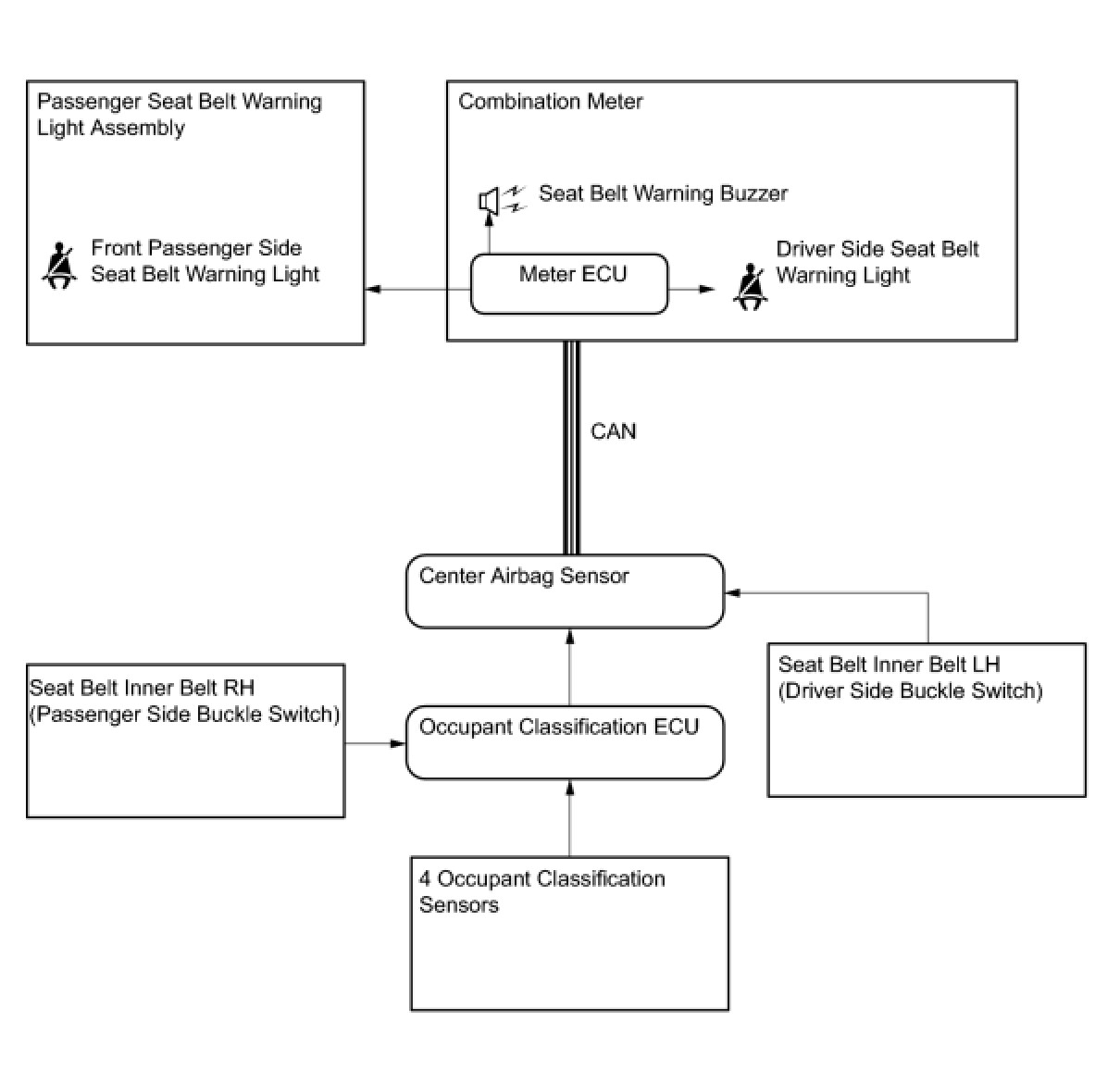

System Diagram
SEAT BELT
: SEAT BELT WARNING SYSTEM: SYSTEM DIAGRAM

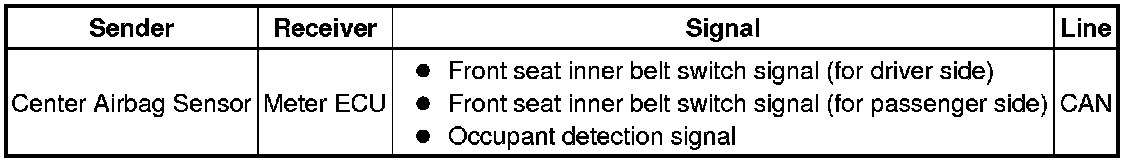

Communication Table
