SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: PROBLEM SYMPTOMS TABLE
HINT

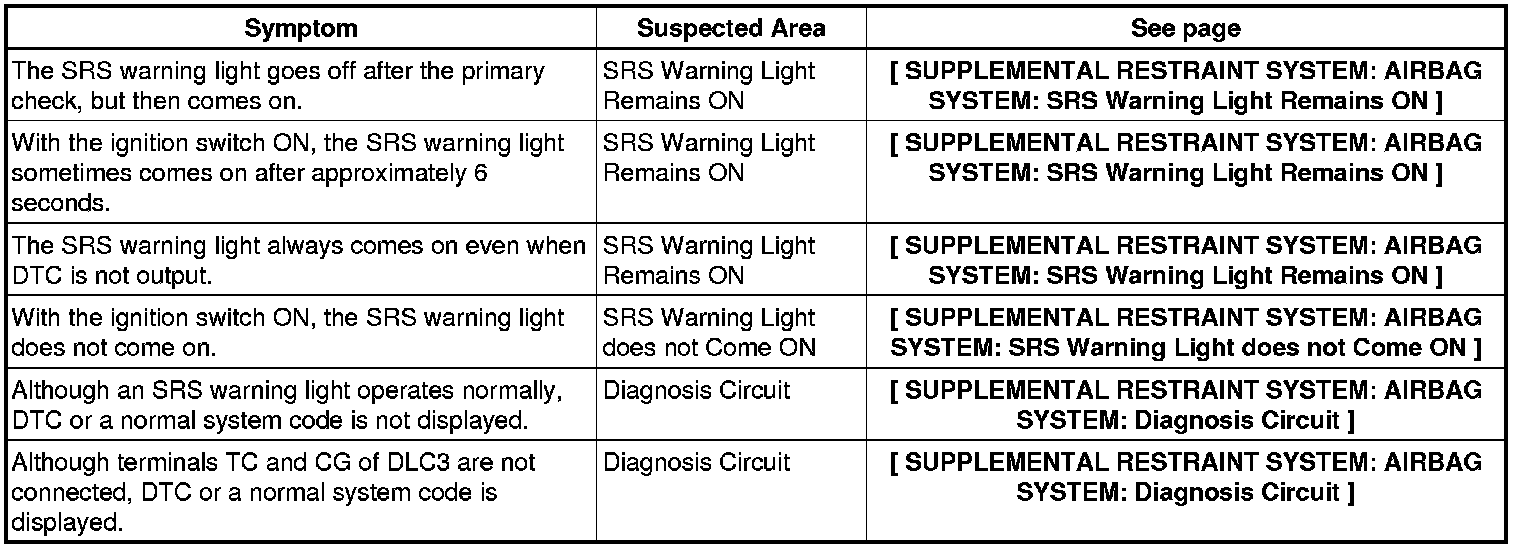

Proceed to the troubleshooting for each circuit in the table below.
Airbag system:
