Scion
>>
2012
>>
xD L4-1.8L (2ZR-FE)
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Description and Operation
>>
System Diagram
System Diagram

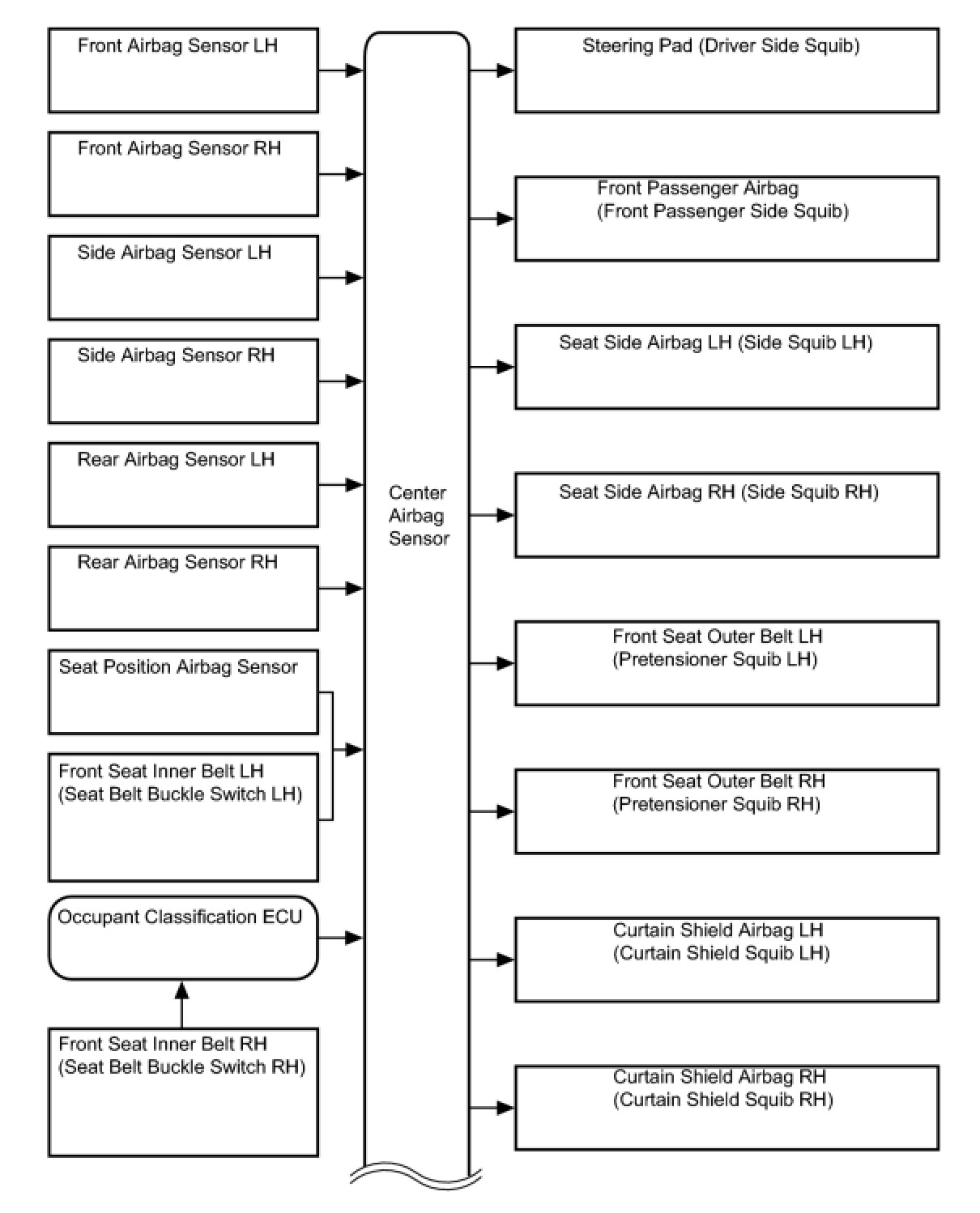

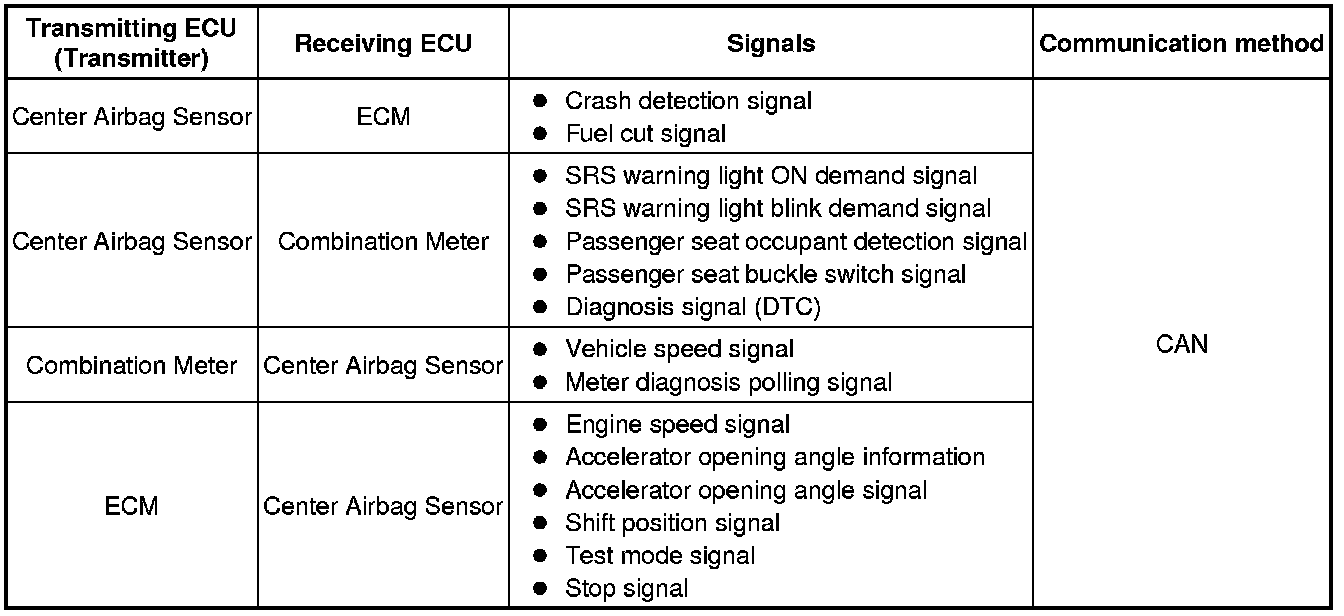

SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: SYSTEM DIAGRAM
