System Diagram





U341E AUTOMATIC TRANSAXLE: AUTOMATIC TRANSAXLE SYSTEM: SYSTEM DIAGRAM

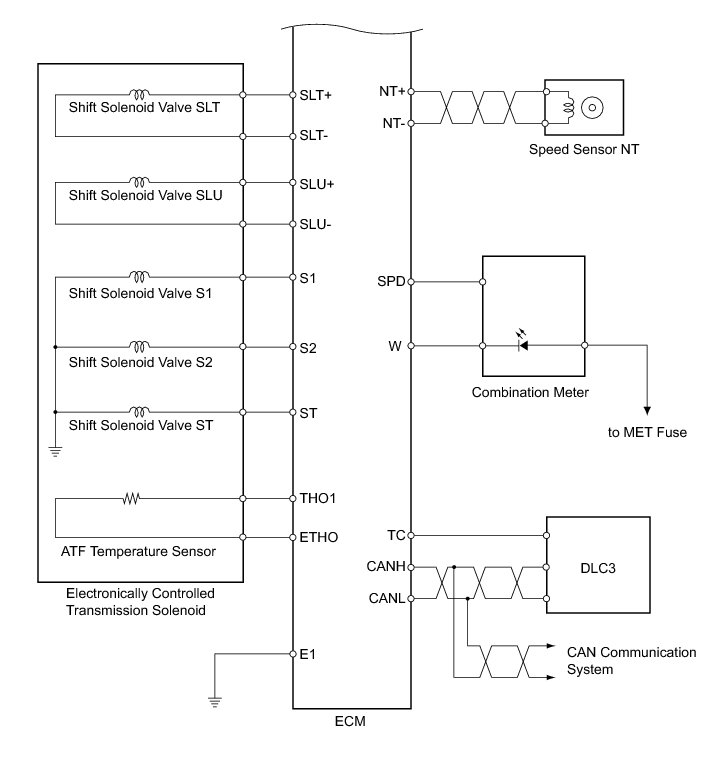

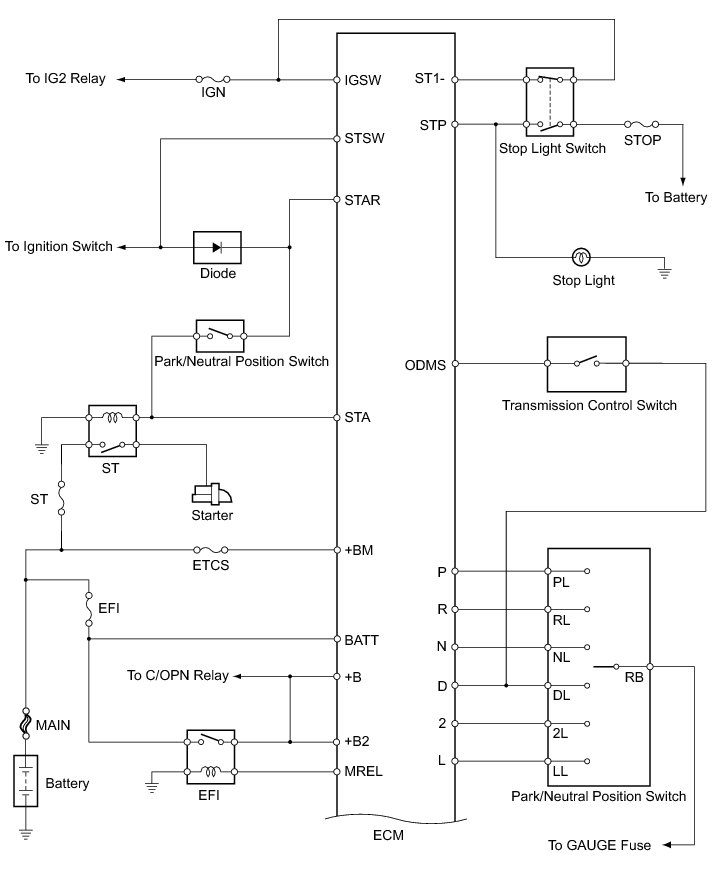

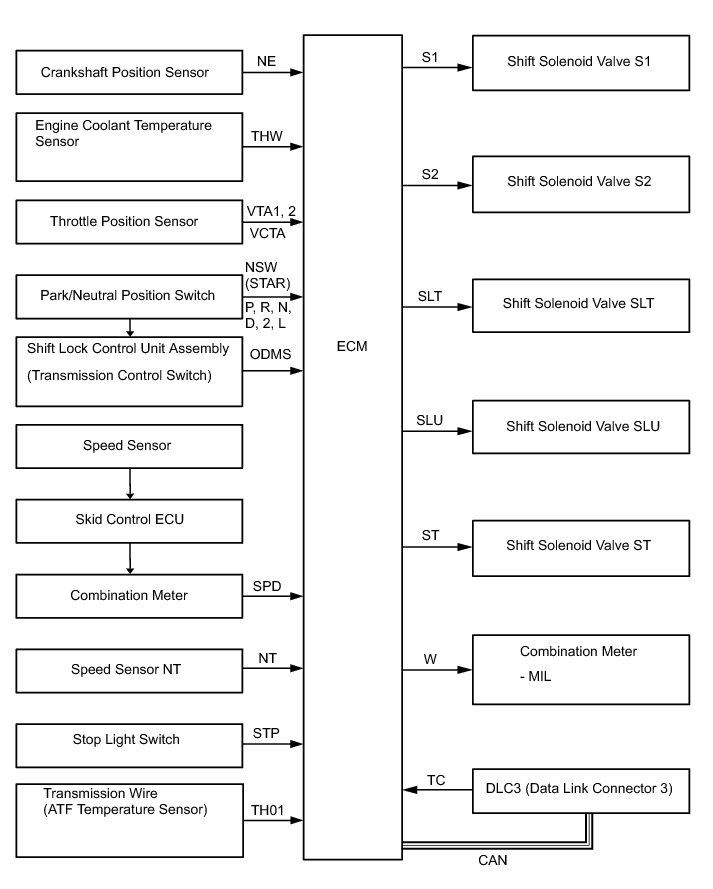

The configuration of the electronic control system in the U341E automatic transaxle is as shown in the following chart.
