2ZR-FE INTAKE: AIR CLEANER AND HOSE: INSTALLATION

1. INSTALL AIR CLEANER ASSEMBLY

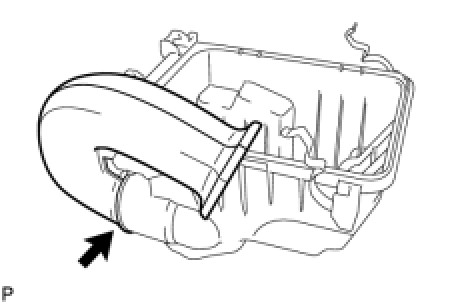

(a) Install the inlet No. 1 air cleaner onto the air cleaner case.

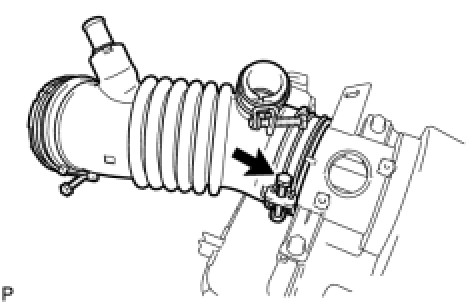

(b) Install the No. 1 air cleaner hose to the air cleaner cap sub-assembly with the air cleaner hose clamp.

Torque : 3.0 Nm (31 kgf-cm, 27 in-lbf)

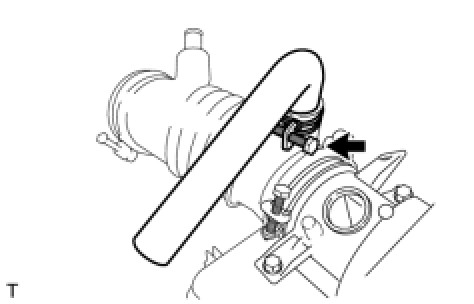

(c) Install the intake air resonator with the air hose clamp.

Torque : 3.0 Nm (31 kgf-cm, 27 in-lbf)

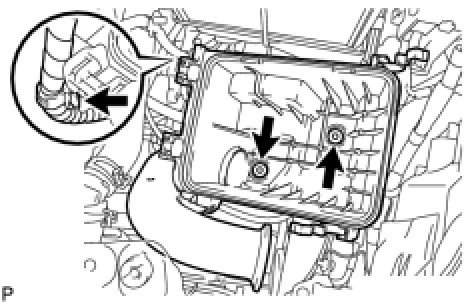

(d) Install the air cleaner case with inlet No. 1 air cleaner with the 2 bolts.

Torque : 7.8 Nm (80 kgf-cm, 69 in-lbf)





(e) Install the air cleaner filter element.

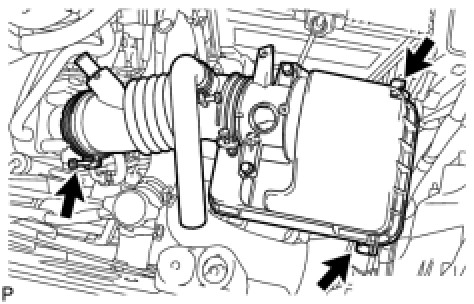

(f) Install and lock the air cleaner cap and air cleaner hose and then tighten the air cleaner hose clamp.

Torque : 3.0 Nm (31 kgf-cm, 27 in-lbf)

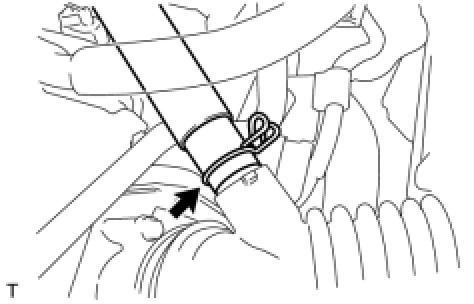

(g) Connect the No. 2 ventilation hose.





2. INSTALL MASS AIR FLOW METER Installation
