Installation

2ZR-FE ENGINE CONTROL SYSTEM: ACCELERATOR PEDAL ROD: INSTALLATION

NOTICE:
* Avoid any physical shock to the accelerator pedal.

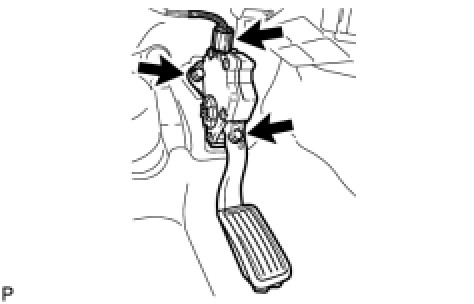

1. INSTALL ACCELERATOR PEDAL ASSEMBLY





(a) Install the accelerator pedal with the 2 bolts.

Torque : 5.4 Nm (55 kgf-cm, 48 in-lbf)

(b) Connect the accelerator pedal connector.
