Tire Pressure Warning Reset Switch Circuit

TIRE AND WHEEL: TIRE PRESSURE WARNING SYSTEM: Tire Pressure Warning Reset Switch Circuit
- Tire Pressure Warning Reset Switch Circuit

DESCRIPTION

Initialization can be started by pressing the tire pressure warning reset switch and holding it for 3 seconds or more.

If the ECU receives the signal from the switch, the tire pressure warning light blinks 3 times (1 second on, 1 second off).

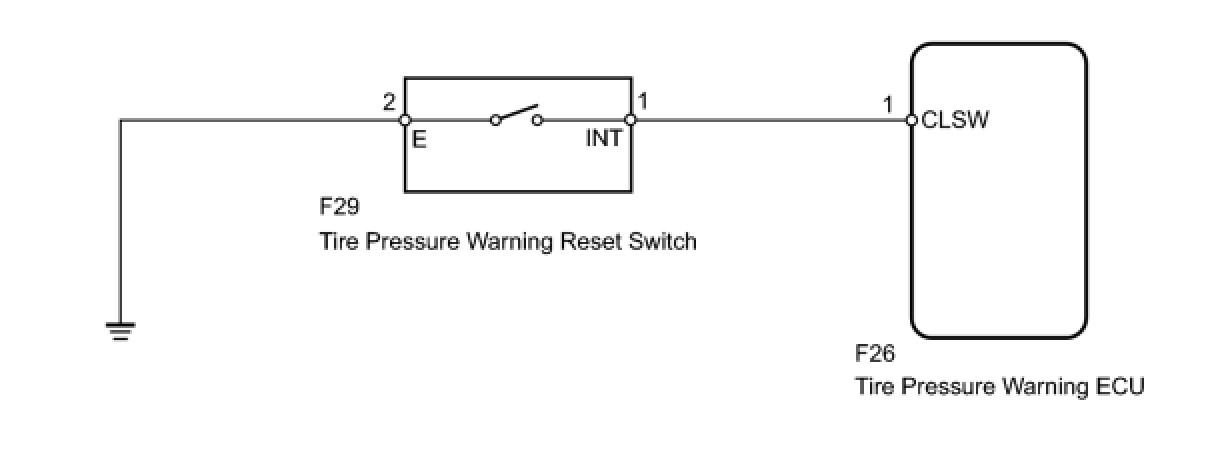

WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
* When replacing the tire pressure warning ECU, read the IDs stored in the old ECU using a Techstream and note down before removal.
* It is necessary to perform initialization Initialization after registration Registration of the transmitter IDs into the tire pressure warning ECU, after the ECU has been replaced.

PROCEDURE

1. CHECK TIRE PRESSURE WARNING RESET SWITCH FUNCTION

(a) Perform the tire pressure warning reset switch test in TEST MODE PROCEDURE Test Mode Procedure.

OK:

Reset switch ON
Tire pressure warning light turns on.

Reset switch OFF
Tire pressure warning light blinks.

NG -- INSPECT TIRE PRESSURE WARNING RESET SWITCH

OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE Symptom Related Diagnostic Procedures

2. INSPECT TIRE PRESSURE WARNING RESET SWITCH

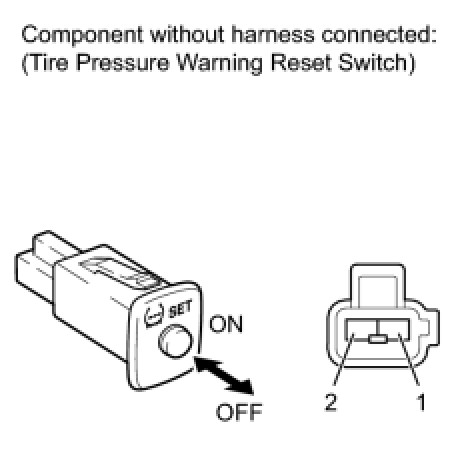

(a) Remove the tire pressure warning reset switch Removal.

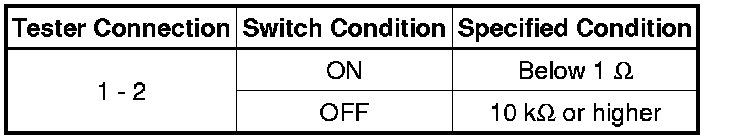

(b) Measure the resistance according to the value(s) in the table below.

Standard resistance:





NG -- REPLACE TIRE PRESSURE WARNING RESET SWITCH Removal
OK -- Continue to next step.

3. CHECK HARNESS AND CONNECTOR (RESET SWITCH - ECU AND BODY GROUND)

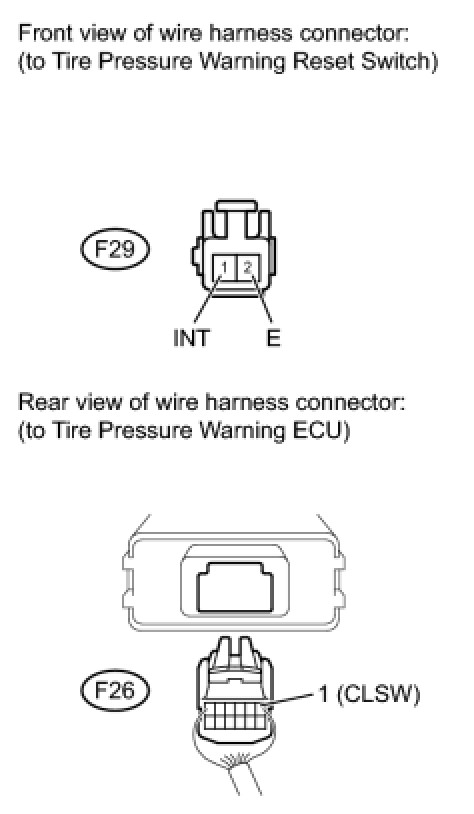

(a) Disconnect the F29 reset switch connector.





(b) Disconnect the F26 ECU connector.

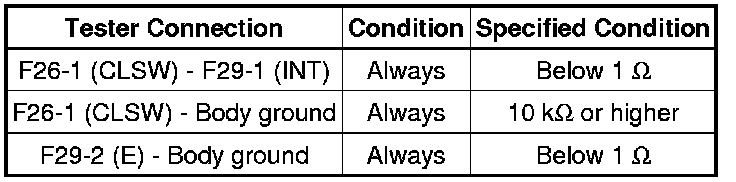

(c) Measure the resistance according to the value(s) in the table below.

Standard resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- REPLACE TIRE PRESSURE WARNING ECU Removal
