xD L4-1.8L (2ZR-FE)
>>
Repair and Diagnosis
>>
Locations
>>
Component Locations
>>
44-45 - Position of Parts In Engine Compartment
44-45 - Position of Parts In Engine Compartment

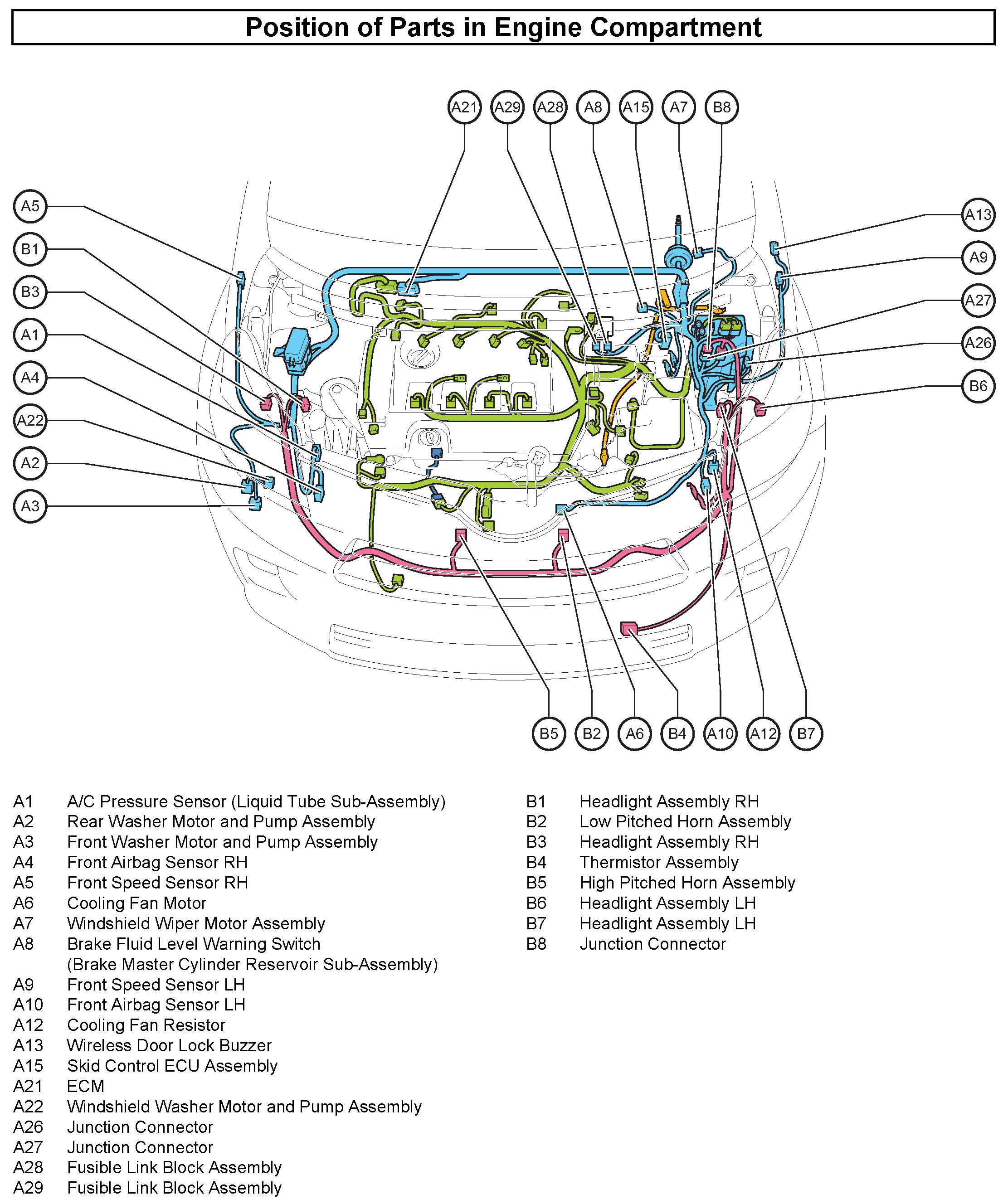

44 - Position of Parts in Engine Compartment:

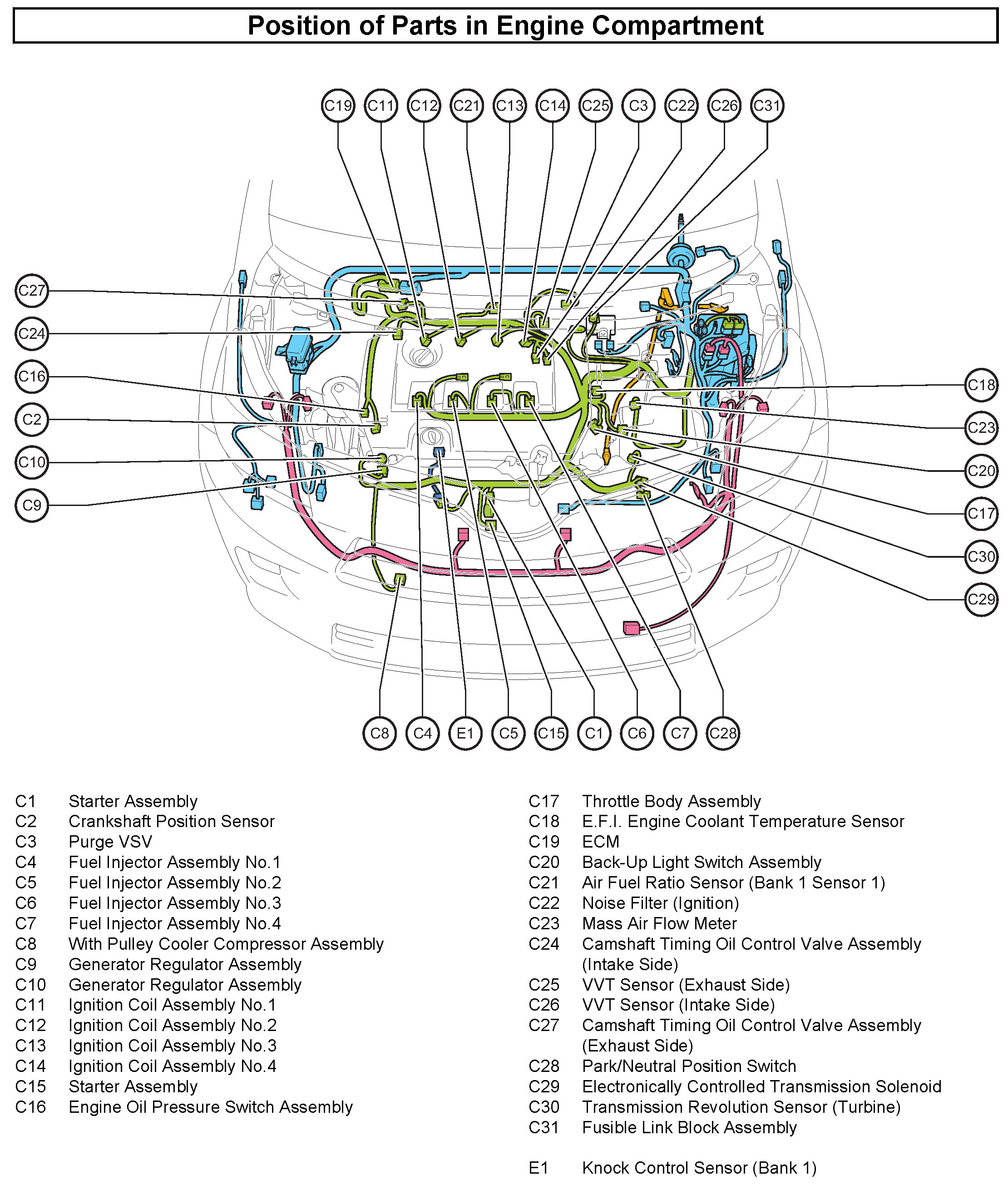

45 - Position of Parts in Engine Compartment:
