Removal

LIGHTING: REAR COMBINATION LIGHT ASSEMBLY: REMOVAL

HINT
* Use the same procedure for both the RH and LH sides.
* The procedure described below is for the LH side.

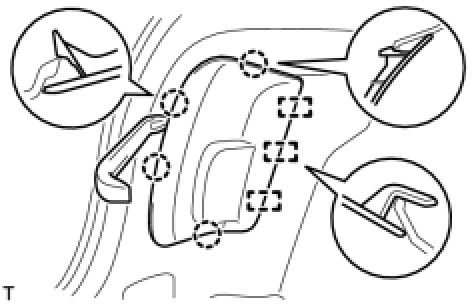

1. REMOVE REAR COMBINATION LIGHT SERVICE COVER





(a) Using a moulding remover, disengage the 4 claws and 3 guides and remove the rear combination light service cover.

2. REMOVE REAR COMBINATION LIGHT ASSEMBLY





(a) Disconnect the connector.

(b) Remove the 2 nuts.

(c) From the vehicle interior, pinch the clip by hand and remove it.





(d) Disengage the pin and remove the rear combination light.
