Installation

LIGHTING: REAR COMBINATION LIGHT ASSEMBLY: INSTALLATION

1. INSTALL REAR COMBINATION LIGHT ASSEMBLY

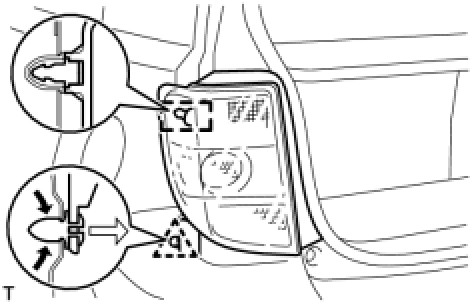

(a) Engage the clip, pin and install the rear combination light onto the vehicle.

(b) Connect the connector.

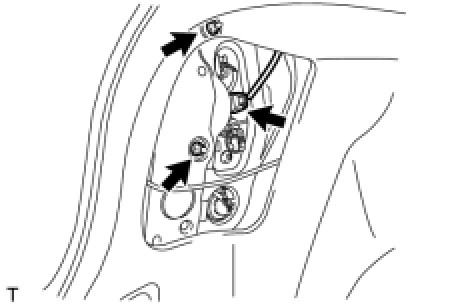

(c) Install the 2 nuts.

Torque : 3.2 Nm (32 kgf-cm, 28 in-lbf)

2. INSTALL REAR COMBINATION LIGHT SERVICE COVER

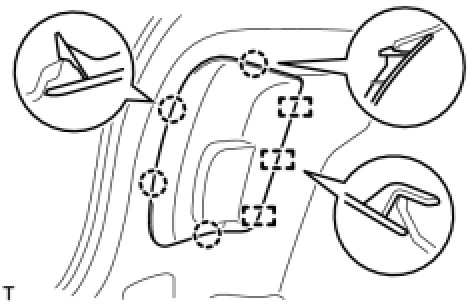

(a) Engage the 4 claws and 3 guides and install the rear combination light service cover.
