Turn Signal Light Circuit

LIGHTING: LIGHTING SYSTEM: Turn Signal Light Circuit
- Turn Signal Light Circuit

DESCRIPTION

The turn signal flasher assembly in the main body ECU turns on when it receives signals from the headlight dimmer switch integrated with the turn signal switch, causing the turn signal lights to flash.

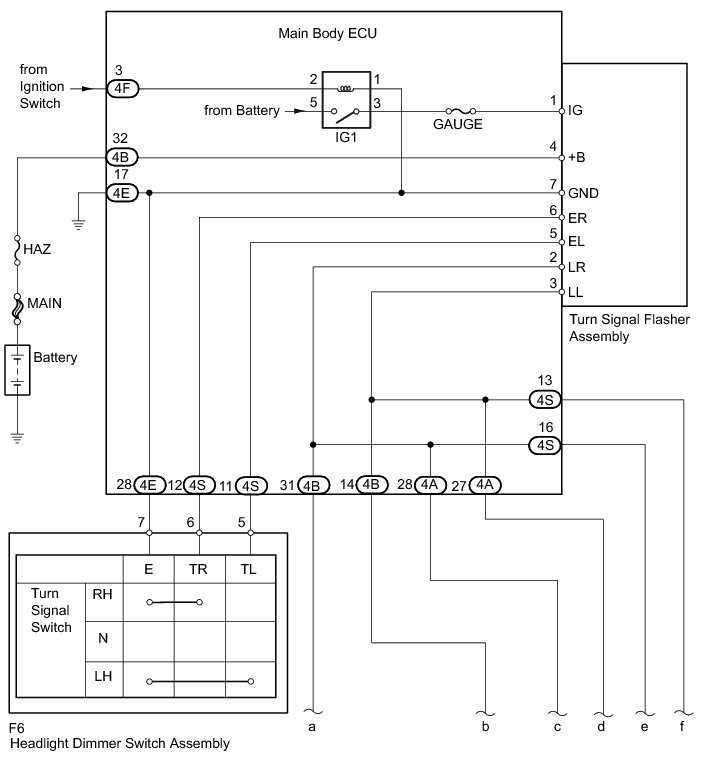

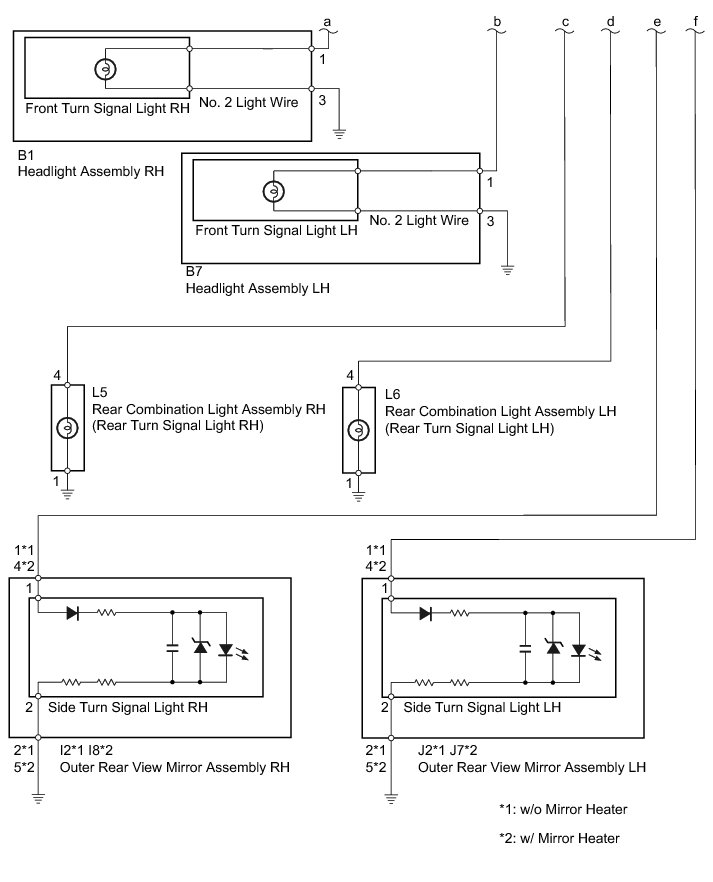

WIRING DIAGRAM









INSPECTION PROCEDURE

NOTICE:
Inspect the fuse and bulbs for circuits related to this system before performing the following inspection procedure.

PROCEDURE

1. CHECK OPERATION OF TURN SIGNAL LIGHT

(a) When the turn signal light switch is operated, check that the appropriate turn signal light flashes.

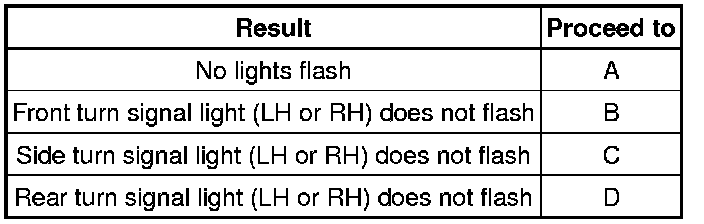

Result





B -- INSPECT HEADLIGHT ASSEMBLY (SYSTEM VOLTAGE)

C -- INSPECT SIDE TURN SIGNAL LIGHT ASSEMBLY

D -- INSPECT REAR COMBINATION LIGHT ASSEMBLY (SYSTEM VOLTAGE)
A -- Continue to next step.

2. INSPECT HEADLIGHT DIMMER SWITCH

(a) Remove the headlight dimmer switch Removal.





(b) Inspect the turn signal light switch.

(1) Measure the resistance according to the value(s) in the table below.

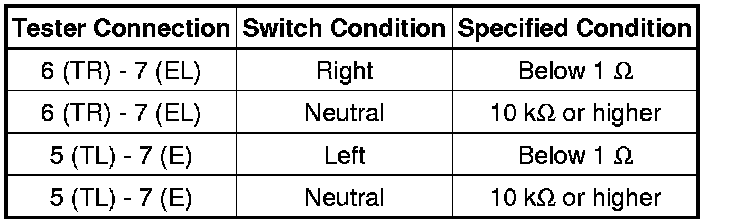

Standard Resistance:





Text in Illustration





(c) Reinstall the headlight dimmer switch.

NG -- REPLACE HEADLIGHT DIMMER SWITCH Removal
OK -- Continue to next step.

3. CHECK HARNESS AND CONNECTOR (HEADLIGHT DIMMER SWITCH - MAIN BODY ECU)

(a) Disconnect the F6 headlight dimmer switch connector.

(b) Disconnect the 4E and 4S main body ECU connectors.

(c) Measure the resistance according to the value(s) in the table below.

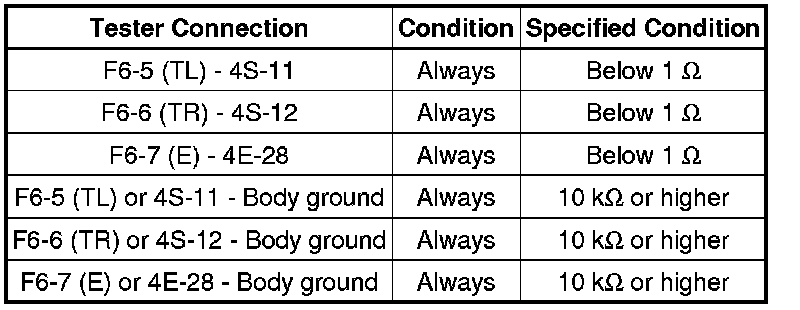

Standard Resistance:





(d) Reconnect the main body ECU connectors.

(e) Reconnect the headlight dimmer switch connector.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

4. CHECK HARNESS AND CONNECTOR (HAZ FUSE - MAIN BODY ECU)

(a) Disconnect the 4B main body ECU connector.





(b) Measure the voltage according to the value(s) in the table below.

Standard Voltage:





Text in Illustration





(c) Reconnect the main body ECU connector.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

5. CHECK HARNESS AND CONNECTOR (MAIN BODY ECU - BODY GROUND)

(a) Disconnect the 4E main body ECU connector.





(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





Text in Illustration





(c) Reconnect the main body ECU connector.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

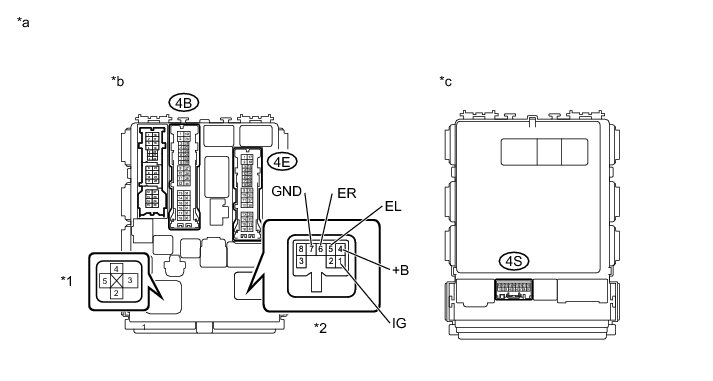

6. INSPECT MAIN BODY ECU

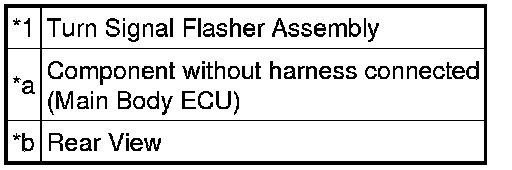

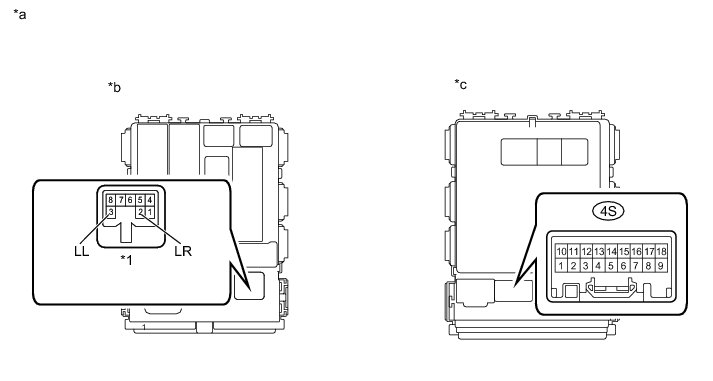

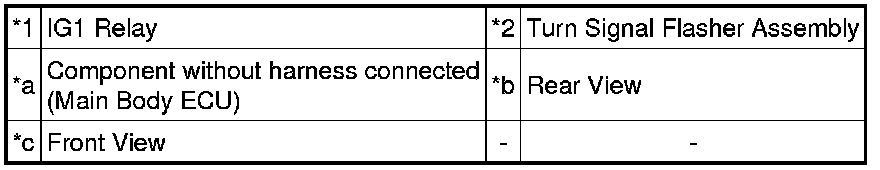

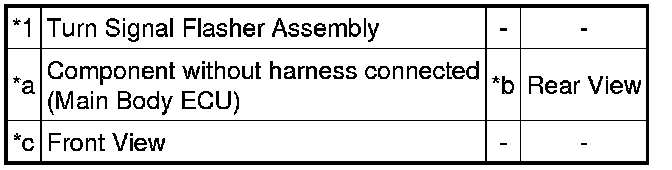

Text in Illustration





(a) Remove the main body ECU.

(b) Remove the turn signal flasher assembly from the main body ECU.

(c) Remove the IG1 relay from the main body ECU.

(d) Measure the resistance according to the value(s) in the table below.

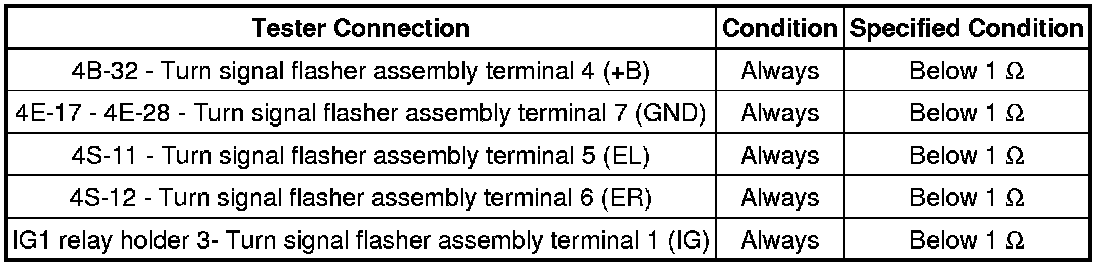

Standard Resistance:





(e) Reinstall the IG1 relay.

(f) Reinstall the turn signal flasher assembly.

(g) Reinstall the main body ECU.

NG -- REPLACE MAIN BODY ECU

OK -- REPLACE TURN SIGNAL FLASHER ASSEMBLY Removal

7. INSPECT HEADLIGHT ASSEMBLY (SYSTEM VOLTAGE)

(a) Disconnect the B1 and B7 headlight assembly connectors.

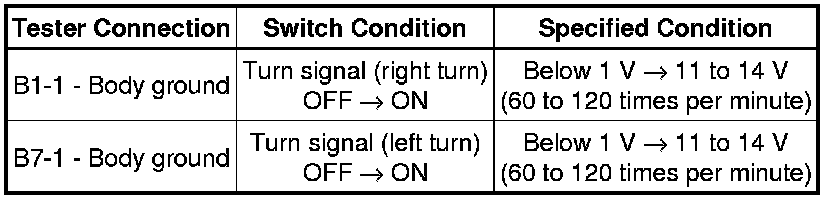

(b) Measure the voltage according to the value (s) in the table below.

Standard Voltage:





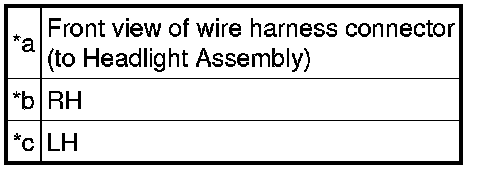

Text in Illustration





(c) Reconnect the headlight connectors.

NG -- CHECK HARNESS AND CONNECTOR (MAIN BODY ECU - HEADLIGHT ASSEMBLY)
OK -- Continue to next step.

8. CHECK HARNESS AND CONNECTOR (HEADLIGHT ASSEMBLY - BODY GROUND)

(a) Disconnect the B1 and B7 headlight assembly connectors.





(b) Measure the resistance according to the value(s) in the table below.

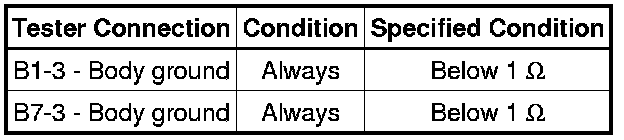

Standard Resistance:





Text in Illustration





(c) Reconnect the headlight assembly connectors.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- REPAIR OR REPLACE NO. 2 LIGHT WIRE Disassembly

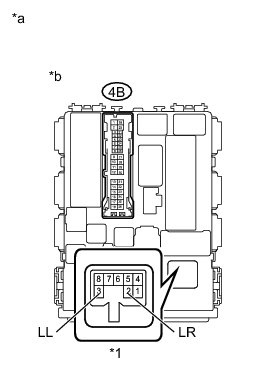

9. CHECK HARNESS AND CONNECTOR (MAIN BODY ECU - HEADLIGHT ASSEMBLY)

(a) Disconnect the B1 and B7 headlight assembly connectors.

(b) Disconnect the 4B main body ECU connector.

(c) Measure the resistance according to the value(s) in the table below.

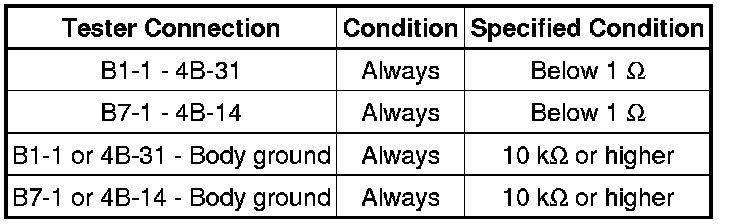

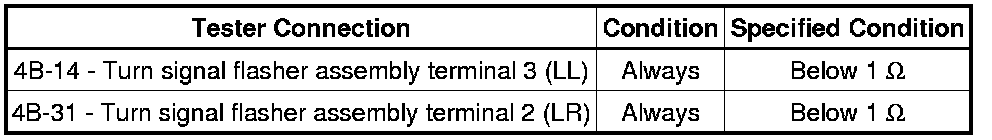

Standard Resistance:





(d) Reconnect the main body ECU connector.

(e) Reconnect the headlight assembly connectors.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

10. INSPECT MAIN BODY ECU

(a) Remove the main body ECU.





(b) Remove the turn signal flasher assembly from the main body ECU.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





Text in Illustration





(d) Reinstall the turn signal flasher assembly.

(e) Reinstall the main body ECU.

NG -- REPLACE MAIN BODY ECU

OK -- REPLACE TURN SIGNAL FLASHER ASSEMBLY Removal

11. INSPECT SIDE TURN SIGNAL LIGHT ASSEMBLY

(a) Remove the side turn signal light assembly from the outer rear view mirror assembly Removal.





(b) Apply battery voltage to the terminals and check that the side turn signal light comes on.

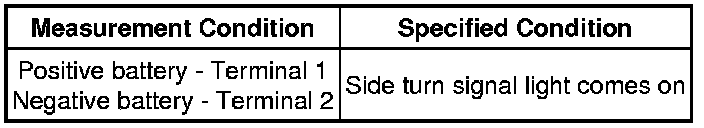

OK:





Text in Illustration





(c) Reinstall the side turn signal light assembly.

NG -- REPLACE SIDE TURN SIGNAL LIGHT ASSEMBLY Removal
OK -- Continue to next step.

12. INSPECT OUTER REAR VIEW MIRROR ASSEMBLY (SYSTEM VOLTAGE)

(a) w/o Mirror Heater





(1) Disconnect the I2 and J2 outer rear view mirror assembly connectors.

(2) Measure the voltage according to the value(s) in the table below.

Standard Voltage:





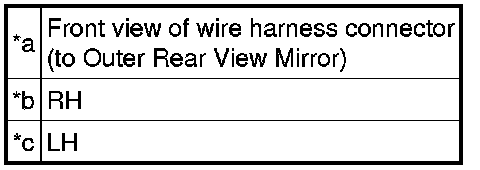

Text in Illustration





(3) Reconnect the outer rear view mirror assembly connectors.

(b) w/ Mirror Heater





(1) Disconnect the I8 and J7 outer rear view mirror assembly connectors.

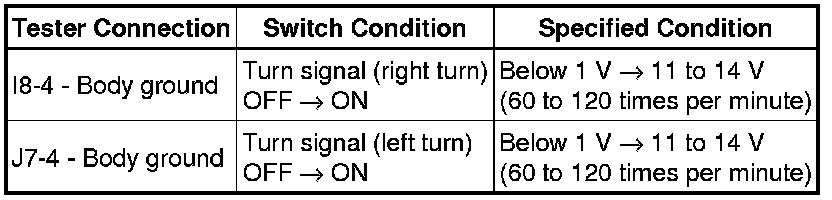

(2) Measure the voltage according to the value(s) in the table below.

Standard Voltage:





Text in Illustration





(3) Reconnect the outer rear view mirror assembly connectors.

NG -- CHECK HARNESS AND CONNECTOR (OUTER REAR VIEW MIRROR ASSEMBLY - MAIN
BODY ECU)
OK -- Continue to next step.

13. CHECK HARNESS AND CONNECTOR (OUTER REAR VIEW MIRROR ASSEMBLY - BODY GROUND)

(a) w/o Mirror Heater

(1) Disconnect the I2 and J2 outer rear view mirror assembly connectors.





(2) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





Text in Illustration





(3) Reconnect the outer rear view mirror assembly connectors.

(b) w/ Mirror Heater

(1) Disconnect the I8 and J7 outer rear view mirror assembly connectors.





(2) Measure the resistance according to the value(s) in the table below.

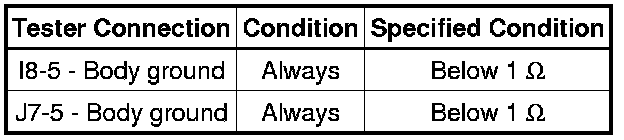

Standard Resistance:





Text in Illustration





(3) Reconnect the outer rear view mirror assembly connectors.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- REPLACE OUTER REAR VIEW MIRROR ASSEMBLY Removal

14. CHECK HARNESS AND CONNECTOR (OUTER REAR VIEW MIRROR ASSEMBLY - MAIN
BODY ECU)

(a) w/o Mirror Heater

(1) Disconnect the I2 and J2 outer rear view mirror assembly connectors.

(2) Disconnect the 4S main body ECU connector.

(3) Measure the resistance according to the value(s) in the table below.

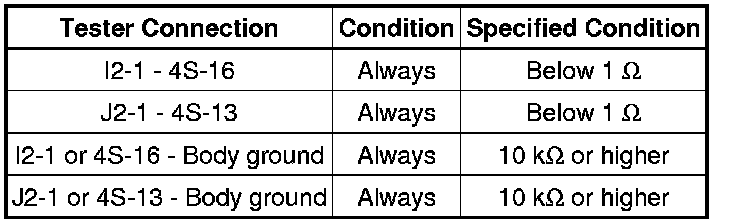

Standard Resistance:





(4) Reconnect the main body ECU connector.

(5) Reconnect the outer rear view mirror assembly connectors.

(b) w/ Mirror Heater

(1) Disconnect the I8 and J7 outer rear view mirror assembly connectors.

(2) Disconnect the 4S main body ECU connector.

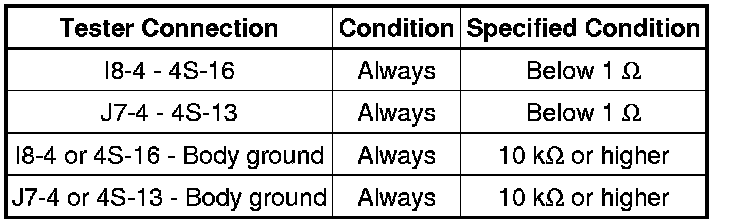

(3) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





(4) Reconnect the main body ECU connector.

(5) Reconnect the outer rear view mirror assembly connectors.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

15. INSPECT MAIN BODY ECU





Text in Illustration





(a) Remove the main body ECU.

(b) Remove the turn signal flasher assembly from the main body ECU.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





(d) Reinstall the turn signal flasher assembly.

(e) Reinstall the main body ECU.

NG -- REPLACE MAIN BODY ECU

OK -- REPLACE TURN SIGNAL FLASHER ASSEMBLY Removal

16. INSPECT REAR COMBINATION LIGHT ASSEMBLY (SYSTEM VOLTAGE)

(a) Disconnect the L5 and L6 rear combination light assembly connectors.





(b) Measure the voltage according to the value(s) in the table below.

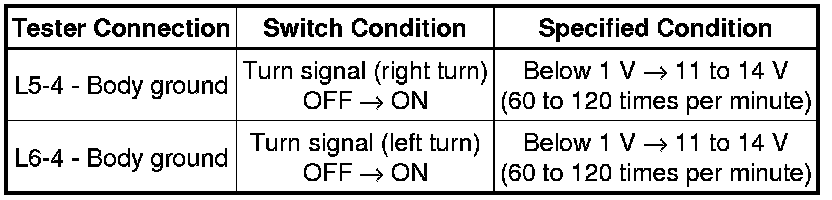

Standard Voltage:





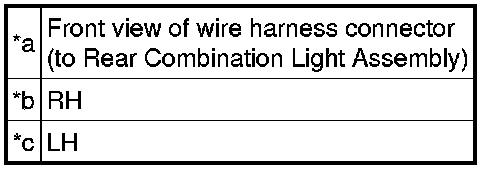

Text in Illustration





(c) Reconnect the rear combination light assembly connectors.

NG -- CHECK HARNESS AND CONNECTOR (MAIN BODY ECU - REAR TURN SIGNAL LIGHT BULB)
OK -- Continue to next step.

17. CHECK HARNESS AND CONNECTOR (REAR TURN SIGNAL LIGHT - BODY GROUND)

(a) Disconnect the L5 and L6 rear combination light assembly connectors.





(b) Measure the resistance according to the value(s) in the table below.

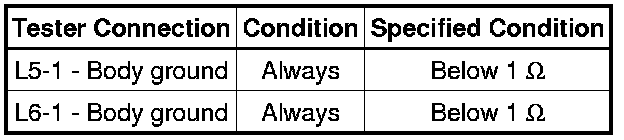

Standard Resistance:





Text in Illustration





(c) Reconnect the rear combination light assembly connectors.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- REPLACE REAR COMBINATION LIGHT ASSEMBLY Removal

18. CHECK HARNESS AND CONNECTOR (MAIN BODY ECU - REAR TURN SIGNAL LIGHT BULB)

(a) Disconnect the L5 and L6 rear combination light assembly connectors.

(b) Disconnect the 4A main body ECU connector.

(c) Measure the resistance according to the value(s) in the table below.

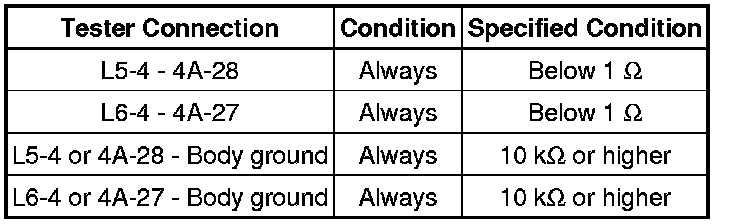

Standard Resistance:





(d) Reconnect the main body ECU connector.

(e) Reconnect the rear combination light assembly connectors.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

19. INSPECT MAIN BODY ECU

(a) Remove the main body ECU.





(b) Remove the turn signal flasher assembly from the main body ECU.

(c) Measure the resistance according to the value(s) in the table below.

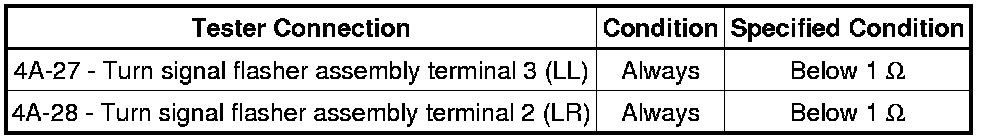

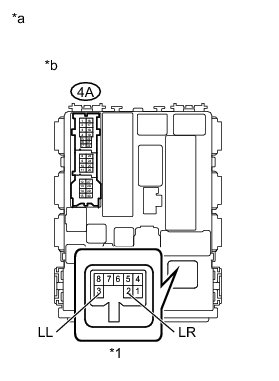

Standard Resistance:





Text in Illustration





(d) Reinstall the turn signal flasher assembly.

(e) Reinstall the main body ECU.

NG -- REPLACE MAIN BODY ECU

OK -- REPLACE TURN SIGNAL FLASHER ASSEMBLY Removal
